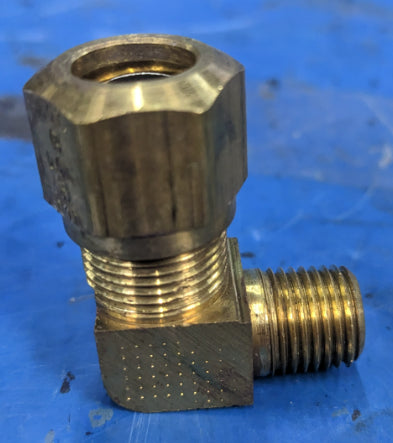

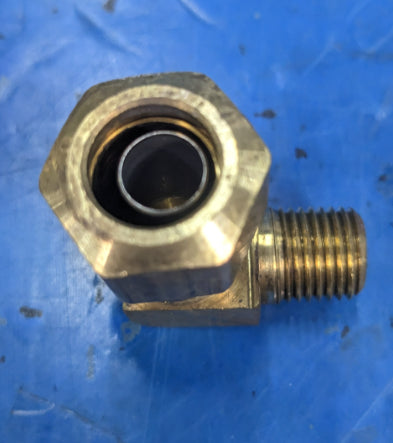

Male Elbow 90 Deg 1/2” x 1/4-18 Air Brake DOT Compression Tube Fitting 1469X8X4 269NTA84

Descripción

WHAT IS IT:

Male Elbow 90 Deg 1/2” x 1/4-18 Air Brake DOT Compression Tube Fitting 1469X8X4 269NTA84

****************************************

DETAILS - SPECS:

Male Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPTF, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/2 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 13/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/4 in, Thread Size A 11/16-20, Thread Size B 1/4-18, System of Measurement Imperial, Standards DOT FMVSS 571.106, SAE

MATERIAL COPPER ALLOY OVERALL

MAXIMUM OPERATING PRESSURE 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

MAXIMUM OPERATING TEMP 200.0 DEG FAHRENHEIT SINGLE RESPONSE

CONNECTION TYPE THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END

CONNECTION STYLE B66 FLARELESS 1ST END B67B PLAIN 2ND END

SEAT ANGLE 20.0 DEGREES 1ST END

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES 1ST END

THREAD SERIES DESIGNATOR UNS 1ST END NPTF 2ND END

NOMINAL THREAD SIZE 0.688 INCHES 1ST END 0.250 INCHES 2ND END

THREAD QUANTITY PER INCH 20 1ST END

THREAD CLASS 3A 1ST END

LEG LENGTH 0.870 INCHES NOMINAL 1ST END 1.000 INCHES NOMINAL 2ND END

FLOW ANGLE 90.0 DEGREES

FURNISHED ITEMS AND QUANTITY 1 TUBE COUPLING NUT AND 1 COUPLING SLEEVE

SPECIFICATION/STANDARD DATA 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

****************************************

CONDITION:

NEW

****************************************

BRAND:

LOCKHEED MARTIN

****************************************

MPN:

4730-01-115-7362

****************************************

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

1469X8X4, 269NTA84, 269NTA-8-4, 283150, 29NTA84, 29NTA-8-4, 4469F08X04, 4-469-F-08X04, 001813V010, 8-4 100202BA, 84100202BA, J246, 4730-01-115-7362, 01-115-7362, 4730011157362, 011157362

001813V010 59556 KOVATCH CORP.

1469X8X4 01276 EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS

1469X8X4 79470 DANA CORP WEATHERHEAD DIV

269NTA-8-4 93061 PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV

283150 06853 BENDIX COMMERCIAL VEHICLE SYSTEMS LLC

29NTA-8-4 93061 PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV

4-469-F-08X04 30327 IMPERIAL

8-4 100202BA 0FW39 BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP

8-4 100202BA 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

J246 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

****************************************

APPLICATION - USED ON IN - WHAT IS IT FOR:

• Heavy duty truck
• Trailer
• Mobile

• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls


****************************************

Male Elbow 90 Deg 1/2” x 1/4-18 Air Brake DOT Compression Tube Fitting 1469X8X4 269NTA84

Forma del producto
Recogida gratuita en nuestra(s) tienda(s)

464 en stock ships next business day  Weekdays
Monday through Friday we ship out all orders placed prior to 8 am.
Weekends
We are not open and do not ship any orders over the weekend (or during holidays).
International
Depending on where you’re located, we offer many shipping options. Please contact us for more details.

$7.00

    • Guaranteed secure & safe checkout.

      shop pay

      Descripción

      WHAT IS IT:

      Male Elbow 90 Deg 1/2” x 1/4-18 Air Brake DOT Compression Tube Fitting 1469X8X4 269NTA84

      ****************************************

      DETAILS - SPECS:

      Male Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPTF, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/2 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 13/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/4 in, Thread Size A 11/16-20, Thread Size B 1/4-18, System of Measurement Imperial, Standards DOT FMVSS 571.106, SAE

      MATERIAL COPPER ALLOY OVERALL

      MAXIMUM OPERATING PRESSURE 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

      MAXIMUM OPERATING TEMP 200.0 DEG FAHRENHEIT SINGLE RESPONSE

      CONNECTION TYPE THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END

      CONNECTION STYLE B66 FLARELESS 1ST END B67B PLAIN 2ND END

      SEAT ANGLE 20.0 DEGREES 1ST END

      NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES 1ST END

      THREAD SERIES DESIGNATOR UNS 1ST END NPTF 2ND END

      NOMINAL THREAD SIZE 0.688 INCHES 1ST END 0.250 INCHES 2ND END

      THREAD QUANTITY PER INCH 20 1ST END

      THREAD CLASS 3A 1ST END

      LEG LENGTH 0.870 INCHES NOMINAL 1ST END 1.000 INCHES NOMINAL 2ND END

      FLOW ANGLE 90.0 DEGREES

      FURNISHED ITEMS AND QUANTITY 1 TUBE COUPLING NUT AND 1 COUPLING SLEEVE

      SPECIFICATION/STANDARD DATA 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

      ****************************************

      CONDITION:

      NEW

      ****************************************

      BRAND:

      LOCKHEED MARTIN

      ****************************************

      MPN:

      4730-01-115-7362

      ****************************************

      CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

      1469X8X4, 269NTA84, 269NTA-8-4, 283150, 29NTA84, 29NTA-8-4, 4469F08X04, 4-469-F-08X04, 001813V010, 8-4 100202BA, 84100202BA, J246, 4730-01-115-7362, 01-115-7362, 4730011157362, 011157362

      001813V010 59556 KOVATCH CORP.

      1469X8X4 01276 EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS

      1469X8X4 79470 DANA CORP WEATHERHEAD DIV

      269NTA-8-4 93061 PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV

      283150 06853 BENDIX COMMERCIAL VEHICLE SYSTEMS LLC

      29NTA-8-4 93061 PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV

      4-469-F-08X04 30327 IMPERIAL

      8-4 100202BA 0FW39 BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP

      8-4 100202BA 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

      J246 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

      ****************************************

      APPLICATION - USED ON IN - WHAT IS IT FOR:

      • Heavy duty truck
      • Trailer
      • Mobile

      • Air brakes
      • Air tanks
      • Air ride
      • Sliders
      • Tire inflation
      • Primary & secondary air lines
      • Cab controls


      ****************************************
