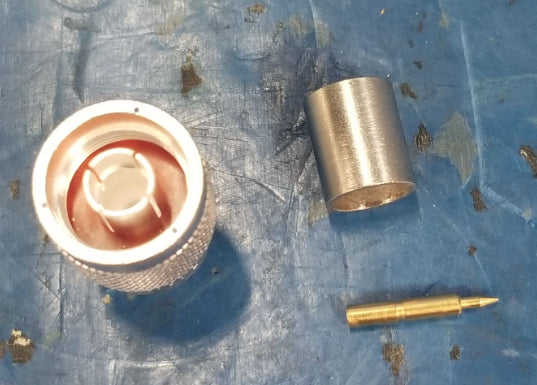

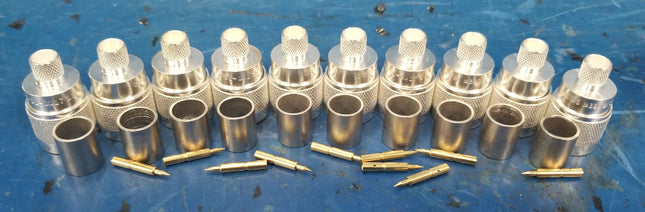

(10) PCS - N-Type Series RF Coaxial Connector Crimp Plug for RG-213/U M39012/01-0017

99 en stock ships next business day Weekdays
Monday through Friday we ship out all orders placed prior to 8 am.
Weekends
We are not open and do not ship any orders over the weekend (or during holidays).
International
Depending on where you’re located, we offer many shipping options. Please contact us for more details.

WHAT IS IT: (10) PCS - N-Type Series RF Coaxial Connector Crimp Plug for RG-213/U M39012/01-0017 **************************************** DETAILS - SPECS: N Series Connectors Delta Electronics Mfg Corp N Series Connectors offer 50Ω impedance and 5/8"-24 threaded coupling. These medium-size connectors are ideal for use with cables ranging from 0.350" to 0.450" in diameter and available for flexible and semi-rigid cables with diameters from 0.085" to more than 1". The N series is available with silver, nickel, or albaloy (tri-metal alloy) plating. Other features include DC to 11GHz frequency range, 1000VRMS voltage rating, 2500VRMS dielectric withstanding voltage, and 5000MΩ insulation resistance. Delta Electronics Mfg Corp N Series Connectors conform to MIL-PRF-39012 standards. BODY STYLE 5D STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH 2.000 INCHES NOMINAL OVERALL DIAMETER 0.827 INCHES NOMINAL CONNECTOR LOCKING METHOD INTERNALLY THREADED COUPLING RING SHELL TYPE SOLID SHELL MATERIAL COPPER ALLOY SHELL SURFACE TREATMENT SILVER AND COPPER SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE MATING END QUANTITY 1 CONTACT POSITION ARRANGEMENT STYLE ABCE N SINGLE MATING END INSERT MATERIAL PLASTIC FLUORINATED ETHYLENE PROPYLENE OR PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END INCLUDED CONTACT QUANTITY 1 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS 50.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION CORROSION RESISTANT AND VIBRATION RESISTANT AND MOISTURE RESISTANT AND THERMAL SHOCK RESISTANT TEST DATA DOCUMENT 81349-MIL-C-39012 SPECIFICATION SPECIFICATION/STANDARD DATA 81349-MIL-C-39012/1 GOVERNMENT SPECIFICATION III PRECIOUS MATERIAL SILVER AND GOLD III PRECIOUS MATERIAL AND WEIGHT 0.100 SILVER GRAINS, TROY AND 0.005 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION BODY SURFACE SILVER AND CONTACT SURFACE GOLD MANUFACTURERS CODE 81349 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-39012/01 MANUFACTURERS CODE 81349 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M39012/01-0017 **************************************** CONDITION: BRAND NEW **************************************** BRAND: DELTA ELECTRONICS **************************************** MPN: 1103002A00E-003 Mouser #: 160-1103002A00E-003 Part # Aliases: M39012/01-0017 **************************************** CROSSOVER - INTERCHANGE - COMPATIBLE WITH: 5935-01-112-4809, M39012/01-0017, M39012/01-502, M39012010017, M3901201502, MIL-C-39012/01, MILC3901201, 824340, 82-4340, 5935-01-112-4809, 01-112-4809, 5935011124809, 011124809 **************************************** APPLICATION - USED ON IN - WHAT IS IT FOR: AMPHENOL CORP SPECTRA-STRIP/ITD B-52 ADVANCED AIR TRAFFIC CONTR. & LAND. SYS AIR COMBAT MANEUVERING INSTRUMENTATION ( AIRCRAFT, F-16 ****************************************
