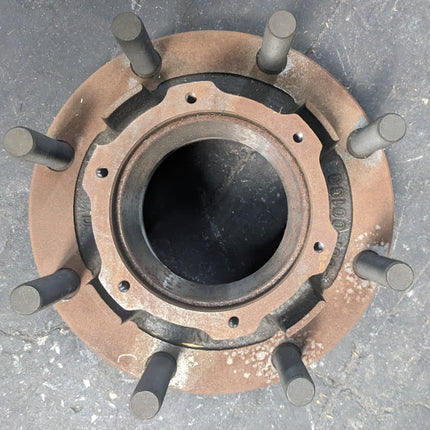

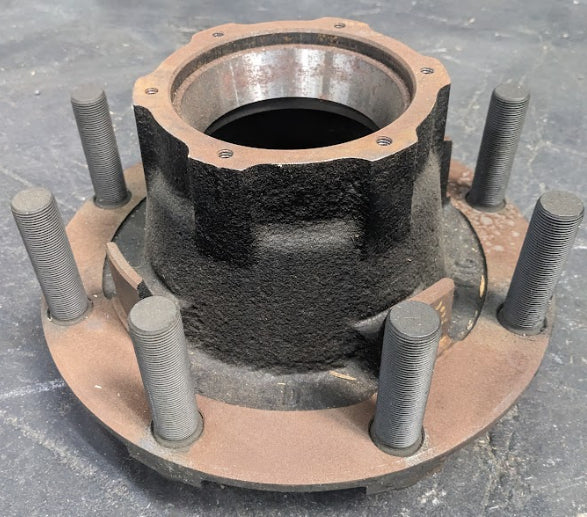

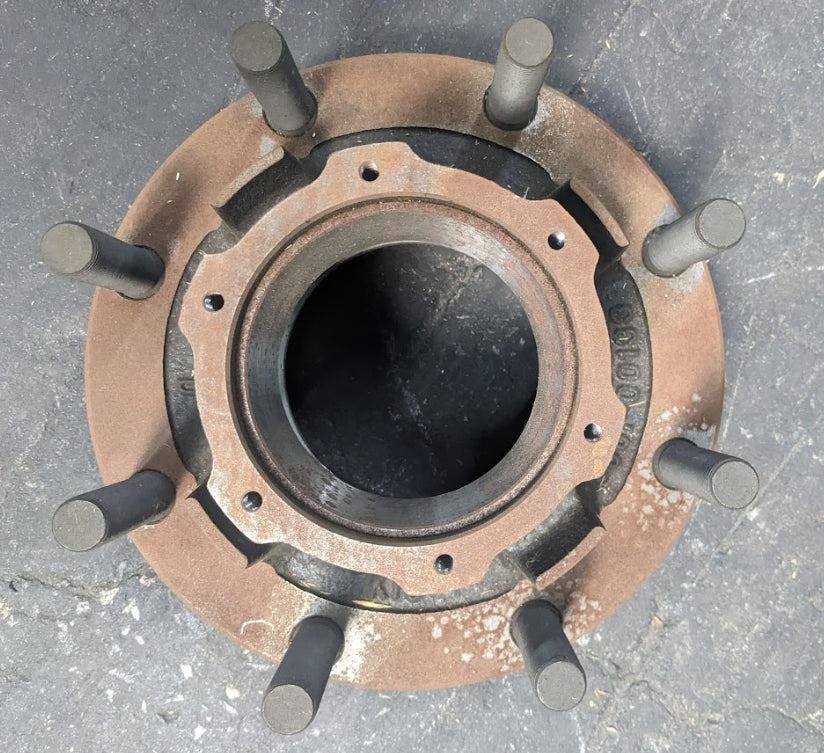

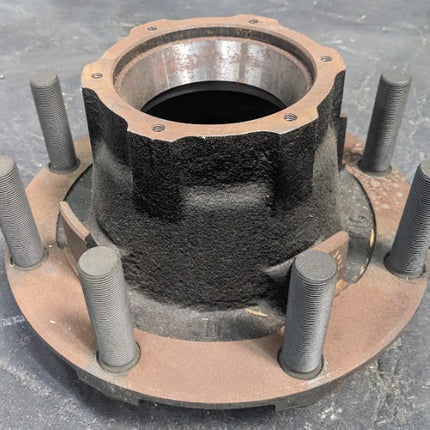

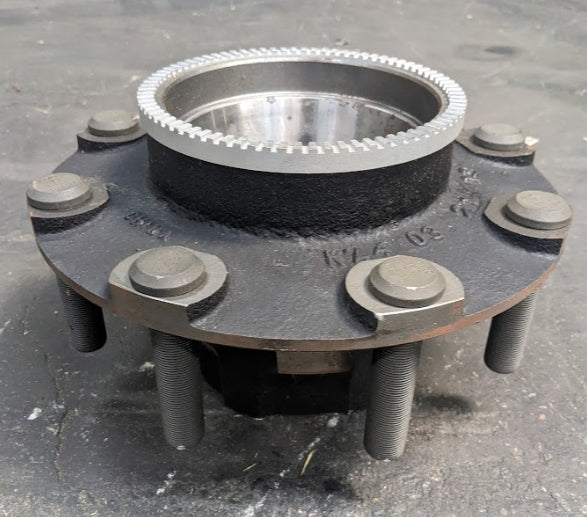

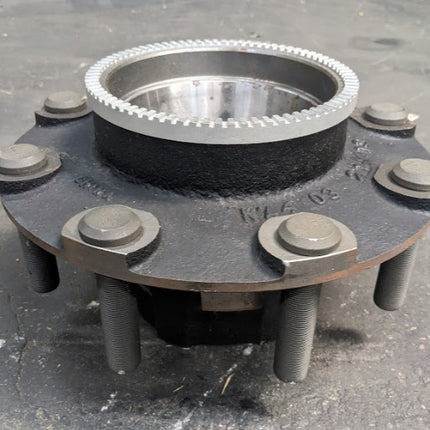

Accuride KIC HUB-00133T Disc Wheel Hub N Spindle 8 Studs UNI M22 x 3.97 ABS

WHAT IS IT:

Accuride KIC HUB-00133T Disc Wheel Hub N Spindle 8 Studs UNI M22 x 3.97 ABS

****************************************

DETAILS - SPECS:

Hub Only Assy N 8-Std Uni M22 X 3.97 Abs

HUB 8 STUD BOLT CIRCLE 275MM

A.Wheel Stud/Rim Bolt Circle: 10.83

B.Bearing Cup Spacing: 3.34

C.Wheel Mount Offset: 0.29

D.Overall Length: 7.09

E.Seal Bore Dia: 6

F.Drive/Hub Cap Bolt Circle: 5.5

G.Drive/Hub Cap Hole Pattern: (6) .31-18

H.Rotor Mount Offset:

J.Drum/Rotor Pilot Dia: 9

K.Spoke Length:

L.Spoke Wheel Dia:

Material: Ductile Iron

Captive To:

SAE Spindle: N - [IB]:HM218248/HM218210 [OB]:HM212049/HM212011

Wheel Type: Disc

Hub Mounting: Outboard

Finished Weight: 38.00

Wheel/Rim Bolt Studs No: 8

Inner Bearing Cone: HM218248

Inner Bearing Cup: HM218210

Outer Bearing Cone: HM212049

Outer Bearing Cup: HM212011

Measurement Sys: Imperial

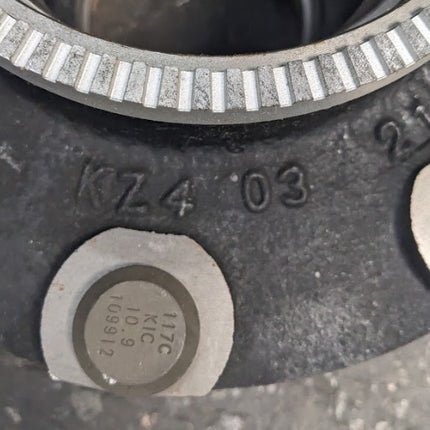

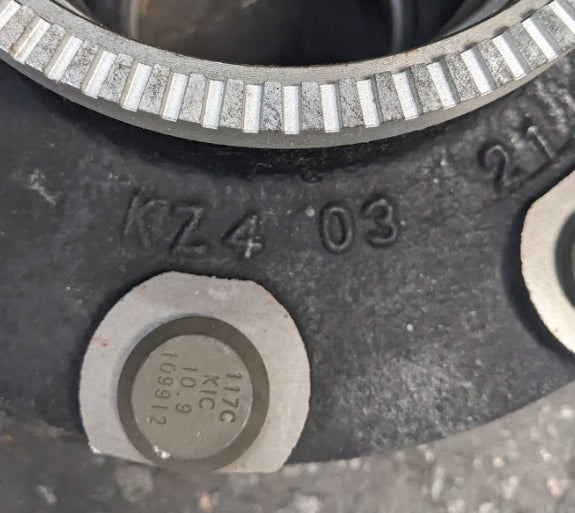

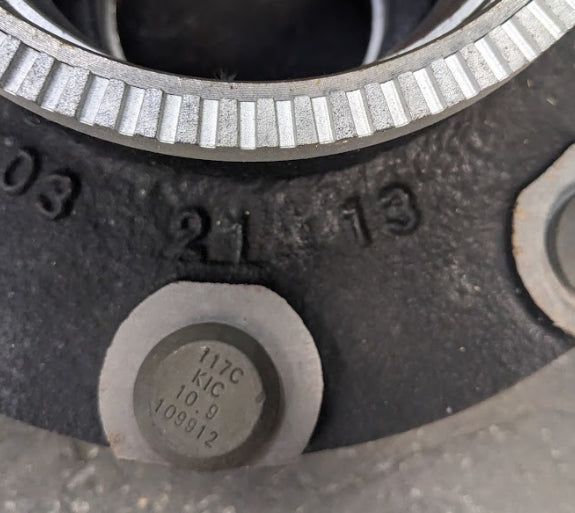

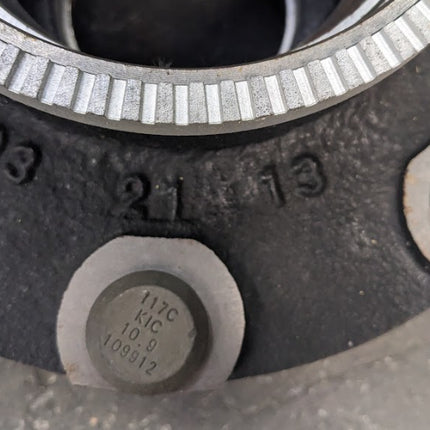

Special Information: 80-tooth ABS tone ring installed

****************************************

CONDITION:

NEW

****************************************

BRAND:

KIC

****************************************

MPN:

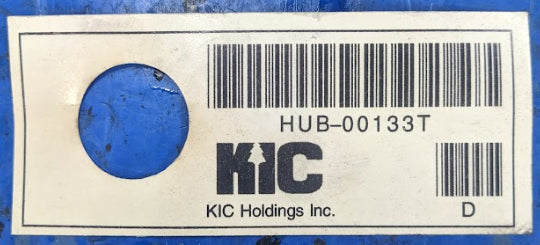

HUB-00133T

****************************************

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

GUNITE HT796RC

****************************************

APPLICATION - USED ON IN - WHAT IS IT FOR:

ON HIGHWAY

****************************************
