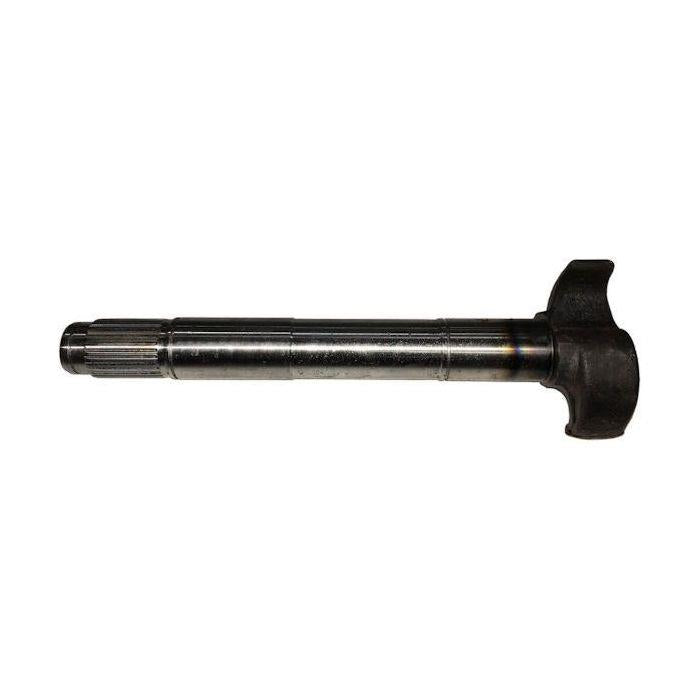

Trailer Axle RH Camshaft 20-13/32" Length 28 Spline Euclid E-5509E-5509
Axle Trailer Brake Diameter 16.50 in. Brake Hardware Kit E2769HD Brake Type Q Plus Bushing Journal Length 1.97 in. Camshaft Repair Kit E9078 (Press-In Spider Bushing); E9079HD (Bolt-On Bushing) Camshaft Spline Count 28 Camshaft Spline Diameter 1.50 in. Effective Length 20.41 in. Head Type 11 Left or Right RH Notes Can be used with cast or fabricated spiders and all spider bushings. E-9075 Washer must be used when using these camshafts with nylon or metal press-in spider bushings. OE Mfg. Meritor Paired Camshaft E5508 VMRS Code 013-017-004 Features & Benefits For Meritor Trailer Axles with 16-1/2” Brakes, 1-1/2” Diameter, Nominal Head Dim. 1-3/16”, 28 Spline Double snap-ring groove under head Head End RH Length 20-13/32" Axle Type Trailer Axle Spline Count 28 Diameter 1-1/2" Nominal Head Dimension 1-3/16"
