Roller Chain Steel 18” Double Dual Row 11669856 5 Ton Truck 3020-01-216-2332 NSN

3020012162332
  • $49.99


= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

***WHAT IS IT**

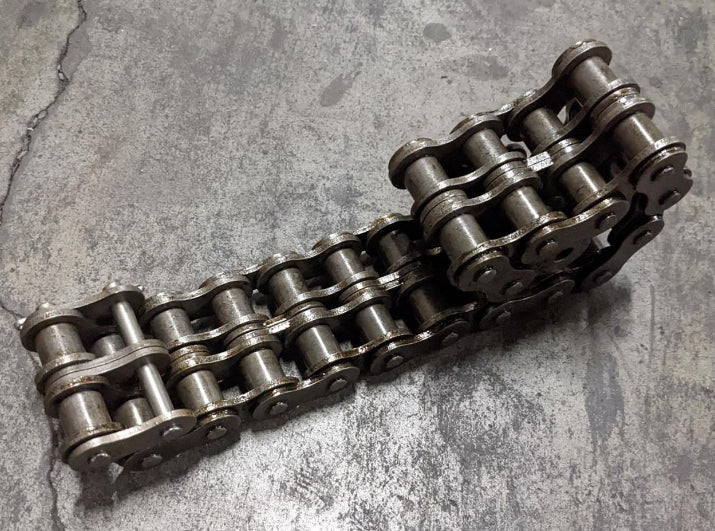

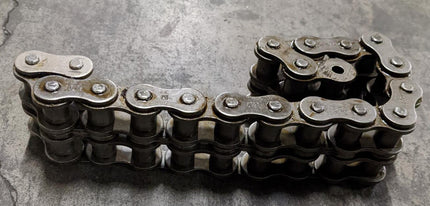

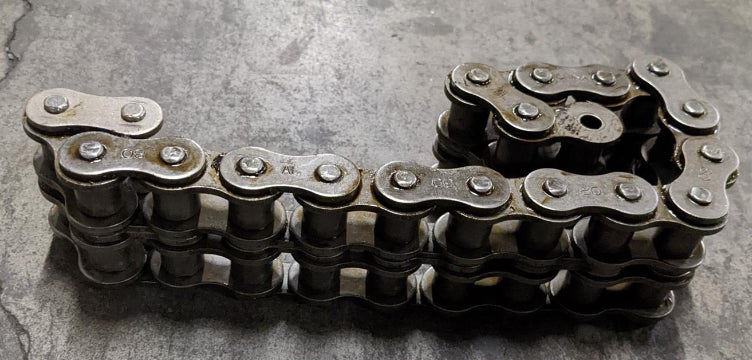

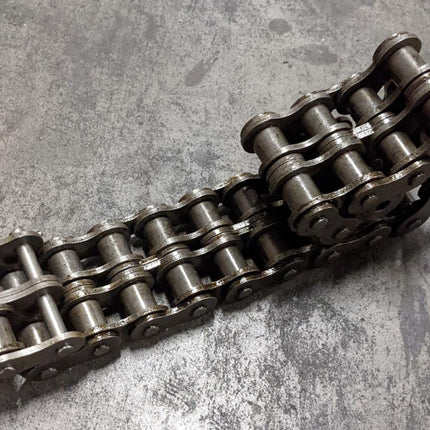

Roller Chain Steel 18” Double Dual Row 11669856 5 Ton Truck 3020-01-216-2332 NSN

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

***DETAILS***

MATERIAL STEEL

FIRST CHAIN LINK STYLE ROLLER

FIRST CHAIN LINK PLATE NOMINAL THICKNESS 0.1250 INCHES

FIRST CHAIN LINK ROLLER NOMINAL DIAMETER 0.6250 INCHES

FIRST CHAIN LINK NOMINAL WIDTH BETWEEN PLATES 0.6250 INCHES

FIRST CHAIN LINK PLATE WIDTH 0.950 INCHES NOMINAL

SECOND CHAIN LINK STYLE PIN

SECOND CHAIN LINK PLATE NOMINAL THICKNESS 0.1250 INCHES

SECOND CHAIN LINK PIN NOMINAL DIAMETER 0.3120 INCHES

SECOND CHAIN LINK NOMINAL WIDTH BETWEEN PLATES 0.6250 INCHES

SECOND CHAIN LINK PLATE WIDTH 0.820 INCHES NOMINAL

LINK ROW QUANTITY 2

PIN FASTENING METHOD COTTER PIN

EFFECTIVE LENGTH 1.5000 FEET NOMINAL

SPM7LX-08-D-9021

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

***CONDITION***

NEW

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

***BRAND***

ALLIED LOCKE

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

***NUMBER***

11669856

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

***CROSSOVER - INTERCHANGE - COMPATIBLE WITH***

11669856, 3020-01-216-2332, 01-216-2332, 3020012162332, 012162332

= = = = = = = = = = = = = = = = = = = = =

***APPLICATION***

U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM TRUCK, 5-TON M939 SERIES TRUCK, 5-TON M939 SERIES TRUCK, WRECKER, 5-TON (M936)

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
