WHAT IS IT:

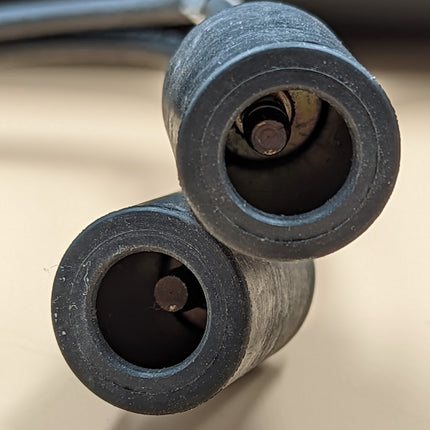

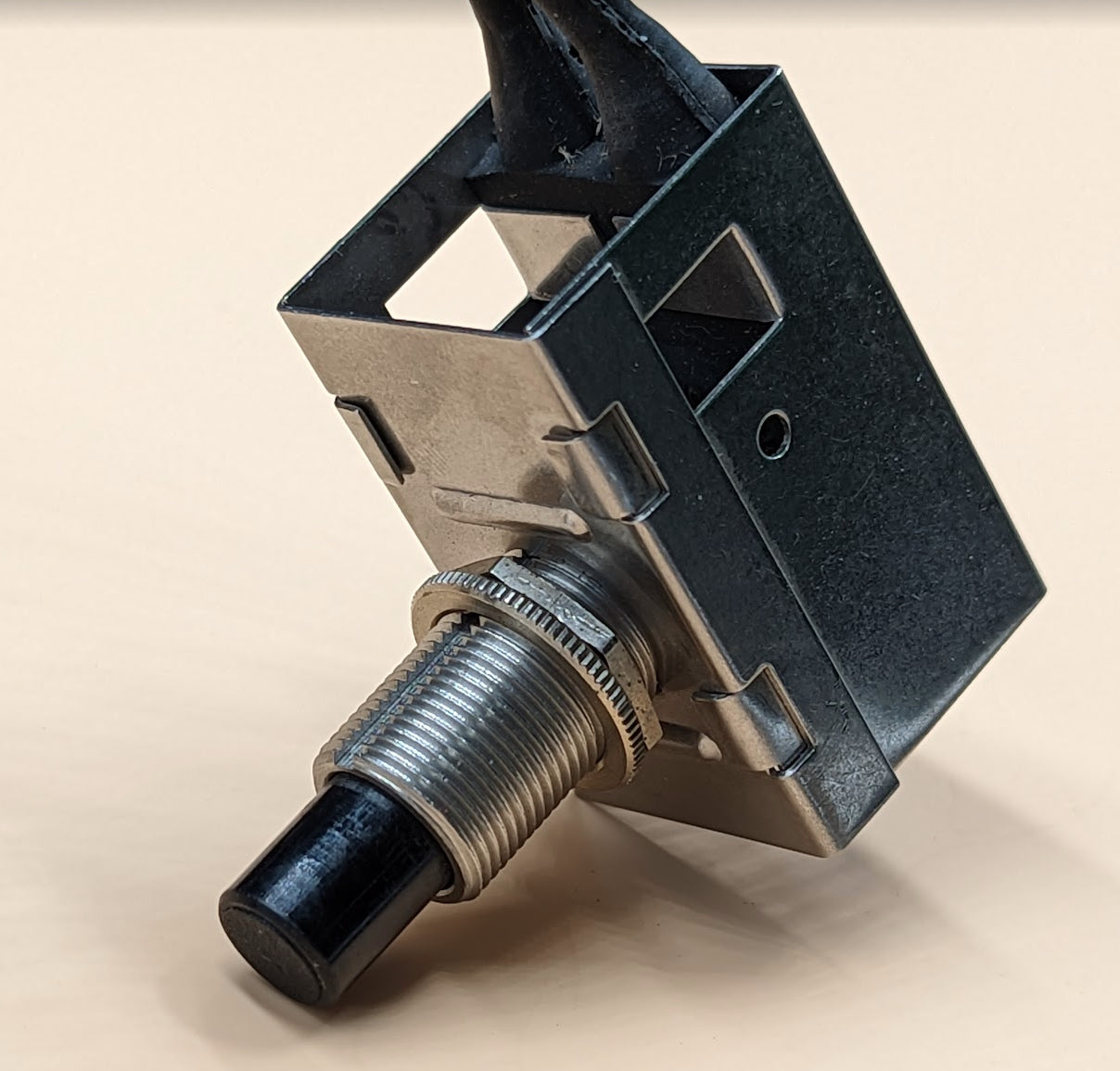

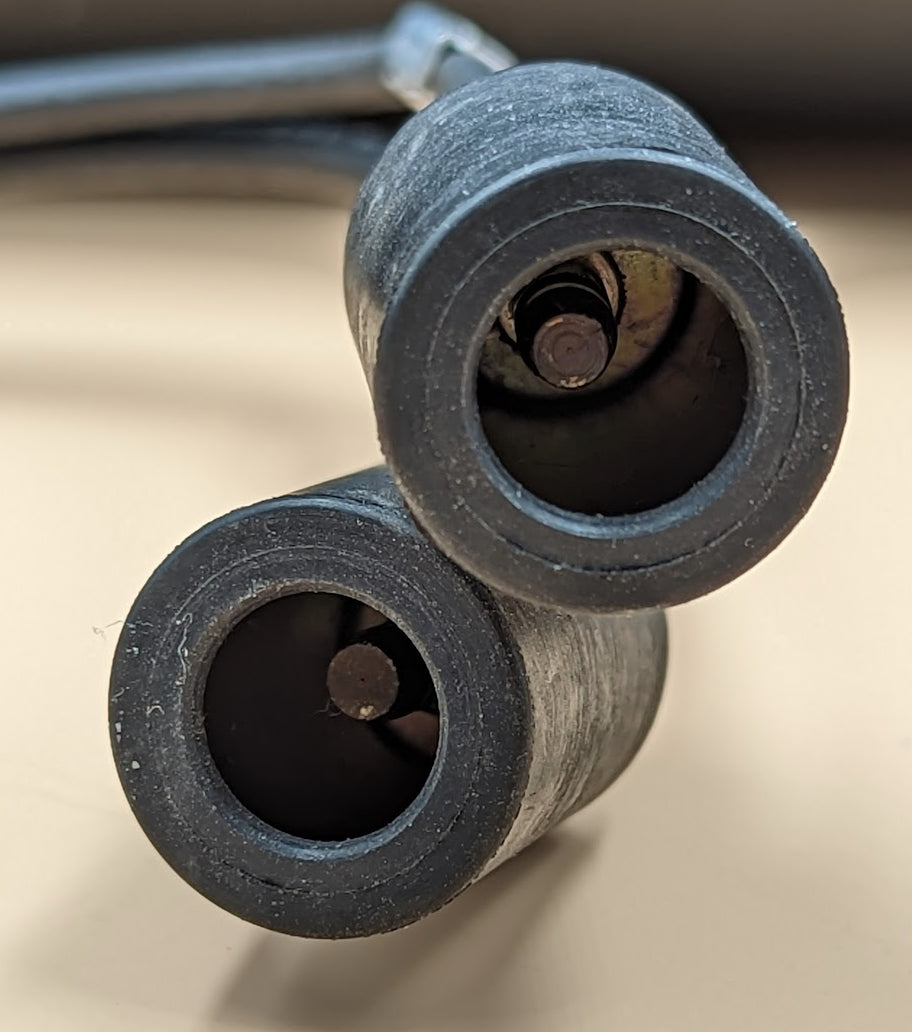

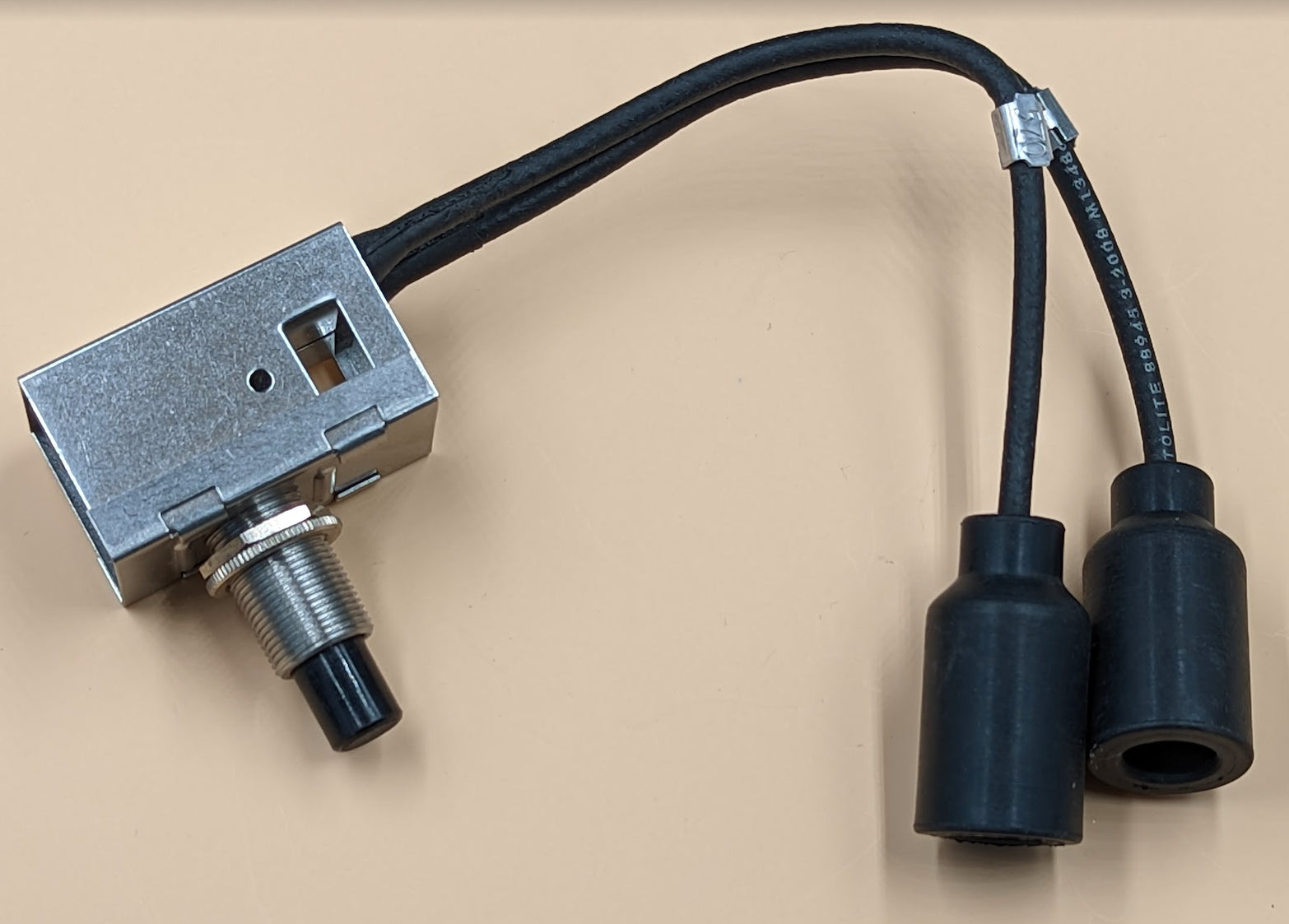

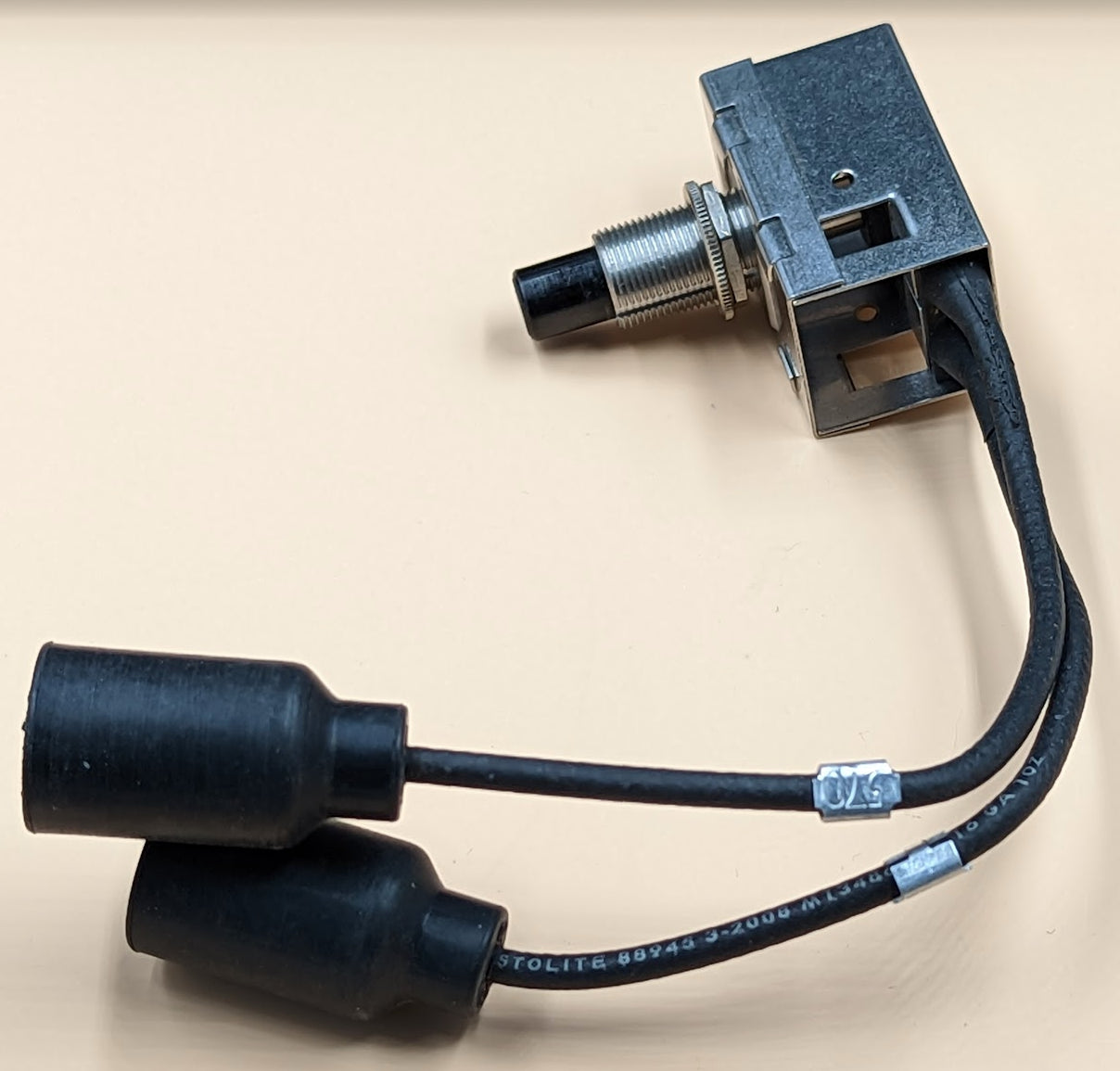

Push Button Switch Ether Cold Start Stop 11669772 5930011323247 NOS Military M900
****************************************
DETAILS - SPECS:
Mounting Method
threaded bushing
Body Width
0.938 inches maximum
Overall Height
2.125 inches maximum
Actuator Height
0.500 inches maximum
Thread Quantity Per Inch
32
Maximum Voltage Rating In Volts
24.0 dc
Inclosure Type
fully inclosed
Actuator Diameter
0.344 inches nominal
Bushing Length
0.625 inches maximum
Nonpile-Up Contact Arrangement
1 pole, single throw, normally open, momentary action single switch unit
Overall Width
0.938 inches maximum
Terminal Type And Quantity
2 quick disconnect, male
Body Height
1.000 inches maximum
Body Style
bushing mounted
End Item Identification
2320-01-047-8743
Contact Load Current Rating At Maximum Rated Voltage
7.500 amperes inductive dc and 15.000 amperes resistive dc and 7.500 amperes lamp dc
Nominal Thread Size
0.469 inches
Thread Series Designator
uns
Body Length
1.500 inches nominal
Special Features
terminals at right angle
BODY STYLE BUSHING MOUNTED
OVERALL HEIGHT 2.125 INCHES
MAXIMUM OVERALL WIDTH 0.938 INCHES
MAXIMUM BUSHING LENGTH 0.625 INCHES
MAXIMUM BODY LENGTH 1.500 INCHES
NOMINAL BODY WIDTH 0.938 INCHES
MAXIMUM BODY HEIGHT 1.000 INCHES
MAXIMUM ACTUATOR DIAMETER 0.344 INCHES
NOMINAL ACTUATOR HEIGHT 0.500 INCHES MAXIMUM
MAXIMUM VOLTAGE RATING IN VOLTS 24.0 DC
END ITEM IDENTIFICATION 2320-01-047-8743
ENCLOSURE TYPE FULLY INCLOSED
MOUNTING METHOD THREADED BUSHING
THREAD QUANTITY PER INCH 32 NOMINAL
THREAD SIZE 0.469 INCHES
NONPILE-UP CONTACT ARRANGEMENT 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 15.000 AMPERES
RESISTIVE DC AND CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 7.500 AMPERES
INDUCTIVE DC AND CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 7.500 AMPERES
LAMP DC SPECIAL FEATURES TERMINALS AT RIGHT ANGLE THREAD SERIES DESIGNATOR UNS TERMINAL TYPE AND QUANTITY 2 QUICK DISCONNECT, MALE
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
Calculagraph Co Inc
****************************************
MPN:
81901-D1011-501
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
D1011501
D1011-501
P9335101
P9335-101
11669772
5930-01-132-3247
01-132-3247
5930011323247
011323247
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
M900 series, M923, M925, M931
