Description
WHAT IS IT:

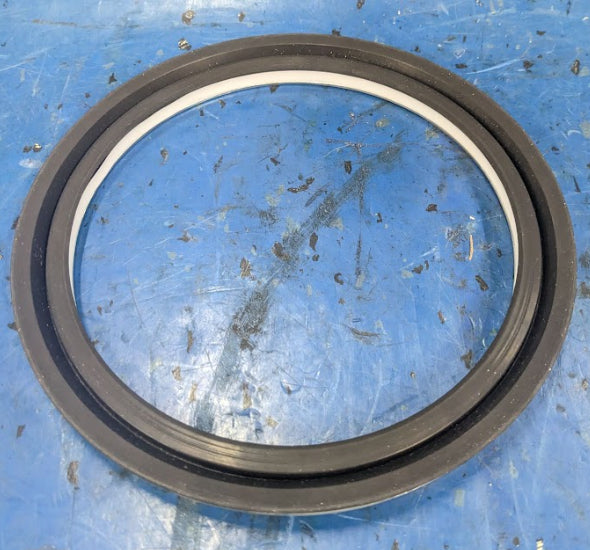

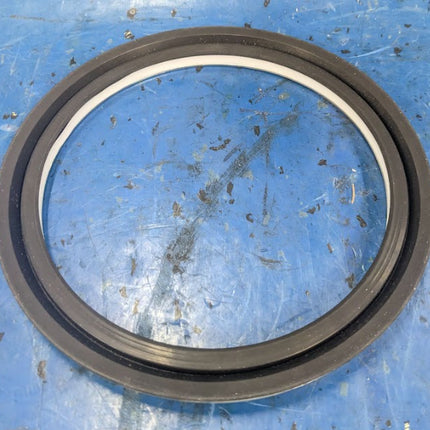

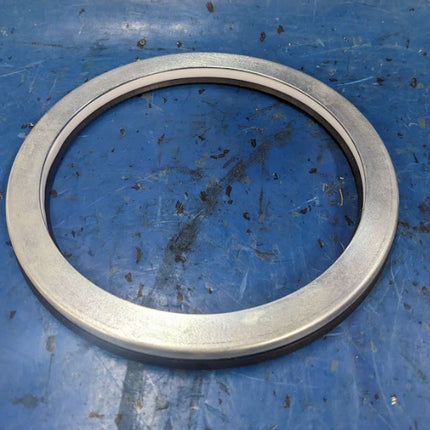

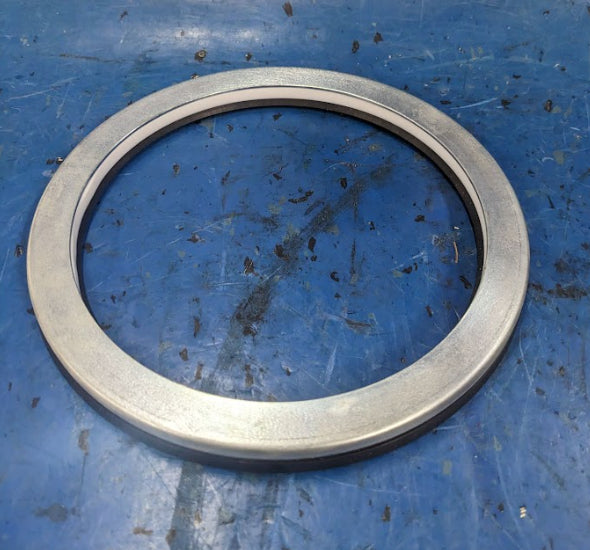

Parker Clipper Oil Seal Rotary Shaft 19081 5066 Johns Manville 6” Shaft HP
High Pressure High Temperature Springless Rotary Shaft Oil Seal With Metal Case
****************************************
DETAILS - SPECS:
Case Material: Carbon Steel
Width (inch): 0.500
Shaft Diameter (inch): 6.000
Bore Diameter (inch): 7.250
Minimum Operating Temperature:-40 °F
Maximum Operating Temperature:400 °F
Maximum Surface Speed:4000 (20.3 m/s) ft/min
Maximum Operating Pressure: 300 psi
Shaft Seal Material: Rubber
6" Shaft Dia; 7-1/4" Housing Bore; 1/2" Nominal Width; Viton Lip; Solid Seal; 1/2" Actual Width; Not Spring Loaded; 2 Sealing Lips; No Lip Retainer; Steel and Rubber Case; HP Seal Design Code
Nominal Width 0.5 Inch | 12.7 Millimeter
Shaft Diameter 6 Inch | 152.4 Millimeter
Actual Width 0.5 Inch | 12.7 Millimeter
Housing Bore 7.25 Inch | 184.15 Millimeter
Parker’s proprietary Clipper® Oil seal design features an integrally precision-molded rubber/aramid fiber composite outer case (heel) and elastomeric sealing lip. Designs are available with or without stainless steel garter springs which provide the correct interface with rotating shafts.
****************************************
CONDITION:
NEW
****************************************
BRAND:
PARKER
****************************************
MPN:

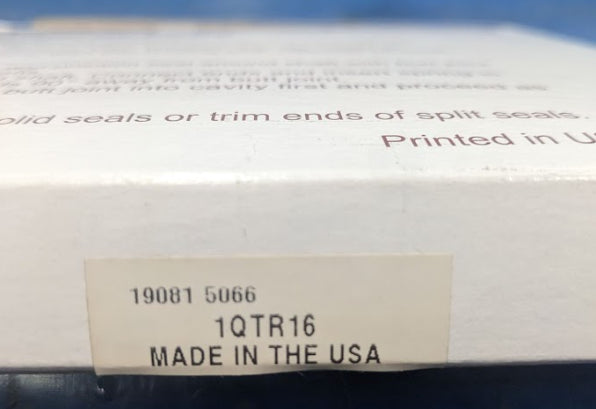

19081 5066
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
18221559
1QTR16
0827834095954
31411705
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
- Pumps
- Motors
- Gearboxes
- Crushers
- Fans
- Pillow blocks
- Runout tables
- Paper rolls
- Work rolls
- Mixers
- Compressors
- Overhead cranes
- Drag lines
- Hoists
- Elevators
- Mine cart wheels
- Flywheels
- Idler wheels
- Tapered bearings
- Custom equipment
****************************************
