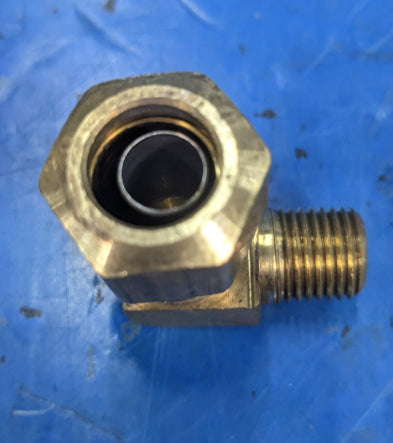

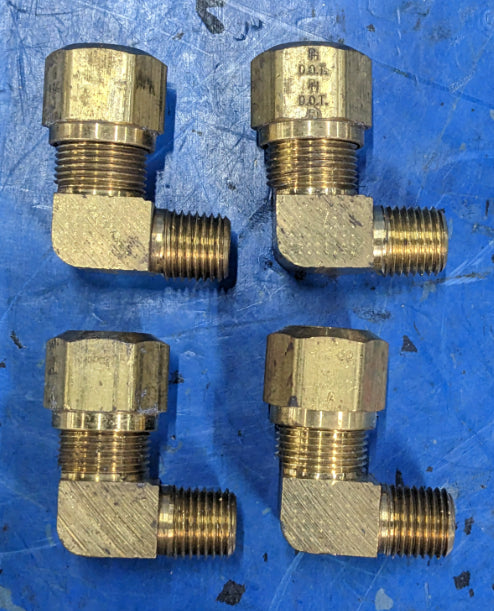

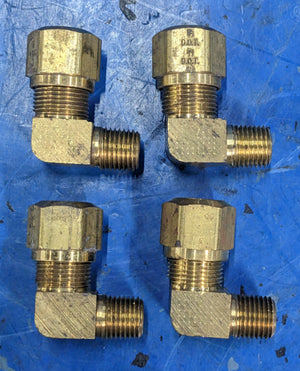

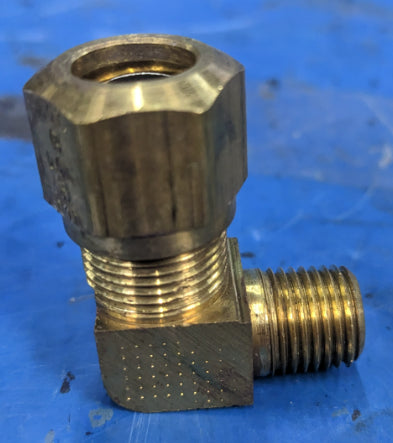

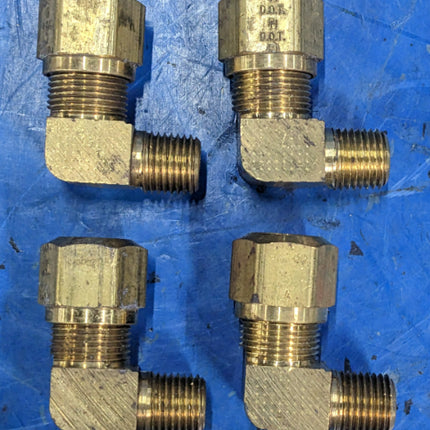

Male Elbow 90 Deg 1/2” x 1/4-18 Air Brake DOT Compression Tube Fitting 1469X8X4 269NTA84
****************************************
DETAILS - SPECS:
Male Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPTF, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/2 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 13/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/4 in, Thread Size A 11/16-20, Thread Size B 1/4-18, System of Measurement Imperial, Standards DOT FMVSS 571.106, SAE
MATERIAL COPPER ALLOY OVERALL
MAXIMUM OPERATING PRESSURE 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP 200.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE B66 FLARELESS 1ST END B67B PLAIN 2ND END
SEAT ANGLE 20.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES 1ST END
THREAD SERIES DESIGNATOR UNS 1ST END NPTF 2ND END
NOMINAL THREAD SIZE 0.688 INCHES 1ST END 0.250 INCHES 2ND END
THREAD QUANTITY PER INCH 20 1ST END
THREAD CLASS 3A 1ST END
LEG LENGTH 0.870 INCHES NOMINAL 1ST END 1.000 INCHES NOMINAL 2ND END
FLOW ANGLE 90.0 DEGREES
FURNISHED ITEMS AND QUANTITY 1 TUBE COUPLING NUT AND 1 COUPLING SLEEVE
SPECIFICATION/STANDARD DATA 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
****************************************
CONDITION:
NEW
****************************************
BRAND:
LOCKHEED MARTIN
****************************************
MPN:
4730-01-115-7362
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
1469X8X4, 269NTA84, 269NTA-8-4, 283150, 29NTA84, 29NTA-8-4, 4469F08X04, 4-469-F-08X04, 001813V010, 8-4 100202BA, 84100202BA, J246, 4730-01-115-7362, 01-115-7362, 4730011157362, 011157362
001813V010 59556 KOVATCH CORP.
1469X8X4 01276 EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
1469X8X4 79470 DANA CORP WEATHERHEAD DIV
269NTA-8-4 93061 PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV
283150 06853 BENDIX COMMERCIAL VEHICLE SYSTEMS LLC
29NTA-8-4 93061 PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV
4-469-F-08X04 30327 IMPERIAL
8-4 100202BA 0FW39 BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
8-4 100202BA 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
J246 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
• Heavy duty truck
• Trailer
• Mobile
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls
****************************************
