WHAT IS IT:

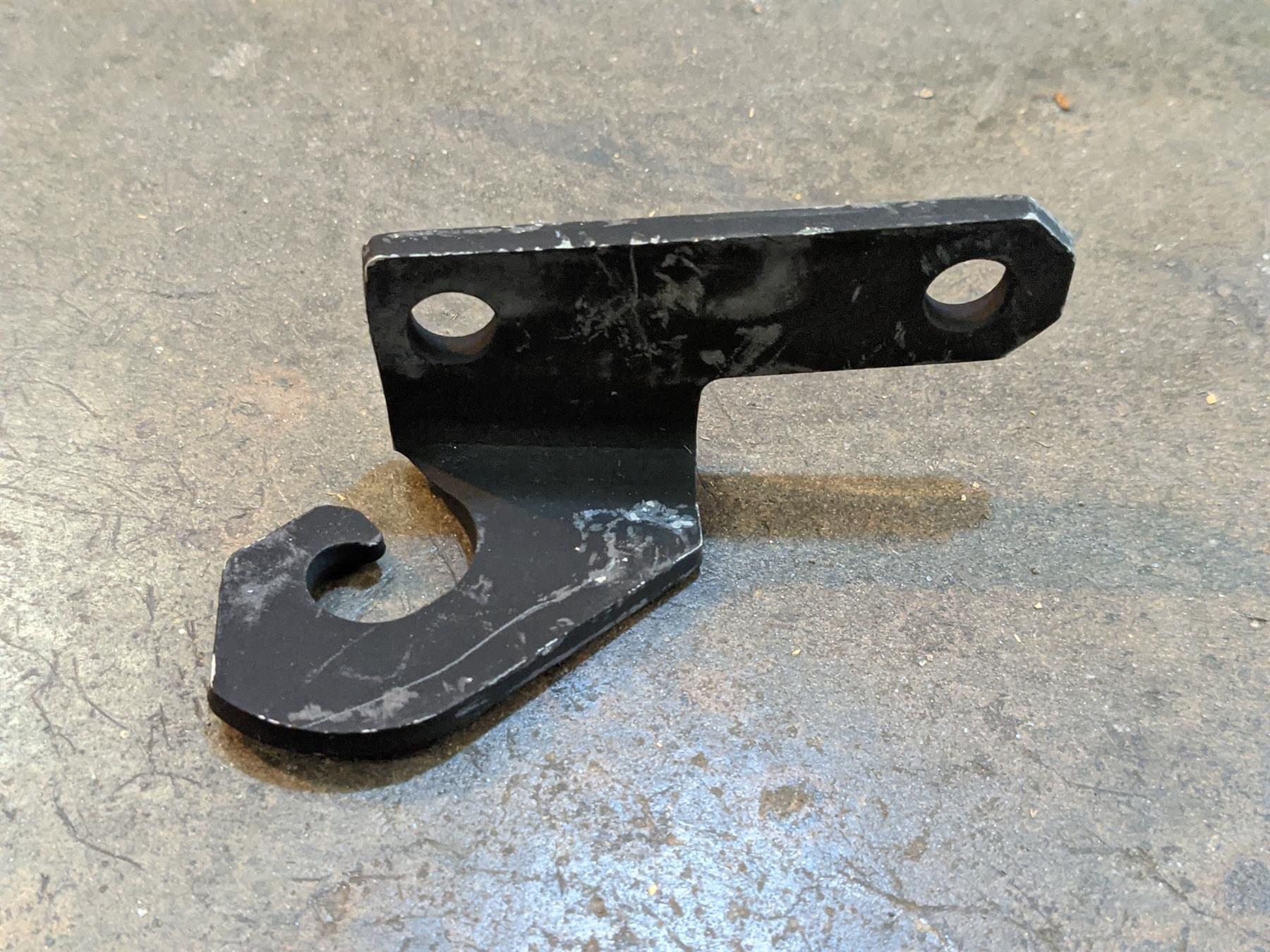

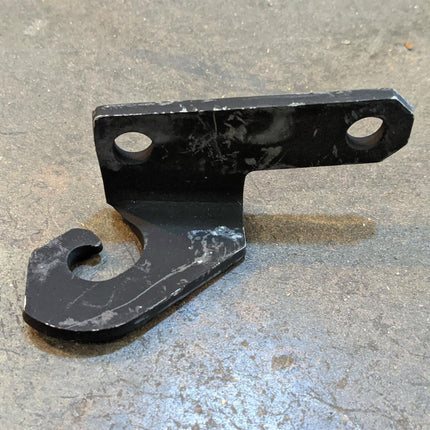

M998 HMMWV Starter Support Bracket Angle EC12469281 5340-01-457-5734
****************************************
DETAILS:
MATERIAL STEEL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM-A-572, GD 50 ASSN STD SINGLE MATERIAL RESPONSE
STYLE DESIGNATOR 6 ANGLE
III FIRST LEG LENGTH 2.2500 INCHES NOMINAL
III SECOND LEG LENGTH 3.2200 INCHES NOMINAL
III FIRST LEG THICKNESS 0.1880 INCHES NOMINAL
III SECOND LEG THICKNESS 0.1880 INCHES NOMINAL
III FIRST LEG ANGLE 90.0 DEGREES NOMINAL
FIRST LEG STYLE 104 SQUARE
FIRST LEG WIDTH 3.2200 INCHES NOMINAL
FIRST LEG HOLE ARRANGEMENT STYLE 133 TWO HOLES
FIRST LEG HOLE DIAMETER 0.4000 INCHES NOMINAL
FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH 2.4000 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH 0.4100 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH 0.4040 INCHES NOMINAL
SECOND LEG RELATIONSHIP TO FIRST LEG NOT IDENTICAL
SECOND LEG STYLE 108 END RADIUS AND TAPERED
SECOND LEG WIDTH 1.3100 INCHES NOMINAL
SECOND LEG END RADIUS 0.8500 INCHES NOMINAL
SECOND LEG HOLE ARRANGEMENT STYLE 131 NO HOLE
MOUNTING HOLE TYPE PLAIN
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
LOCKHEED MARTIN
****************************************
MPN:
EC12469281
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
EC12469281, ECEX4939B1, EX4939, 5340PL0715276 , 5340-01-457-5734, 01-457-5734, 5340014575734, 014575734
5340PL0715276 9009H INSPEKTORAT WSPARCIA SIL ZBROJNYCH
EC12469281 34623 AM GENERAL, LLC
ECEX4939B1 34623 AM GENERAL, LLC
EX4939 34623 AM GENERAL, LLC
****************************************
APPLICATION:
Am General Llc Truck, Vehicle System, 1 1/4-ton (hmmwv) Truck, Utilities, Tow Carrier-w/sa, 1 1/truck, Utility, Cargo Troop Carrier, 5/4 Truck, Vehicle System, 1 1/4-ton (hmmwv)
