LED Bulb Light 28V 0.37W Replaces #327 #376 #387 #6034 #729 #727 F206CR6-28V/20-BP

5980012856689
  • $14.99

Only 4 left!

WHAT IS IT:

LED Bulb Light 28V 0.37W Replaces #327 #376 #387 #6034 #729 #727 F206CR6-28V/20-BP

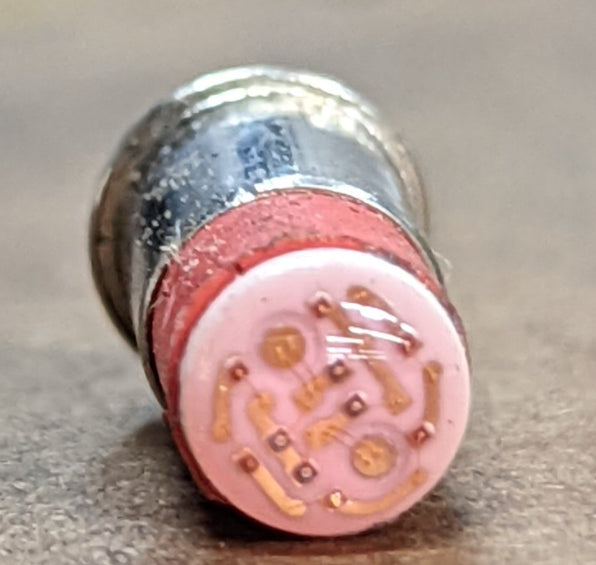

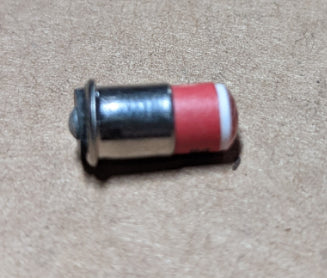

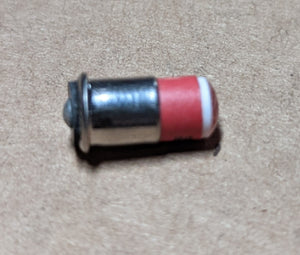

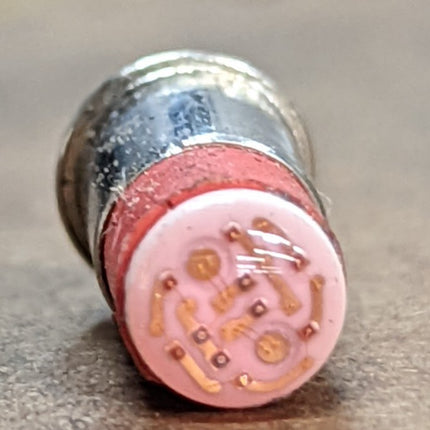

Miniature LED Lamp, 6-Chip, Midget Flange T1-3/4 (SX6s),

Standard Intensity, Series F206C

Direct Incandescent Replacement — Up to 90% Energy Savings

Replaces Incandescent: 328, 345, 350 (5/6V) 330, 382, 394 (12/14V) 24V; 327, 376, 387 (24/28V)

****************************************

DETAILS - SPECS:

Description F206CR6-28V/20-BP

Base Type Midget Flange T1-3/4 (SX6s)

Dimensions 0.63"Lx0.285"FLG

Color Red

Wavelength (nm) 632nm

Polarity (Center Contact) Bipolar (+/-)

Voltage (V) 28Vdc

Power (Watts) 0.37 W

Current (Amps) 0.012-0.014 A

Operating Temp ~-30°C to ~+50°C

Intensity (Candela) 0.045 cd

Viewing Angle 160°

CAGE 8Z410

CONTRACT SPE7LI-17-D-0012

SEMICONDUCTOR MATERIAL GALLIUM ARSENIDE PHOSPHIDE

INTERNAL CONFIGURATION POINT CONTACT

INTERNAL JUNCTION CONFIGURATION PN

VOLTAGE RATING IN VOLTS PER CHARACTERISTIC 30.0 MAXIMUM FORWARD VOLTAGE, DC

CURRENT RATING PER CHARACTERISTIC 19.00 MILLIAMPERES MAXIMUM FORWARD CURRENT, DC

POWER RATING PER CHARACTERISTIC 600.0 MILLIWATTS MAXIMUM TOTAL DEVICE DISSIPATION

COLOR TONE PRODUCED PER SOURCE RED LENS

LENS TRANSPARENCY TRANSLUCENT

LUMINOUS INTENSITY 32.0 MILLICANDELA MINIMUM

MAXIMUM OPERATING TEMP PER MEASUREMENT POINT 65.0 DEG CELSIUS AMBIENT AIR

INCLOSURE MATERIAL PLASTIC

MOUNTING METHOD PRESS FIT

TERMINAL TYPE AND QUANTITY 2 UNINSULATED WIRE LEAD

OVERALL LENGTH 0.630 INCHES MAXIMUM

OVERALL DIAMETER 0.290 INCHES MAXIMUM

FUNCTION FOR WHICH DESIGNED VISIBLE LIGHT EMITTING

SPECIAL FEATURES WEAPON SYSTEM ESSETNIAL

CRITICALITY CODE JUSTIFICATION FEAT

III END ITEM IDENTIFICATION SEAWOLF CLASS SSN. M-109 SERIES HOWITZER. M-578 RECOVERY VEHICLE, M88A1 W/E MEDIUM FULL TRACKED RECOVERY VEHICLE. M-1 ABRAMS TANK, M992 (FAAGV) FIELD ARTILLERY AMMUNITION SUPPORT VEHICLE. LANDING CRAFT AIR CUSHION (LCAC).

****************************************

CONDITION:

NEW

****************************************

BRAND:

LEDTRONICS

****************************************

MPN:

F206CR6-28V/20-BP

****************************************

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

SP870116R, SP870116-R, F206CR60007, F206CR6-0007, F206CR6-28V/20-BP, F206CR628V20BP, 12360905-1, 5980-01-285-6689, 01-285-6689, 5980012856689, 123609051, 012856689

12360905-1 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

F206CR6-0007 8Z410 LEDTRONICS, INC.

F206CR6-28V/20-BP 8Z410 LEDTRONICS, INC.

SP870116-R 15513 DISPLAY PRODUCTS INC. DBA DATA DISPLAY PRODUCTS

****************************************

APPLICATION - USED ON IN - WHAT IS IT FOR:

Replaces Incandescent: 327, 376, 387

Replaces filament bulbs #327, #376 , #387, #6034, #729, #727, S3368-2, AN3140-327, MS25237-327

Display Products Inc. Dba Data Display Products Howitzer, M-109 Series Advanced Air Traffic Contr. & Land. Sysan/tpx-42a(v)5,8,10 Interrogator Setfield Artillery Ammunition Support Vehicle

****************************************
