Description
WHAT IS IT:

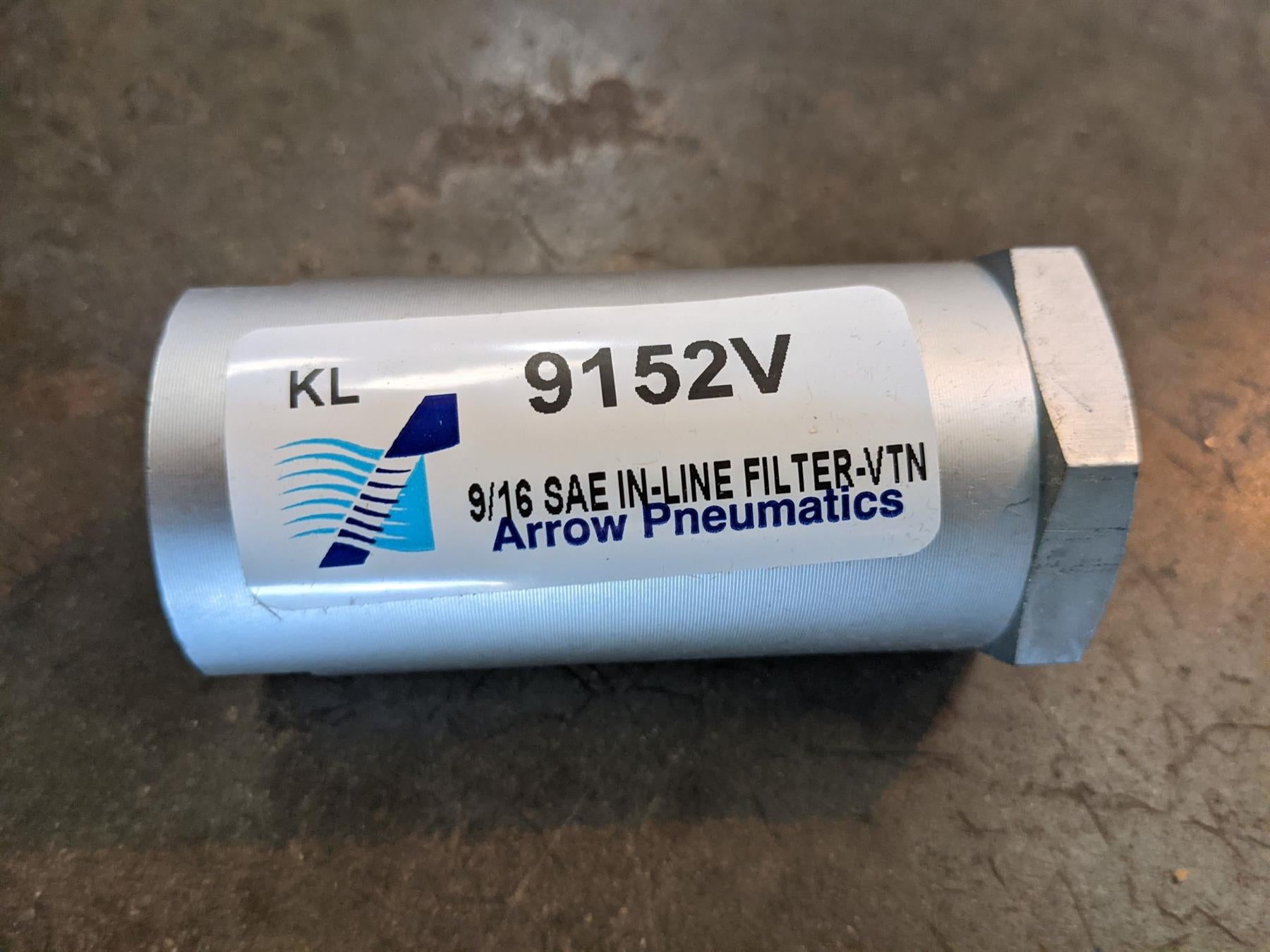

In-Line Fuel Hydraulic Oil Fluid Filter 9/16” 40 Micron Arrow Pneumatics 9152V 2910014196286
****************************************
DETAILS - SPECS:
9/16” SAE IN LINE FILTER VTN
STYLE DESIGNATOR: C27 INLINE
BODY LENGTH: 3.250 INCHES NOMINAL
MATERIAL: COPPER ALLOY FILTERING MEDIUM
FILTERING MEDIA DESIGN: SINTERED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE: REUSABLE
FILTERING ELEMENT QUANTITY: 1
FILTRATION RATING IN MICRONS: 40.0 NOMINAL
MEDIA FOR WHICH DESIGNED: FUEL/OIL, HYDROCARBON
MAXIMUM OPERATING PRESSURE: 3000.0 POUNDS PER SQUARE INCH
TEMP RATING: -65.0 DEG FAHRENHEIT MINIMUM AND 250.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE: 1500.0 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE NOT RATED

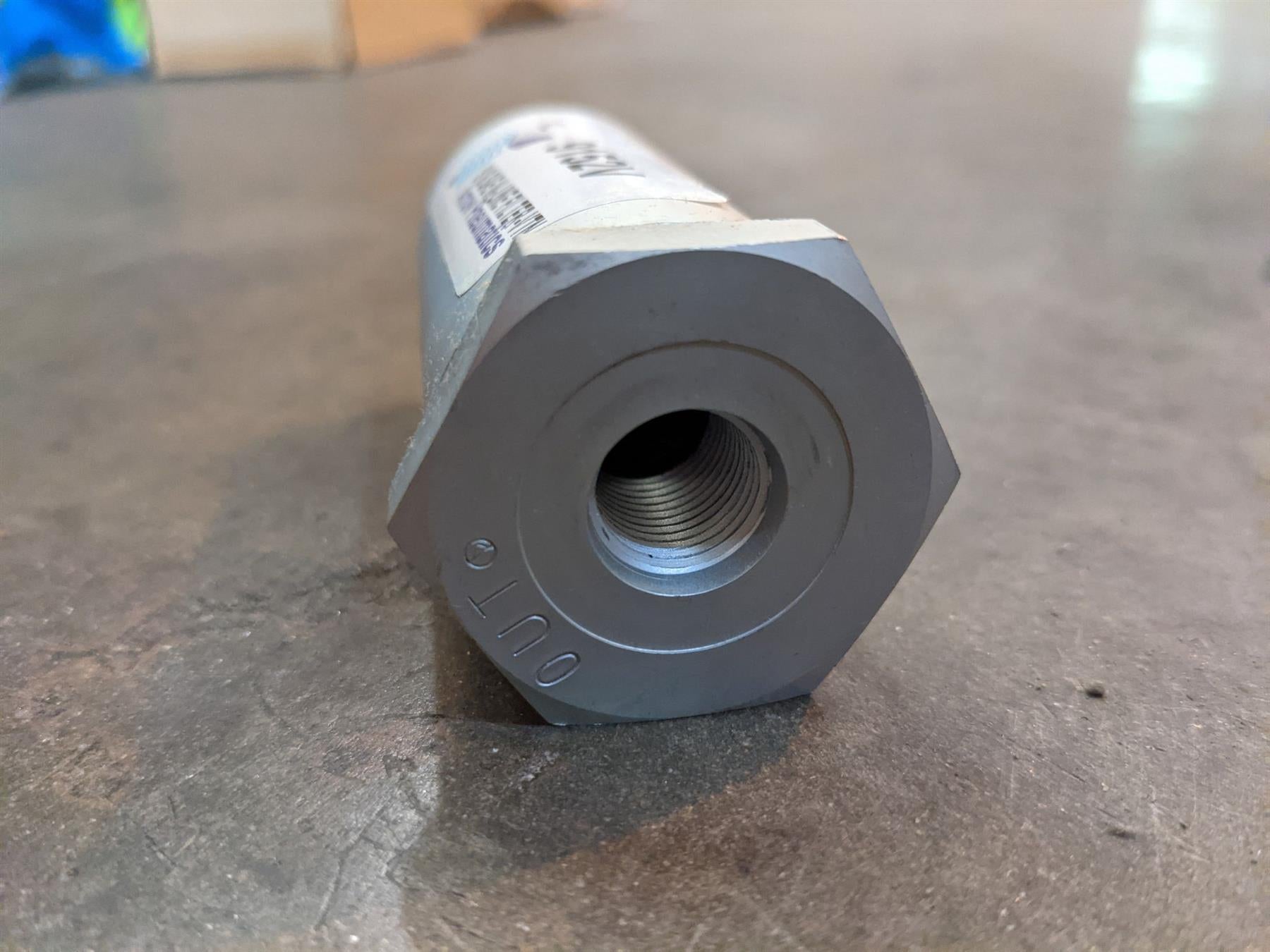

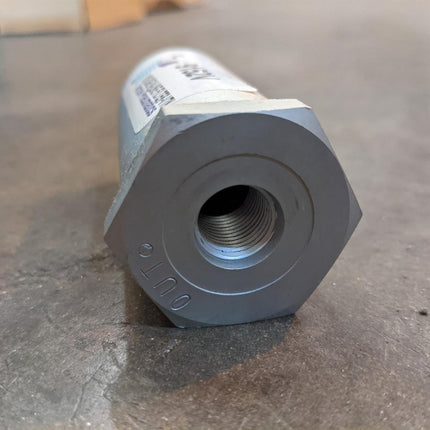

FIRST INTAKE CONNECTION TYPE: THREADED INTERNAL TUBE END
FIRST INTAKE THREAD SERIES DESIGNATOR: UNF
FIRST INTAKE NOMINAL THREAD SIZE: 0.562 INCHES
FIRST INTAKE THREAD CLASS: 2B
FIRST INTAKE THREAD DIRECTION: RIGHT-HAND
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION: IDENTICAL TO FIRST INTAKE CONNECTION
MOUNTING TYPE: INLET CONNECTION AND OUTLET CONNECTION END
FILTERING SYSTEM FOR WHICH DESIGNED: FULL FLOW
III END ITEM IDENTIFICATION: 2350-01-248-7619; WEAPON SYSTEM E/I FIGHTING VEHICLE SYSTEMS,BRADLEY (BFVS)
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
AERO PNEUMATICS
****************************************
MPN:
9152V
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
12395681, 9152V, 9152VS1, 9152V-S1, 2910-01-419-6286, 01-419-6286, 2910014196286, 014196286
****************************************
