Hermaphrocon U-185B/G Plug Connector and Housing 5935-00-577-8846 Military

5935005778846

$284.99

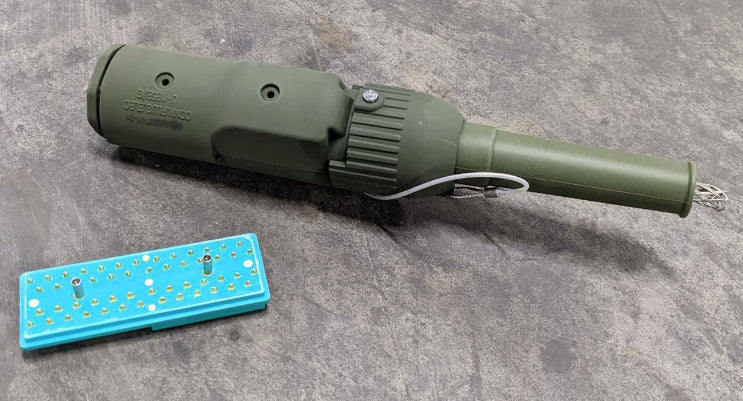

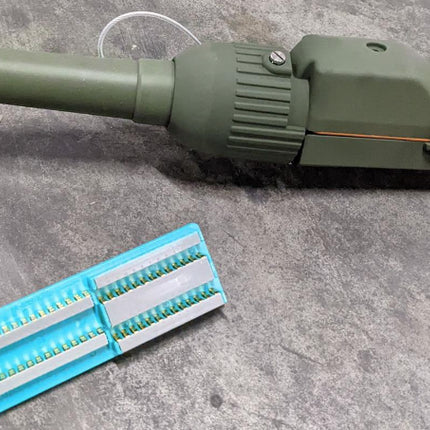

WHAT IS IT:

The U-185B/G plug is a hermaphrocon connector

with a die cast aluminum shell. The U-185B/G plug is

attached to the cable assemblies and mate and

unmate to the receptacles or other plugs by a

mechanical locking cam mechanism.

Basic size of connector and housing:

Length: 13.13 inches

Width: 2.44 inches

Height: 2.75 inches

Weight: 2.20 lbs.

Hermaphrocon circuit redundancy assures that a

missing or damaged contact in the contact pair will

not cause the connector to fail.

Mating and unmating by the mechanical cam

mechanism on the connector housing also seals the

housings during assembly.

Cannot be mated improperly.

Cast aluminum housings.

****************************************

DETAILS - SPECS:

OVERALL LENGTH 13.500 INCHES MAXIMUM

OVERALL DIAMETER 2.750 INCHES NOMINAL

CONNECTOR LOCKING METHOD CAM AND LEVER

CONNECTOR CABLE STRAIN RELIEF METHOD CORD GRIP

CABLE ENTRANCE DIAMETER 0.590 INCHES MAXIMUM

SHELL MATERIAL ALUMINUM ALLOY 380.0

SHELL MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE

SHELL SURFACE TREATMENT ANODIZE

MATING END QUANTITY 1

INSERT MATERIAL PLASTIC DIALLYL PHTHALATE SINGLE MATING END

INSERT MATERIAL DOCUMENT AND CLASSIFICATION MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END

INCLUDED CONTACT QUANTITY 52 SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT REMOVABILITY NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING

INCLUDED CONTACT TYPE HERMAPHRODITE SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT MATERIAL DOCUMENT AND CLASSIFICATION QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT SURFACE TREATMENT GOLD SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-G-45204,TY 2,GRADE D,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING

TERMINAL TYPE TAB, SOLDER LUG SINGLE MATING END SINGLE CONTACT GROUPING

TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING

ENVIRONMENTAL PROTECTION WATERTIGHT

TEST DATA DOCUMENT 81349-MIL-C-55074 SPECIFICATION

SPECIFICATION/STANDARD DATA 81349-MIL-C-55074/1 GOVERNMENT SPECIFICATION

III PRECIOUS MATERIAL GOLD

III PRECIOUS MATERIAL AND WEIGHT 0.052 GOLD GRAINS, TROY

III PRECIOUS MATERIAL AND LOCATION CONTACT SURFACES GOLD

MANUFACTURERS CODE 81349

NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-55074/1

MANUFACTURERS CODE 81349

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M55074/1-01

****************************************

CONDITION:

NEW

****************************************

BRAND:

LOCKHEED MARTIN

****************************************

MPN:

M55074/1-01

****************************************

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

ELCO PART NUMBER

08 2260 0110 00 000

M55074/1-01, M55074101, SMD159141, SM-D-159141, U-185/BG, U185BG, MIL-C-55074/1, MILC550741, F36640, 082260011000000, 1366C, 4911 167674, 4911167674, 5935-00-577-8846, 00-577-8846, 5935005778846, 005778846

082260011000000 D2643 ELCO EUROPE GMBH

1366C 99872 ENTRON INDUSTRIES LIMITED PARTNERSHIP

4911 167674 D8770 TE KA DE FELTEN & GUILLEAUMEFERNMELDEANLAGEN GMBH

F36640 96344 CODALEX LTD

M55074/1-01 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

MIL-C-55074/1 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

SM-D-159141 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

U-185/BG 80058 JOINT ELECTRONICS TYPE DESIGNATION SYSTEM

****************************************

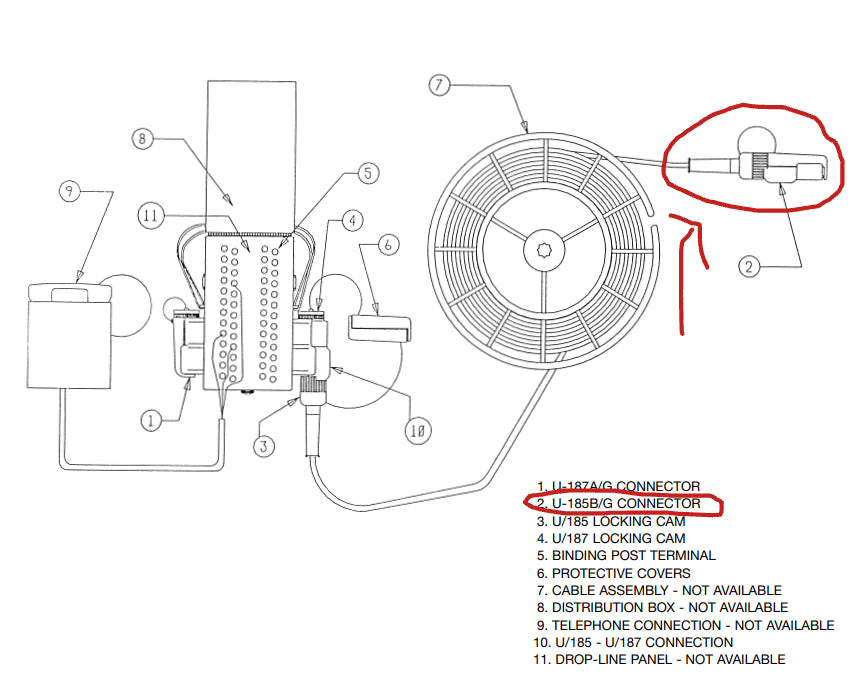

APPLICATION - USED ON IN - WHAT IS IT FOR:

COMMUNICATIONS PROGRAM, COMBAT THEATER (TRI-TAC) 4 WIN-T SYSTEMS AN/TTC-56, AN/TTC-59, AN/TTC-61, JOINT ELECTRONICS TYPE DESIGNATION SYSTEM WIN-T SYSTEMS AN/TTC-56, AN/TTC-59, AN/TTC-61 485L TACS CENTRAL MESSAGE SWITCH, AN/TYC-39A CENTRAL OFFICE, TELEPHONE AUTO

****************************************
