WHAT IS IT:
Grundfos CM10-2 Water End Suction Pump Centrifugal 99082904 Close Coupled Multistage

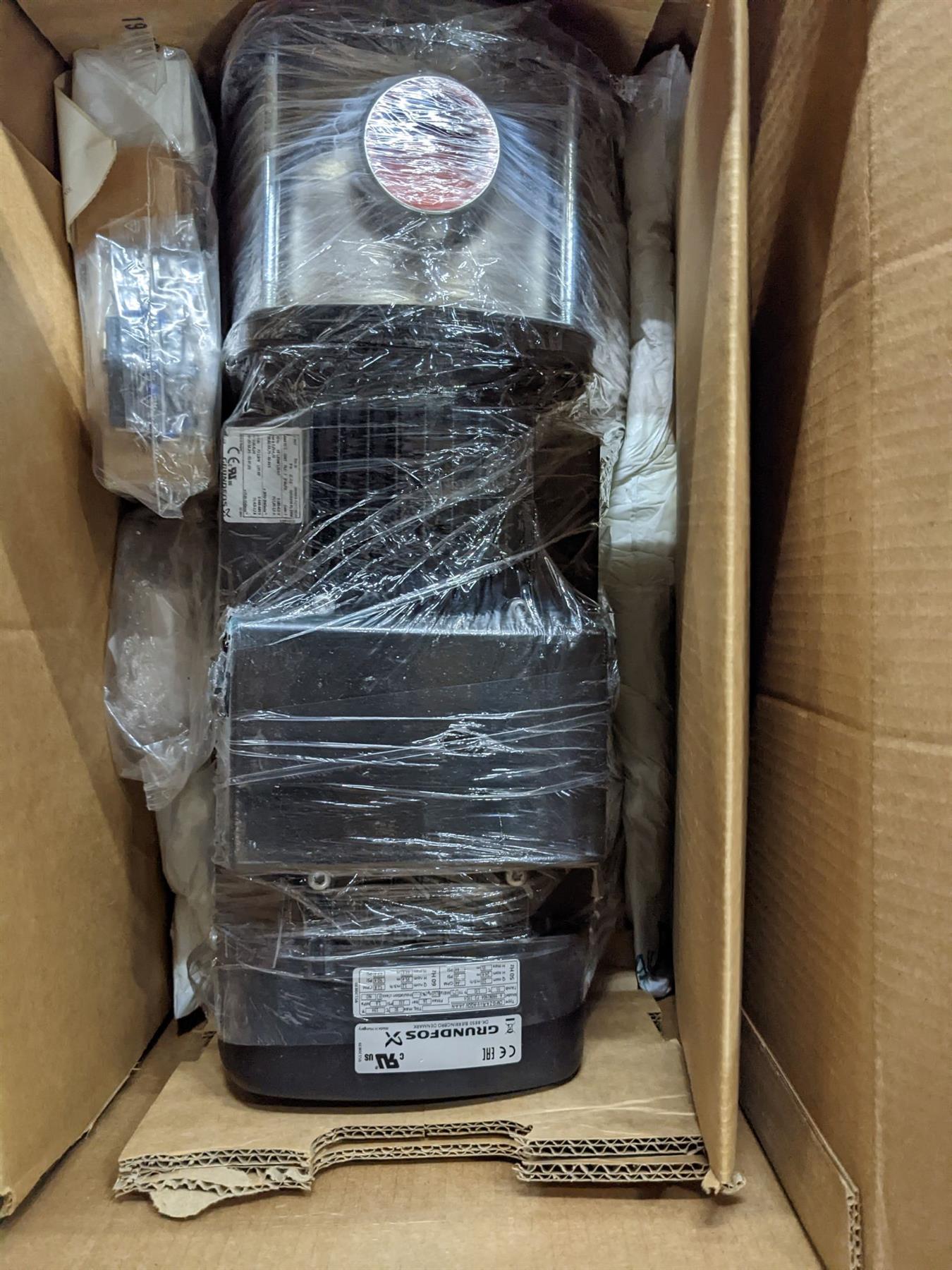

This is a brand new surplus pump motor that we received from one of our suppliers. I don’t know too much about it, but all specs below are right off of the Grundfos website.
****************************************
DETAILS - SPECS:
Product name: CM 10-2 A-R-I-V-AQQV J-A-A-N
Product No: 99082904
EAN number: 5712606422050
Pump speed on which pump data are based : 2900 rpm
Rated flow: 10 m³/h
Rated head: 35.44 m
Impellers: 2
Code for shaft seal: AQQV
Approvals: CE, EAC, CURUS, UKCA
Approvals for drinking water: WRAS, ACS, UBA
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Pump housing: Stainless steel
EN: 1.4301
AISI: 304
Impeller: Stainless steel
Material code: I
Code for rubber: V
Range of ambient temperature: -20 .. 55 °C
Maximum operating pressure: 16 bar
Max pressure at stated temp: 16 bar / 90 °C
Type of connection: Rp
Size of inlet connection: 1 1/2 inch
Size of outlet connection: 1 1/2 inch
Connect code: R
Pumped liquid: Water
Liquid temperature range: -20 .. 90 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³

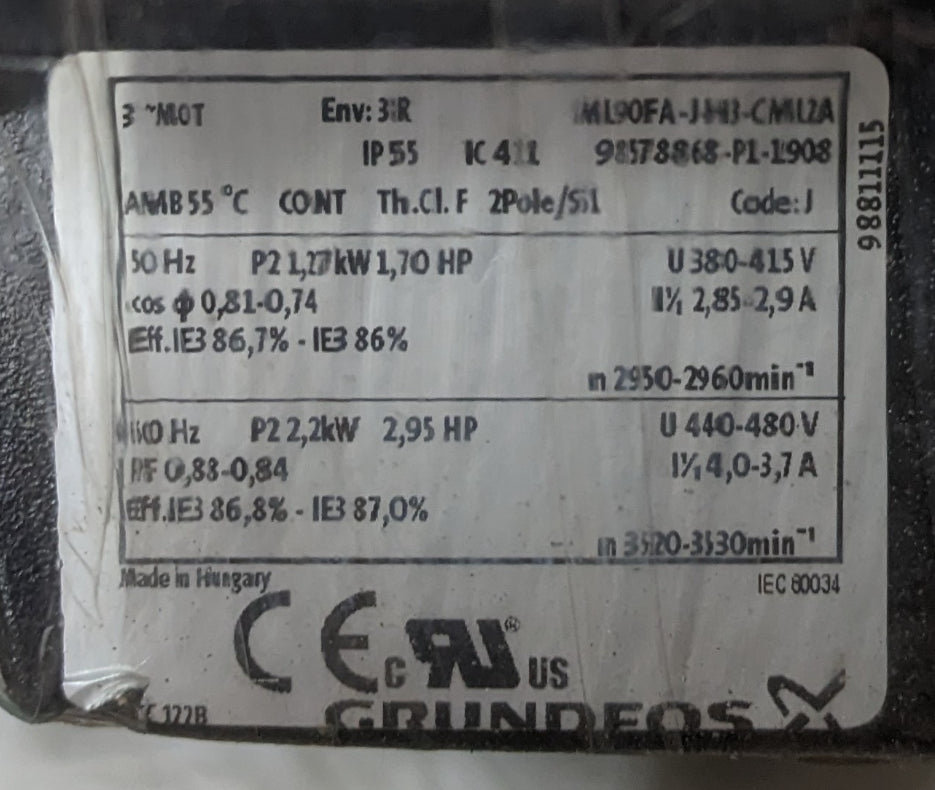

Motor standard: IEC
Frame size: 90HA
IE efficiency class: IE3
Rated power - P2: 1.27 kW
Mains frequency: 50 Hz
Suitable for 50/60 Hz: Y
Rated voltage: 3 x 380-415 V V
Service factor: 1.00
Rated current: 3.30-3.60 A
Starting current: 1100-1150 %
Rated speed: 2960-2970 rpm
Enclosure class (IEC 34-5): IP55
Insulation class (IEC 85): F
Built-in motor protection: NONE
Cable included (Yes/No): N
Frequency converter: NONE
Terminal box position: 12
Minimum efficiency index, MEI ≥: 0.52
Net weight: 29.2 kg
Gross weight: 31.7 kg
Robust nickel-plated brass shaft and bushings
Linear taper
25,000 cycle rotational life
Meets MIL-PRF-94 standards
Resistance Tolerance: ±10% Linearity: ±5%
The RV4NAYSD502A is a 5kΩ conductive plastic Industrial Potentiometer with solder lug terminals. The potentiometer converts rotary motion into a change of resistance, supplying a smooth transition of voltage or current levels. The resulting voltage output may be used to control position transducers in a wide variety of potential applications. These single turn devices have a 6.35mm diameter shaft that is available in a range of length.
Product Type: Potentiometer
Manufacturer Series: 53C/RV4
Taper: Linear
Resistance (Ohms): 5000
Tolerance (%): 10
Power Rating: 2 W
Resistive Element Material: Carbon
Voltage Rating: 500 V
Number of Turns: 1
Type: Rotary Metal
Technology: MIL
Operating Temperature-Min (Cel): -55
Operating Temperature-Max (Cel): 120
Mounting: Panel Mount
Height (mm): 36.12
Length (mm): 36.52
Termination Style: Solderable Lug
Diameter (mm): 27.78
Ganging Number: 1
Shaft Diameter (mm): 6.35
****************************************
CONDITION:
NEW
****************************************
BRAND:
GRUNDFOS
****************************************
MPN:
CM10-2 A-R-I-V-AQQV J-A-A-N
A - 99082904 - P3 - 1914RV4NAYSD502A
****************************************
