Goodyear 1R9-070 Air Spring Rolling Lobe Pusher Axle Bag 5410 2510010832950
2510010832950WHAT IS IT:

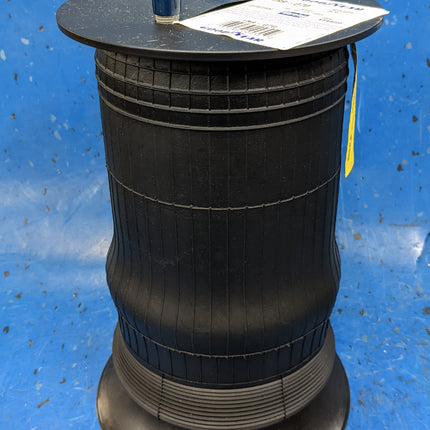

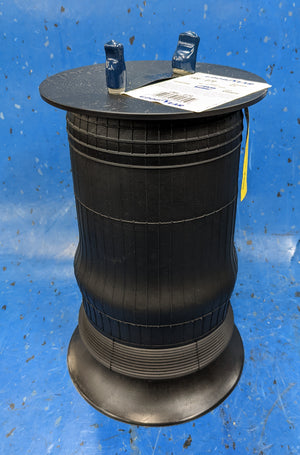

Goodyear 1R9-070 Air Spring Rolling Lobe Pusher Axle Bag 5410 2510010832950
****************************************
DETAILS - SPECS:
A Goodyear sleeve air spring will employ a flexible member without an internally molded bead. The flexmember is attached to the end of the retainers by pinching the material between the ends and the exterior crimp rings which are then adjusted to the proper diameter. There are many applications for Goodyear sleeve style airbag springs. The most common uses are ride springs for passenger cars and truck, isolators and springs for truck cab suspensions and seat springs, as well as many commonly seen industrial applications. 1R9-070 Goodyear Super-Cushion ® Air Spring will give your truck, trailer, or bus a long lasting durability and productivity to the air suspension with years of maintenance free service.

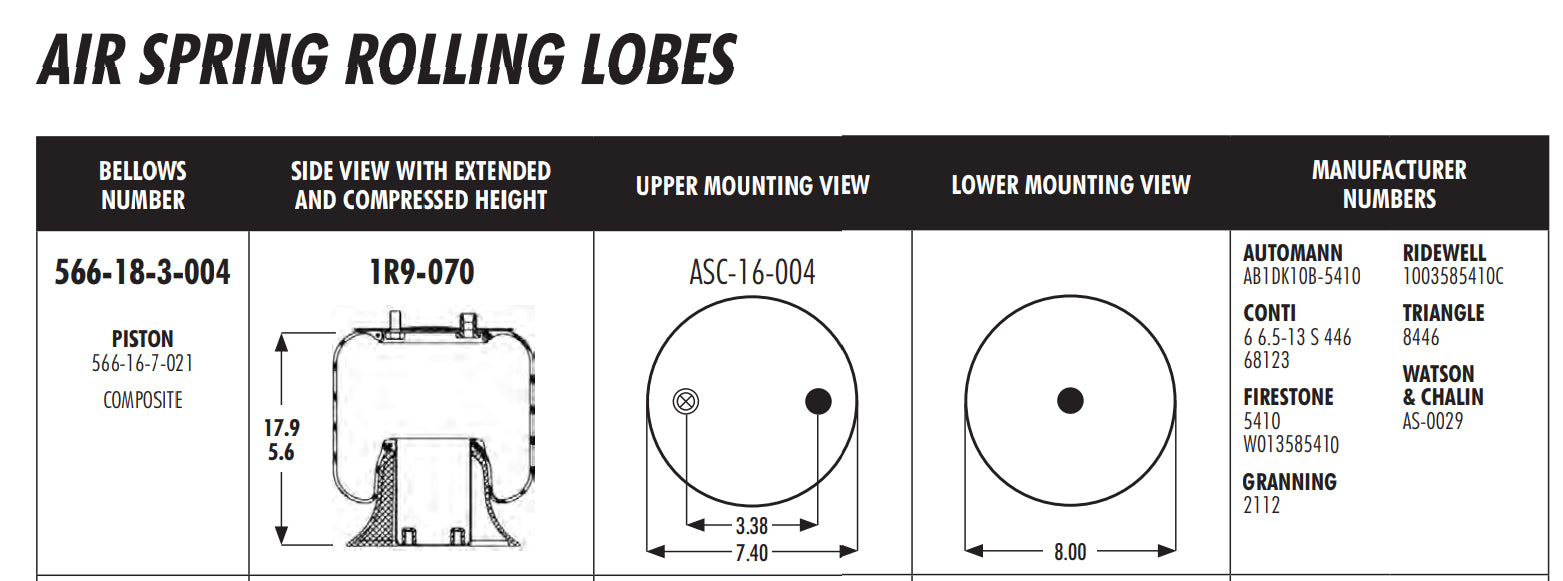

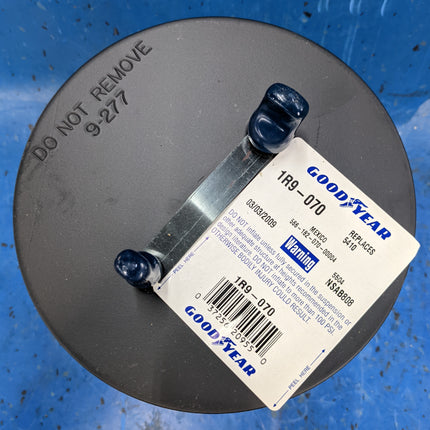

Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 2
Top Plate Diameter: 7.4
Bottom Plate Diameter: 8
Collapsed Height: 5.6

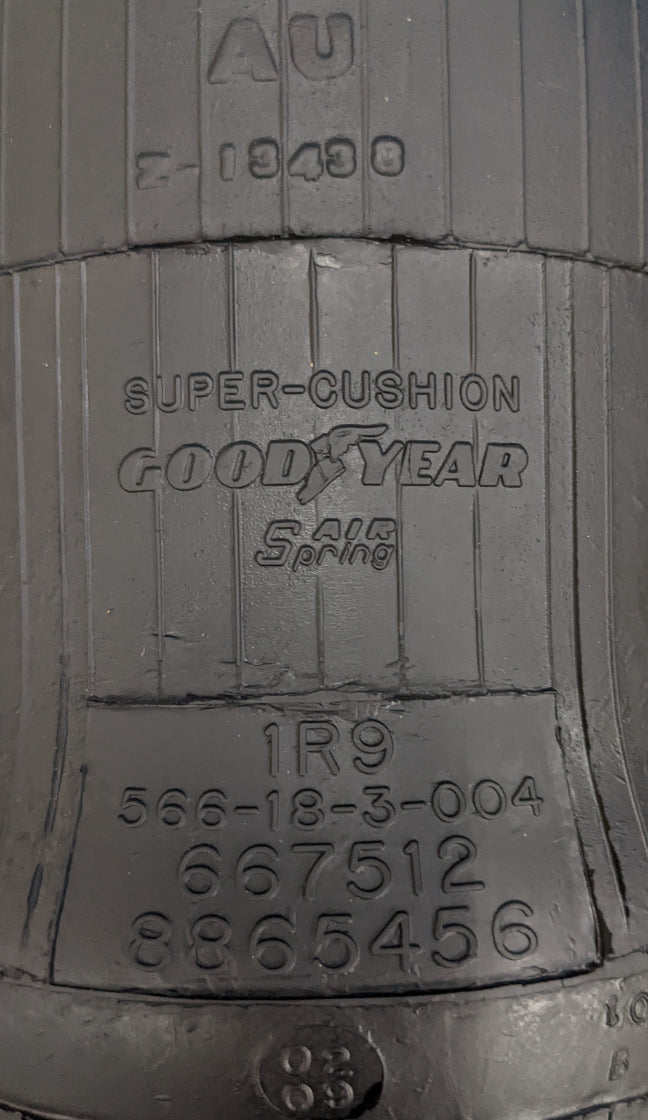

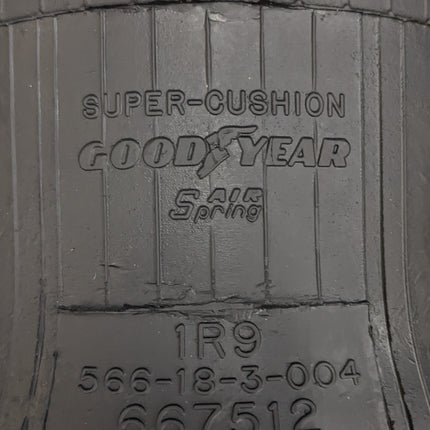

Flexmember: 566-18-3-004

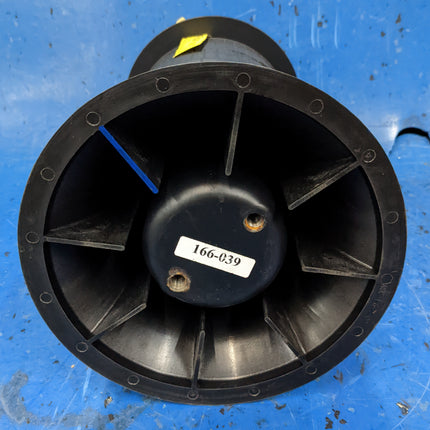

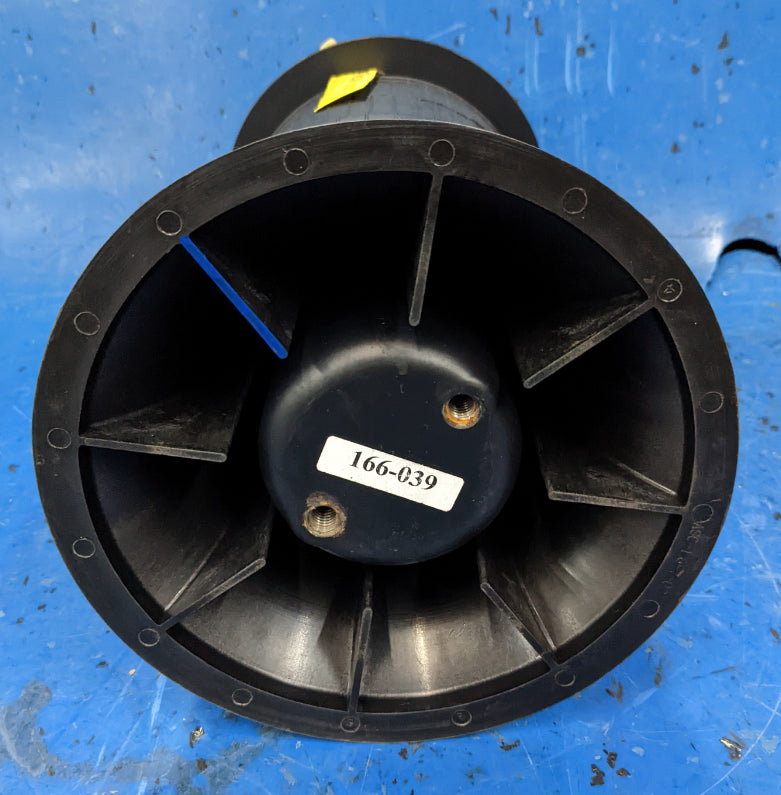

Piston: 566-16-7-021
Piston Type: C
Goodyear Trimmed: 1R9070
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
GOODYEAR
****************************************
MPN:
1R9-070 (replaces 5410)
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
Granning: 2112
Firestone: 5410
Triangle Spring: 6389
Triangle Spring: 8446
Neway: 57005410
Ridewell: 1003585410C
Batco: 10-95410
Watson & Chalin: AS0029
Watson & Chalin: AS-0029
Dallas Spring: AS5410
Midland/Haldex: CS109070
Euclid/Meritor Aftermarket: E-FS5410
Euclid/Meritor Aftermarket: FS5410
****************************************
