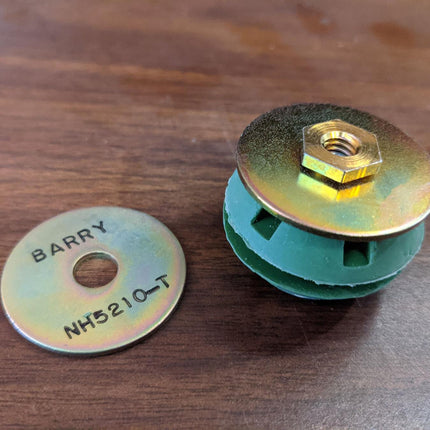

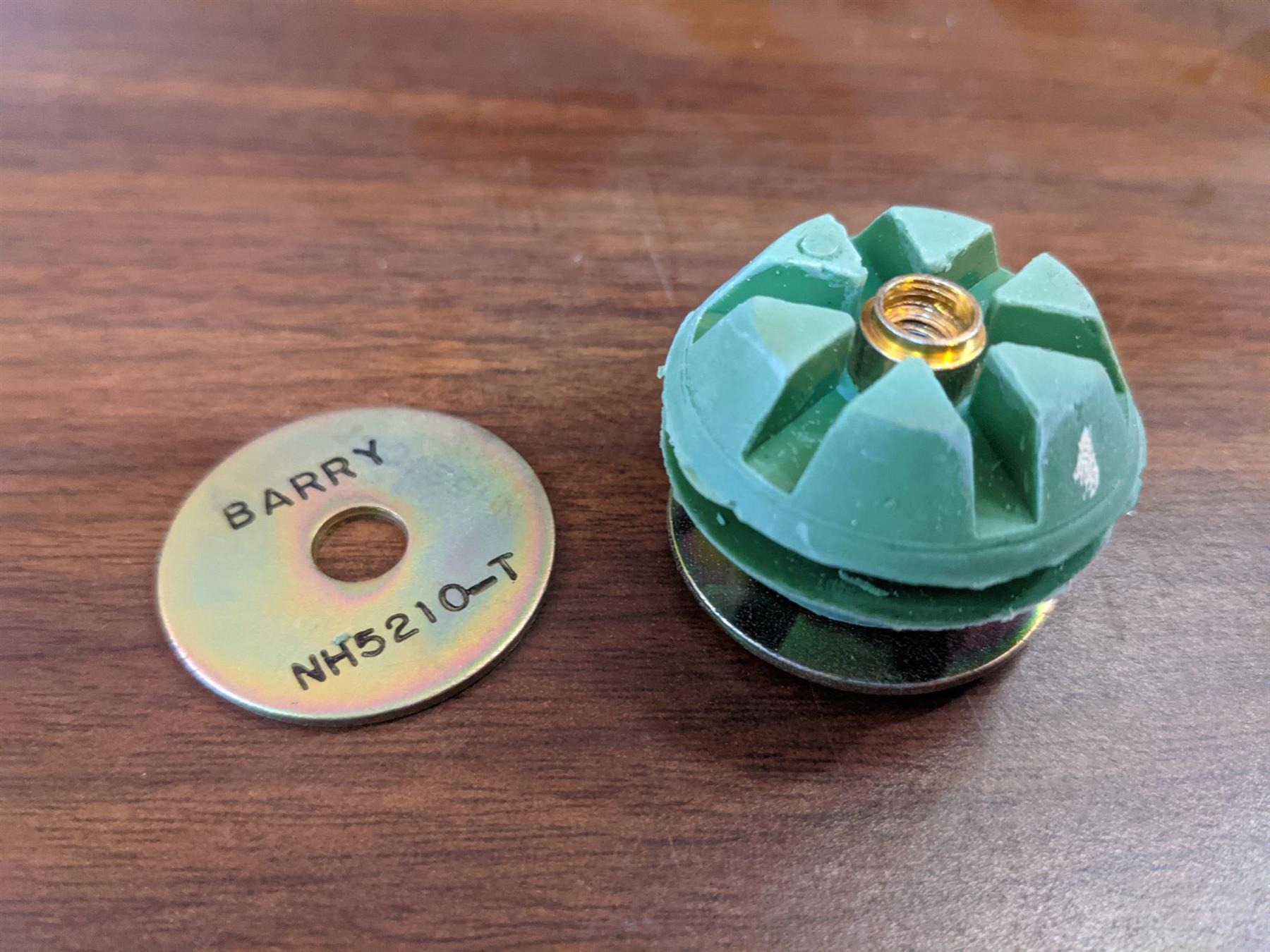

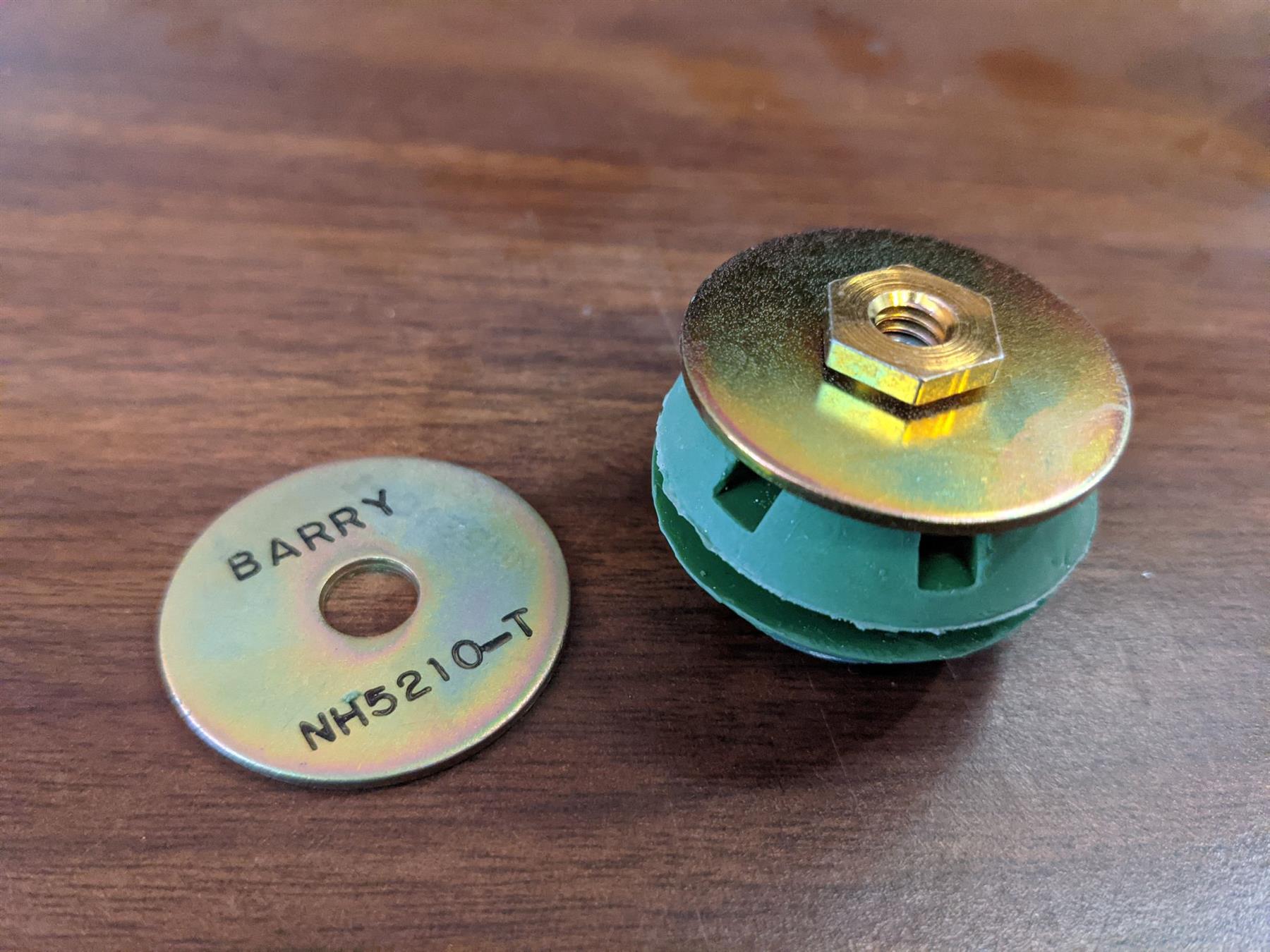

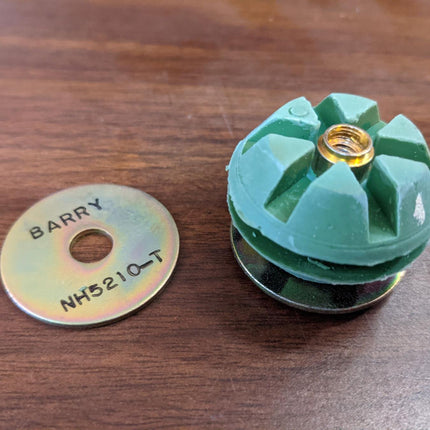

General Purpose Utility Resilient Mount Barry Controls NH5210-T 5340-01-092-0590 Military SUrplus NOS
5340010920590WHAT IS IT:
General Purpose Utility Resilient Mount Barry Controls NH5210-T 5340-01-092-0590 Military SUrplus NOS
****************************************
DETAILS - SPECS:
RESILIENT MEMBER MATERIAL RUBBER, NATURAL
NONMETALLIC HARDNESS RATING NOT RATED
RIGID MEMBER MATERIAL AND LOCATION STEEL CORE ASSEMBLY STEEL WASHER
RIGID MEMBER SURFACE TREATMENT AND LOCATION ZINC CORE ASSEMBLY ZINC WASHER
STYLE DESIGNATOR C32 ROUND W/BUSHING ROUND FLANGE
INSIDE DIAMETER 0.250 INCHES NOMINAL
FLANGE THICKNESS 0.063 INCHES NOMINAL
MAJOR OUTSIDE DIAMETER 1.525 INCHES NOMINAL
DISTANCE FROM FLANGE TO END 0.594 INCHES NOMINAL
HEIGHT 1.000 INCHES NOMINAL
STATIC LOAD RATING AT SPECIFIED DEFLECTION 300 LB LOAD AT 0.250 IN. DEFLECTION
LOAD/FREQUENCY RANGE 25 LB TO 3 LB AT 17 HZ TO 40 HZ
MAXIMUM LOAD RATING 25.0 POUNDS
SPECIAL FEATURES NO CENTER PLATE;TOP WASHER LOOSE;BOTTOM WASHER ATTACHED THROUGH CORE;CORE THREAD 0.250-20UNC-2B
III END ITEM IDENTIFICATION USED ON M2A2 M3A2
MANUFACTURERS CODE 19207
MFR SOURCE CONTROLLING REFERENCE 12297981
****************************************
CONDITION:
NEW
****************************************
BRAND:
BARRY CONTROLS
****************************************

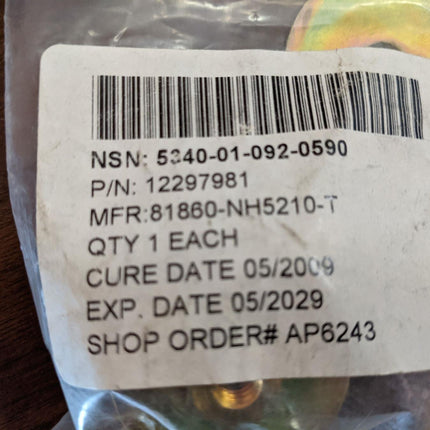

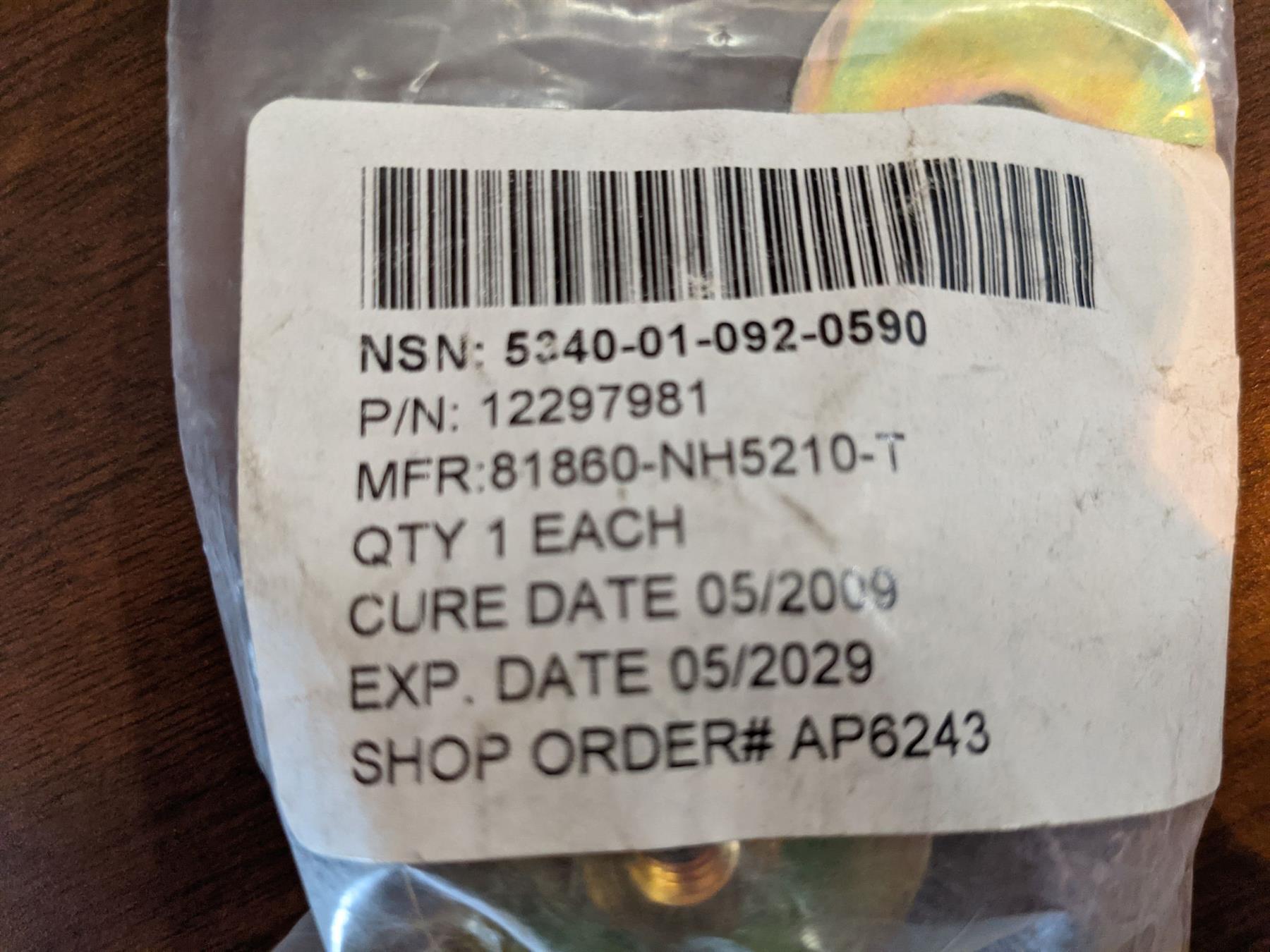

MPN:
NH5210-T
12297981
81860-NH5210-T
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
NH5210T, 12297981, 5340-01-092-0590, 01-092-0590, 5340010920590, 010920590
12297981 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
NH5210T 81860 BARRY WRIGHT CORPORATION DBA BARRY CONTROLS
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
Us Army Tank Automotive Command Amsta-im-mmbfvs
FIGHTING VEHICLE SYSTEMS, BRADLEY (BFVS)
****************************************
