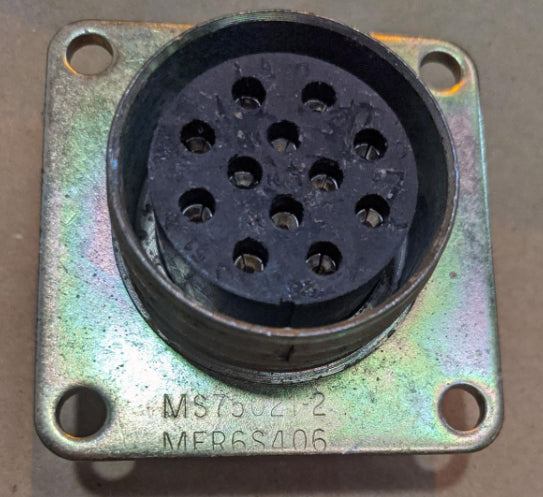

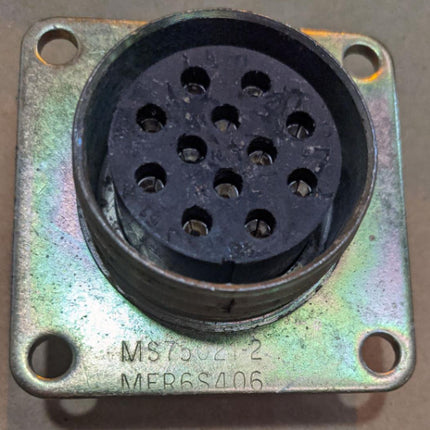

Electrical Trailer Receptacle Flange Mount Connector 12 Socket 5935-00-846-3884 2HE846
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
***DETAILS***

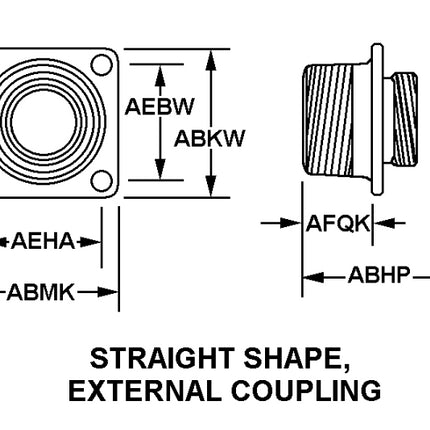

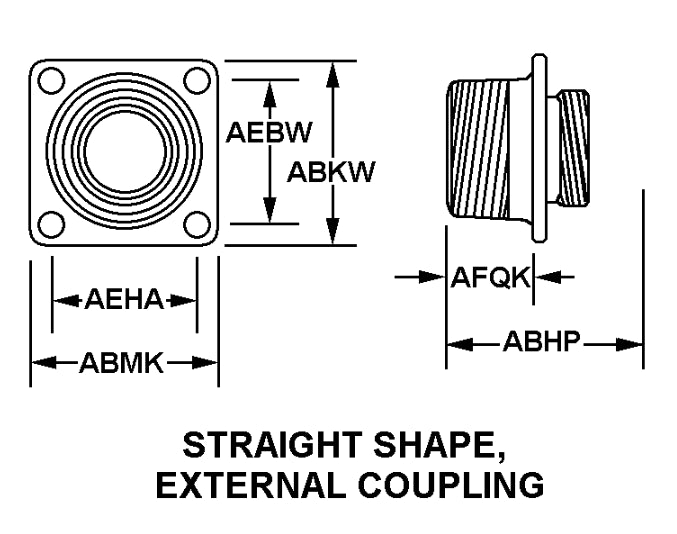

BODY STYLE 3G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH 1.596 INCHES NOMINAL
OVERALL HEIGHT 2.688 INCHES NOMINAL
OVERALL WIDTH 2.688 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT 2.188 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH 2.188 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE 0.750 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER 0.269 INCHES NOMINAL
THREADED DEVICE TYPE COUPLING FACILITY
THREAD SERIES DESIGNATOR UNEF
NOMINAL THREAD SIZE 1.625 INCHES
THREAD CLASS 2B
THREAD QUANTITY PER INCH 18
THREAD DIRECTION RIGHT-HAND
SHELL TYPE SOLID
POLARIZATION METHOD KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG 0.0
MATING END QUANTITY 1

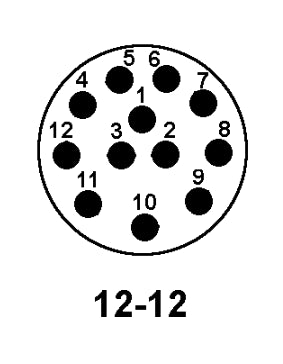

CONTACT POSITION ARRANGEMENT STYLE ANAD 12-12 SINGLE MATING END
INCLUDED CONTACT QUANTITY 1 SINGLE MATING END 1ST CONTACT GROUPING 11 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY NONREMOVABLE SINGLE MATING END 1ST CONTACT GROUPING NONREMOVABLE SINGLE MATING END 2ND CONTACT GROUPING
INCLUDED CONTACT TYPE ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS 24.0 SINGLE MATING END 1ST CONTACT GROUPING 24.0 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MATERIAL COPPER SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT SILVER SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION WATERTIGHT
SPECIAL FEATURES WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION FEAT
III PRECIOUS MATERIAL SILVER
III PRECIOUS MATERIAL AND WEIGHT 0.012 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION CONTACT SURFACES SILVER
III END ITEM IDENTIFICATION NSN 2320-01-304-2277 PLS (PALLETIZED LOADING SYSTEM); M9 ARMORED COMBAT EARTHMOVER
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS75021-2
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
***CONDITION***
NEW
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
***BRAND***
MILITARY STANDARDS
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
***NUMBER***
MS75021-2
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
***CROSSOVER - INTERCHANGE - COMPATIBLE WITH***
MS750212, MS75021-2, MS750212S, MS75021-2S, 10500537, 25116, 2HE846, 6003603051S, 60-036030-51S, 60360351S, 60-3603-51S, 811867, 8376209, 5935-00-846-3884, 00-846-3884, 5935008463884, 008463884
= = = = = = = = = = = = = = = = = = = = =
***APPLICATION***
Part Number Cage Code Manufacturer
10500537 56161 GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
25116 12472 LOCKWOOD CORP
2HE846 45152 OSHKOSH CORPORATION
2HE846 75Q65 OSHKOSH DEFENSE, LLC
60-036030-51S 77820 AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
60-3603-51S 78500 MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
811867 34623 AM GENERAL, LLC
8376209 16528 ALTEK SYSTEMS INC
8376209 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
MS75021-2 0FW39 BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
MS75021-2 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS75021-2S 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
