WHAT IS IT:
Elco Hermaphrocon 26 Pair Military Telephone Connector Contact Assy MX-3227/G M55074/4-01
****************************************
DETAILS - SPECS:
Length: 4.75 inches
Width: 1.75 inches
Height: 1.15 inches
Weight: .26 lbs
104 Position, 52 Circuit MX Contact Assembly

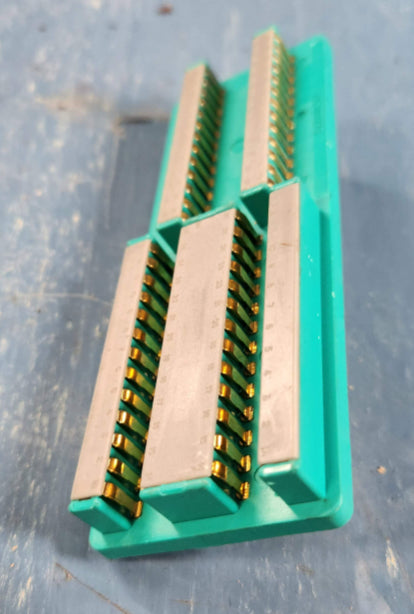

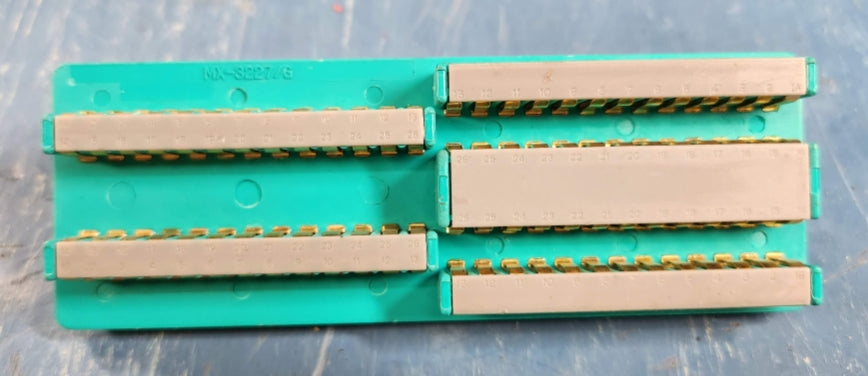

The hermaphrocon connector has redundant circuitry assuring signal continuity. For each wire termination on the back of the connector, there are two contact positions on the face of the connector networked together. Hermaphrocon connectors are all identical and mate at 180 degrees into each other.

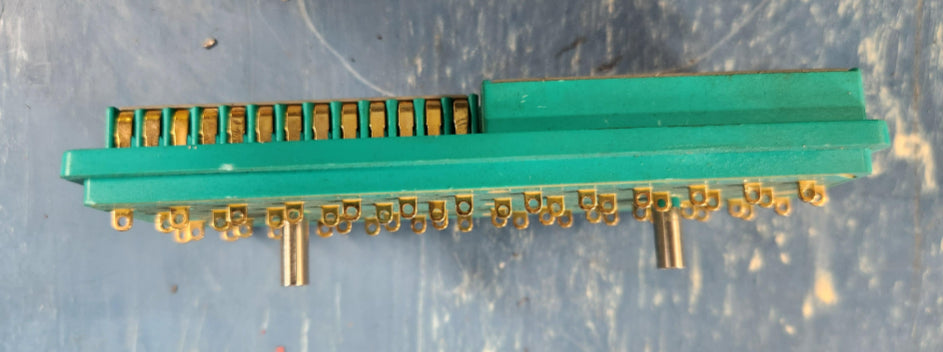

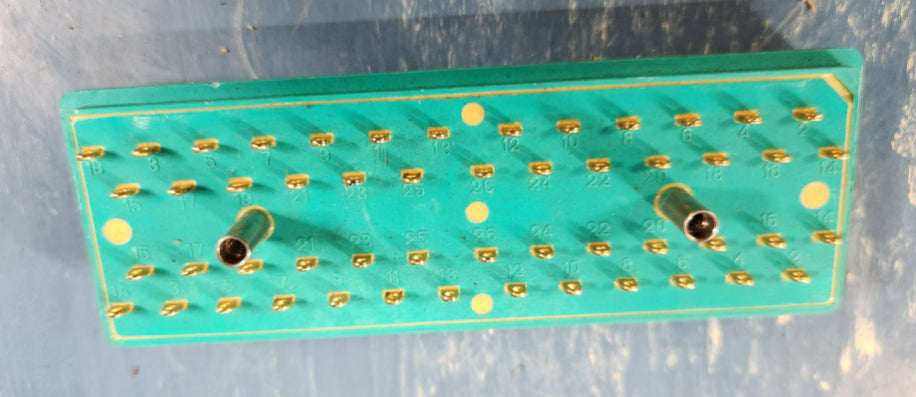

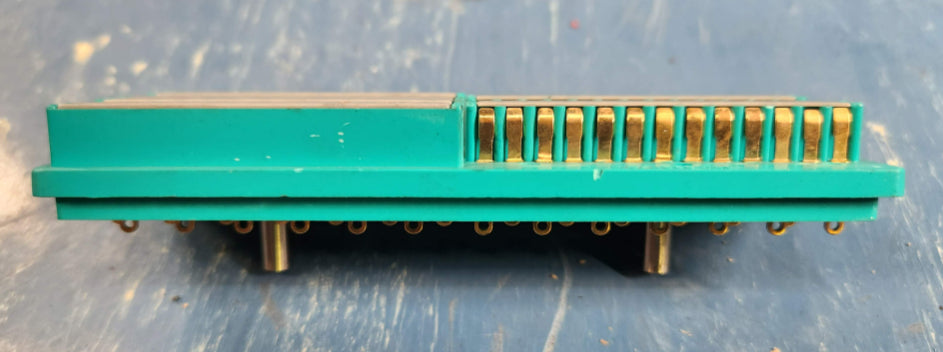

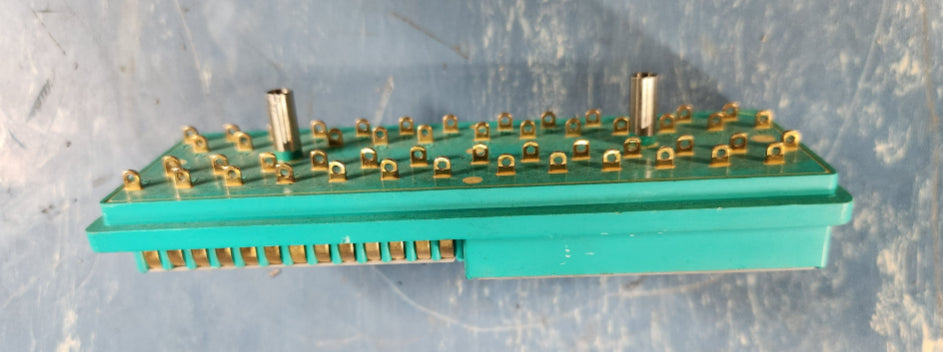

The MX-3227/G (M55074/4) is a hermaphroditic, hermetically sealed 26-pair contact insert assembly for use in the U-185/G, U-186/G and U-187/G (M55074 series) connector assemblies. The MX-3227/G features 26 pairs of fixed contacts that are internally parallel wired to corresponding solder tabs on the rear. The hermaphroditic layout of the contact assembly allows the connector assemblies and related cable assemblies to be interconnected regardless of connector/cable orientation.
Designed for mobile, transportable, and semi-permanent military communications facilities (telephone, telegraph, teletype, radio, etc.)
High-reliability Hermaphrocon connectors are designed for speedy, foolproof interconnections under extreme field conditions, are impossible to mismate, even in the dark
Hermaphrocon plugs mate interchangeably with both receptacles and plugs, permitting connection of either cable end to any other cable end of distribution box
Redundant Hermaphrocon design provides 104 contacts for 52 cable conductors (52 pairs) assures circuit continuity with up to 50% contact damage (jumpers linking redundant contact pairs are welded for reliability)
Rugged, waterproof Hermaphrocon connectors resist wear and damage caused by dragging on the ground or through water, even without covers
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
ELCO
****************************************
MPN:
MX-3227/G
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
5935-01-142-9742
08 2260 9010 00 000
M55074/4-01
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
The intended use of these connectors is for military telephone communication systems using 26-pair cable, telephone WM-130/G
Used On The Cj-185bg, Cj-187ag And Cj-186g Connectors
Data Network An/tsq-2
M-55074/4-01system Control Group
****************************************
