WHAT IS IT:

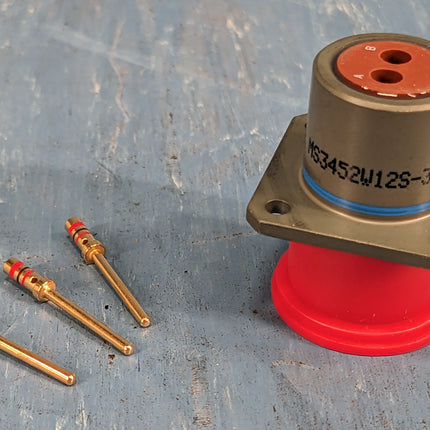

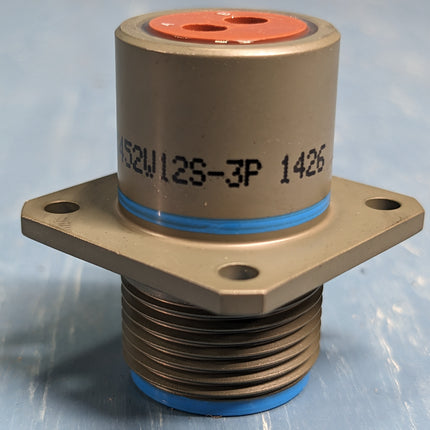

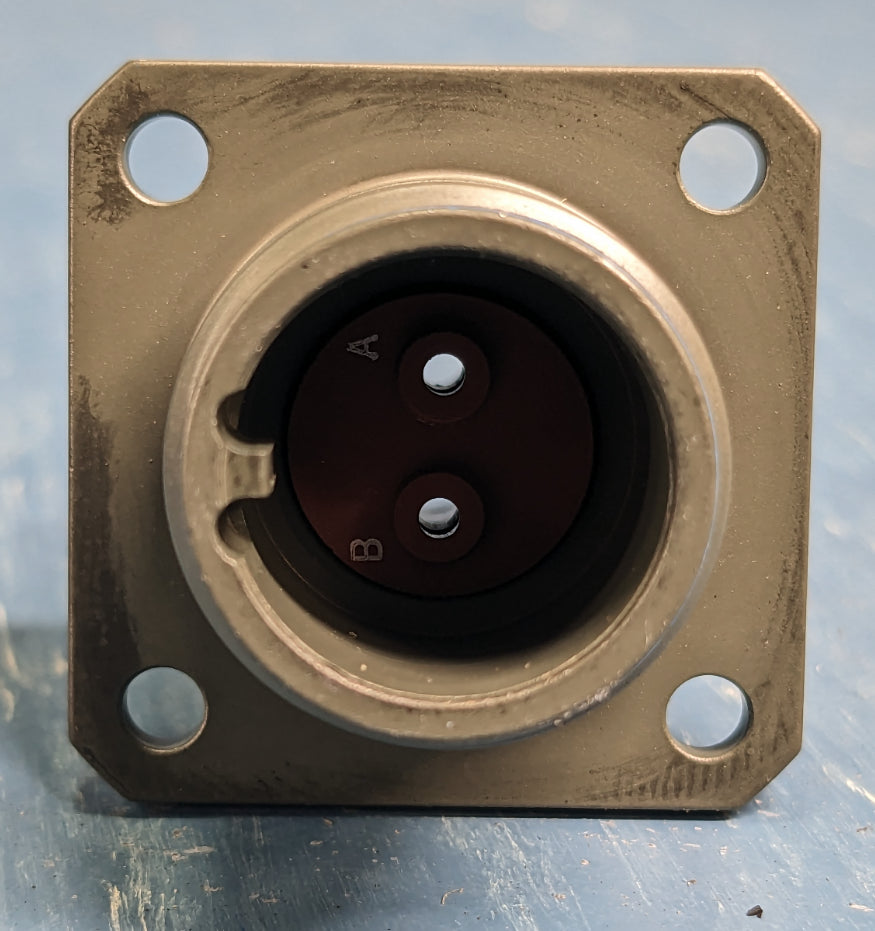

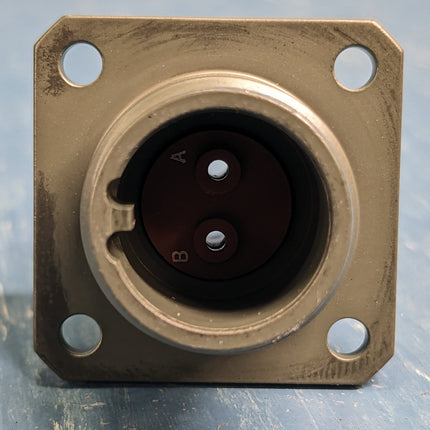

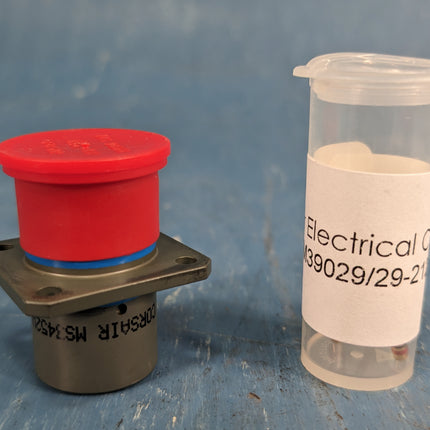

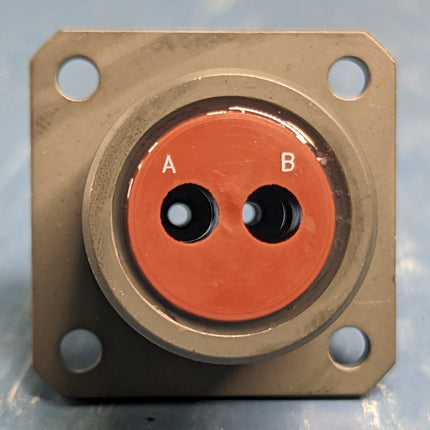

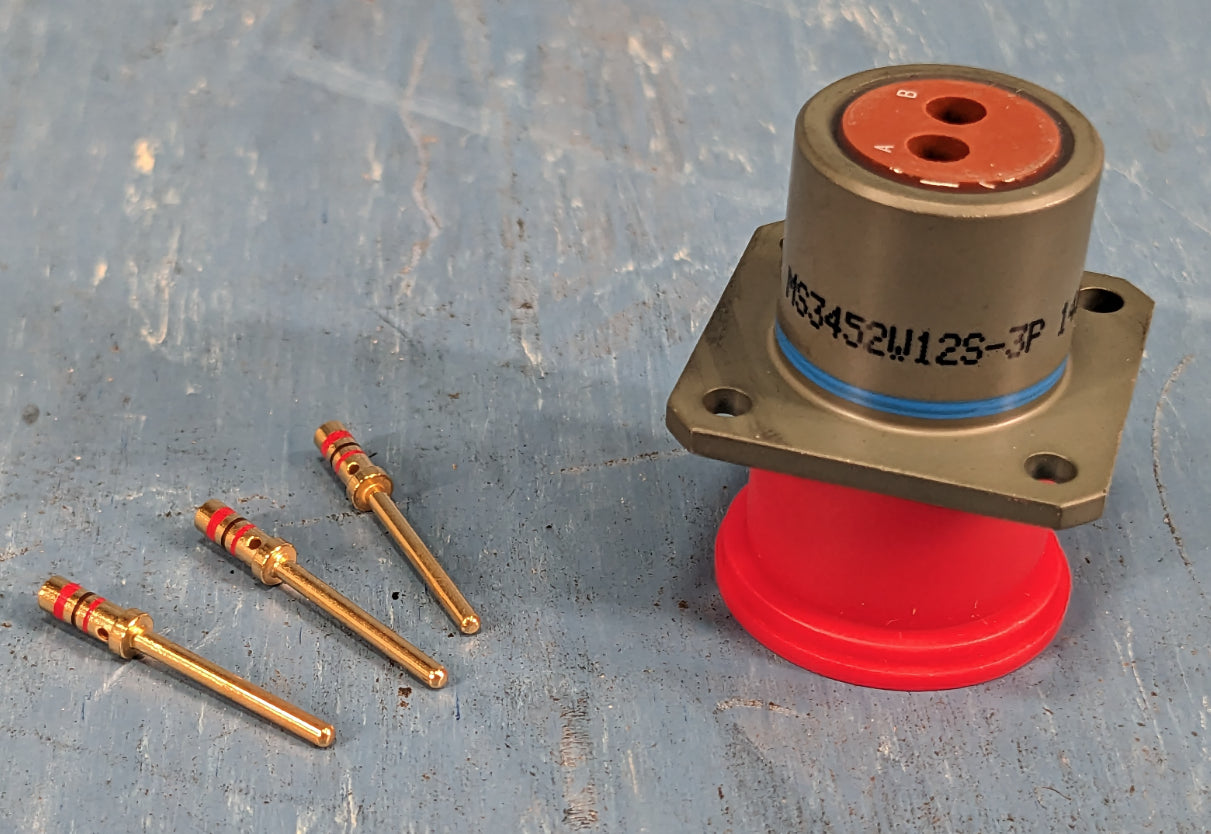

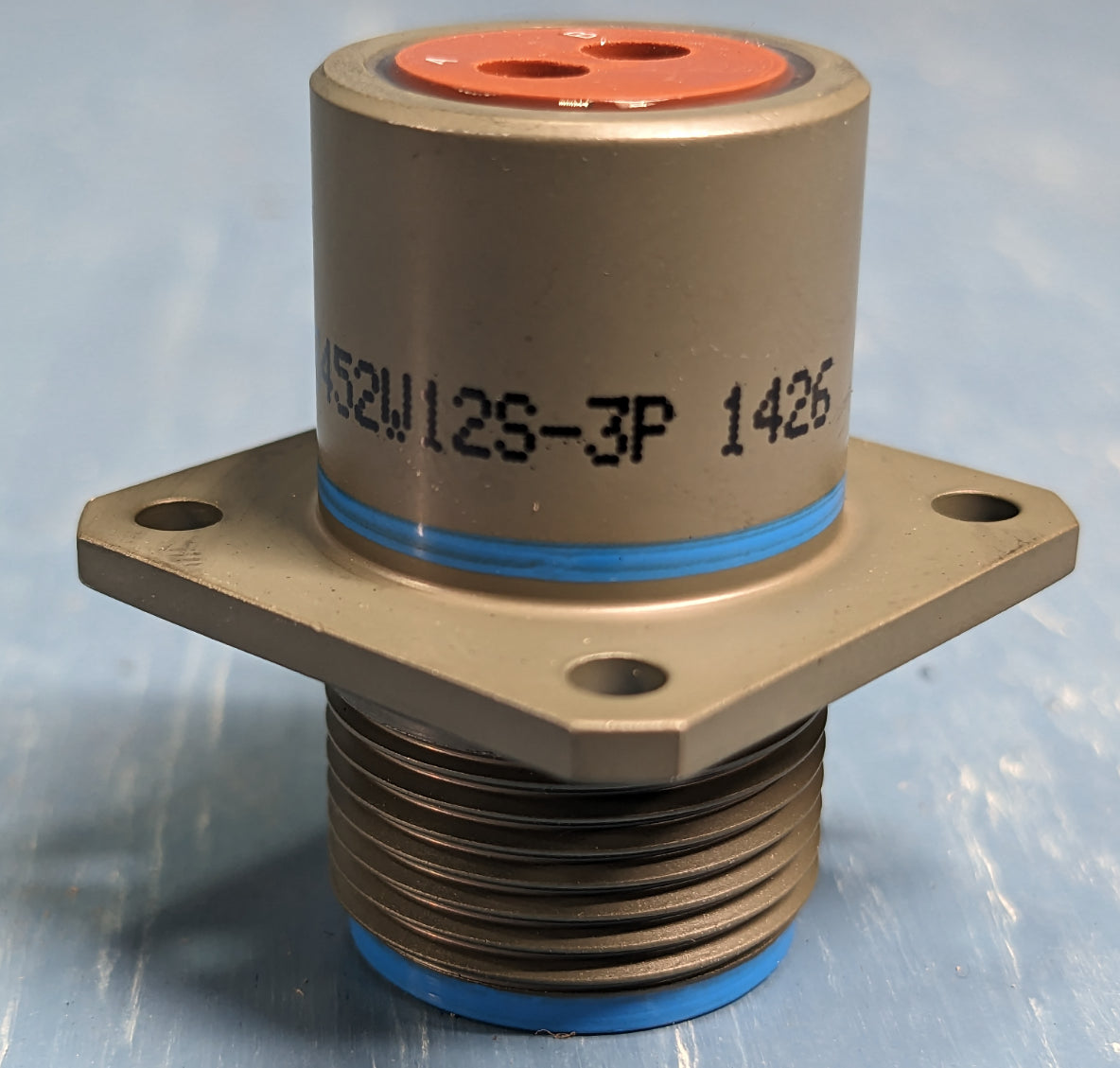

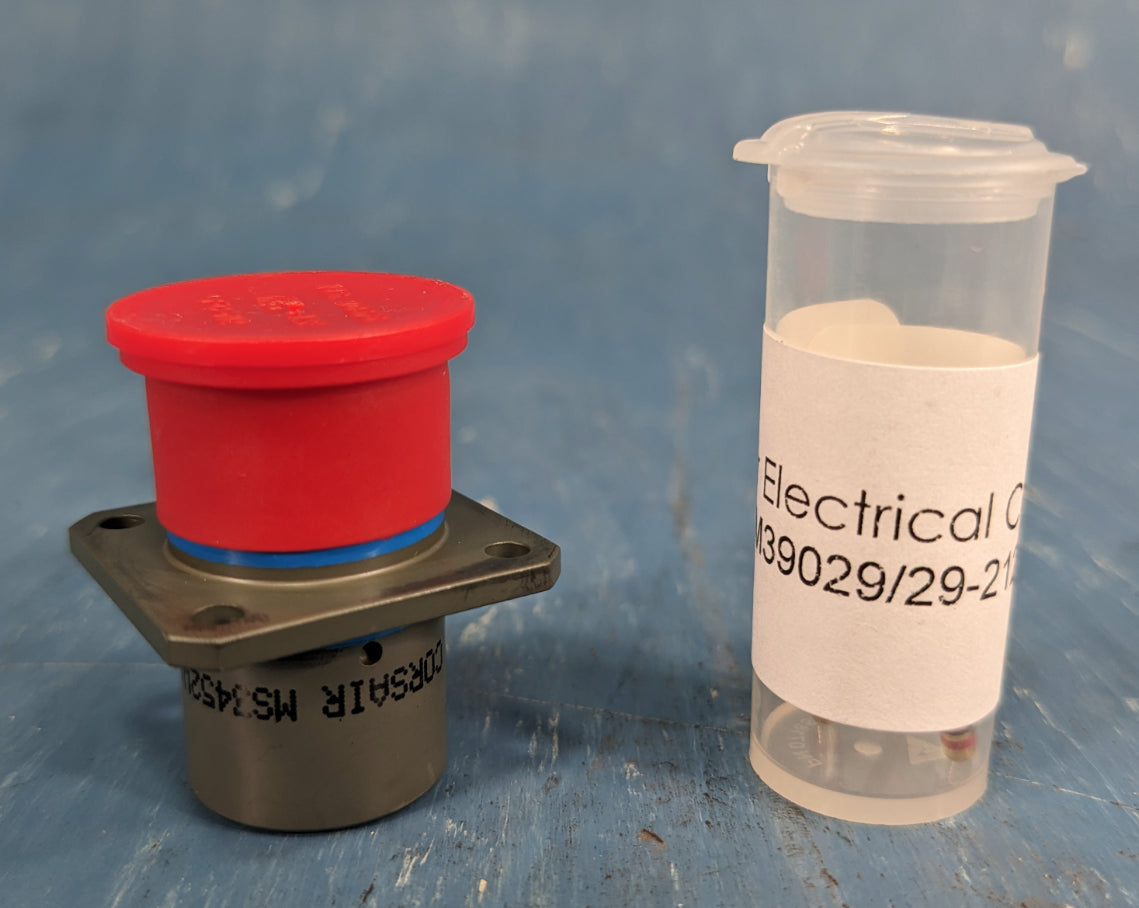

Box Mounting Receptacle Connector with Contacts MS3452W12S-3P 5935010921050
****************************************
DETAILS - SPECS:

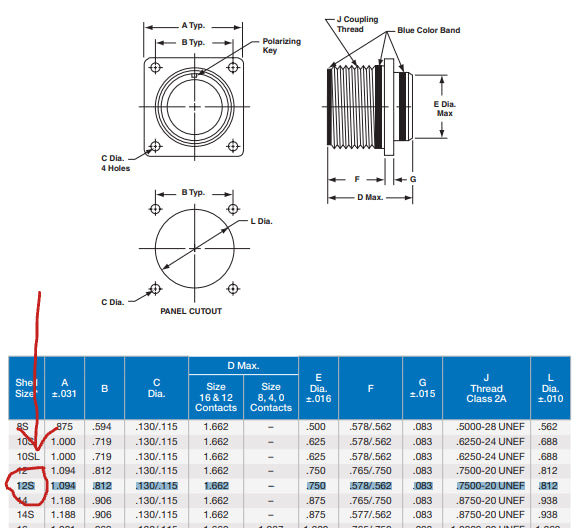

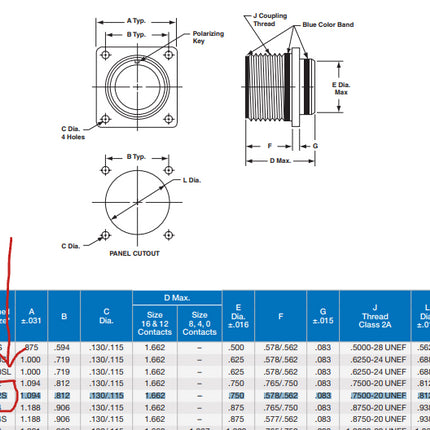

BODY STYLE 1G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH 1.662 INCHES MAXIMUM
OVERALL HEIGHT 1.094 INCHES NOMINAL
OVERALL WIDTH 1.094 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT 0.812 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH 0.812 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE 0.562 INCHES MINIMUM AND 0.593 INCHES MAXIMUM
UNTHREADED MOUNTING HOLE DIAMETER 0.115 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
CONNECTOR LOCKING METHOD EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE COUPLING FACILITY
THREAD SERIES DESIGNATOR UNEF
NOMINAL THREAD SIZE 0.750 INCHES
THREAD CLASS 2A
THREAD QUANTITY PER INCH 20
THREAD DIRECTION RIGHT-HAND
NOMINAL THREAD LENGTH 0.375 INCHES
SHELL TYPE SOLID
SHELL MATERIAL ALUMINUM ALLOY
SHELL SURFACE TREATMENT CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG 0.0
MATING END QUANTITY 1

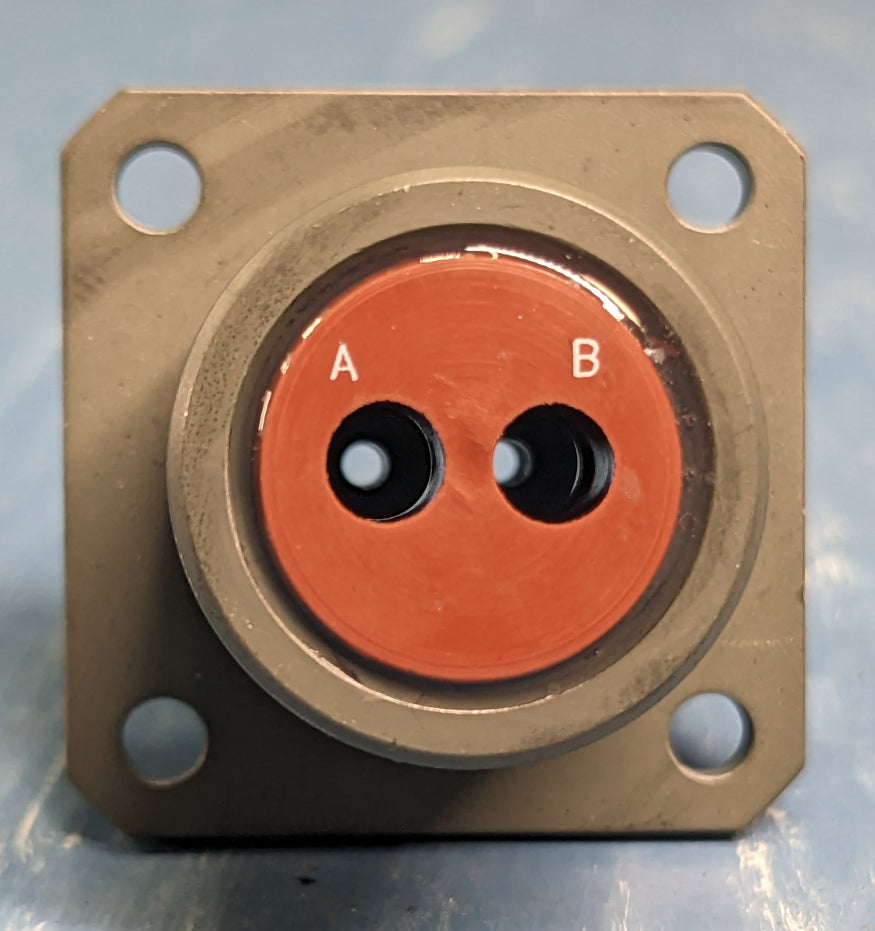

CONTACT POSITION ARRANGEMENT STYLE ACAB 12S-3 SINGLE MATING END
INSERT MATERIAL SILICON SINGLE MATING END

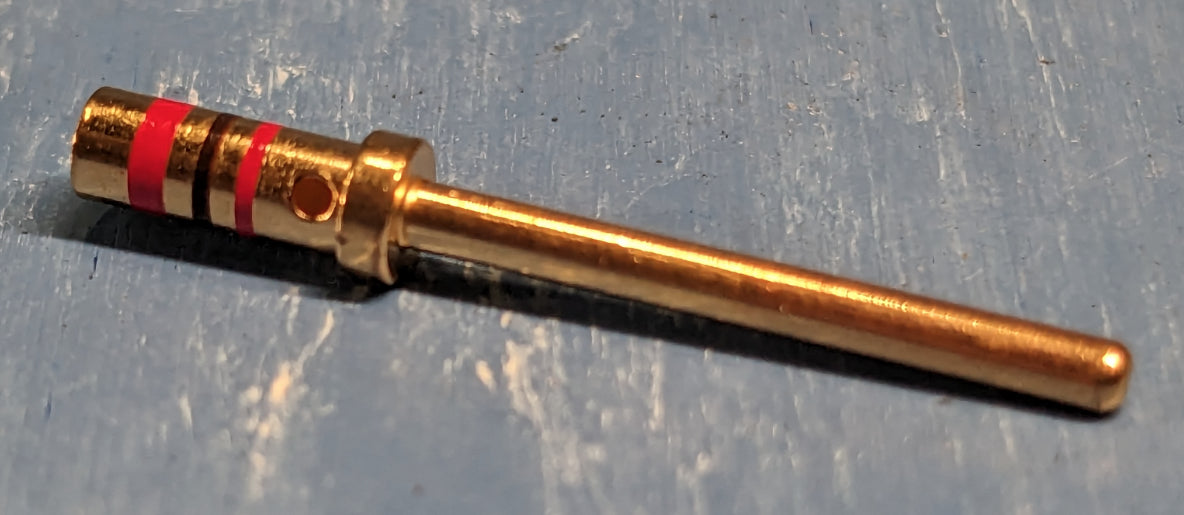

INCLUDED CONTACT QUANTITY 2 ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT REMOVABILITY REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS 700.0 SINGLE MATING END SINGLE CONTACT GROUPING

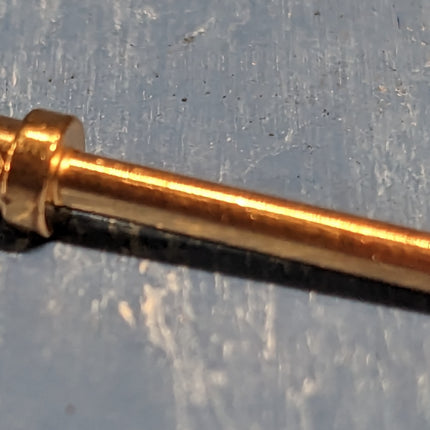

CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT NICKEL AND GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-N-290 CL 1,GRADE B FED SPEC 1ST TREATMENT RESPONSE AND MIL-G-45204 TY 1,GRADE B MIL SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION MOISTURE PROOF AND SALT WATER RESISTANT AND
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
LOCKHEED MARTIN
****************************************
MPN:
MS3452W 12S-3P
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
MS3102A12S3P, MS3102E123P, MS3102E12-3P, MS3102E1253P, MS3102E12S3P, MS3102R1283P, MS3102R12S3P, MS3102R12S-3P, MS3452L12S3P, MS3452L12S-3P, MS3452W12S3P, MS3452W12S-3P, AS50151 , MILC5015, MIL-C-5015, 102142123P, 10-214212-3P, 14300002, 1430-0002, 5935-01-092-1050, 01-092-1050, 5935010921050, 010921050
AS50151 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-C-5015 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3452W12S-3P 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS3452W12S-3P 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
International Hmmwv Humvee Model M1097
****************************************
