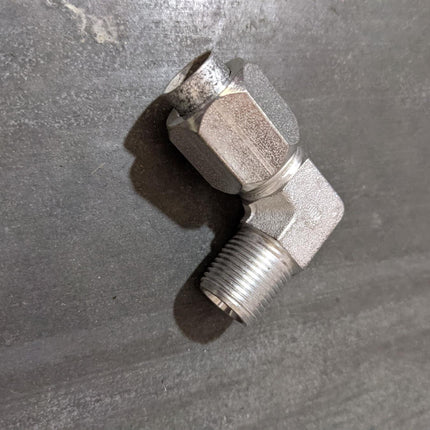

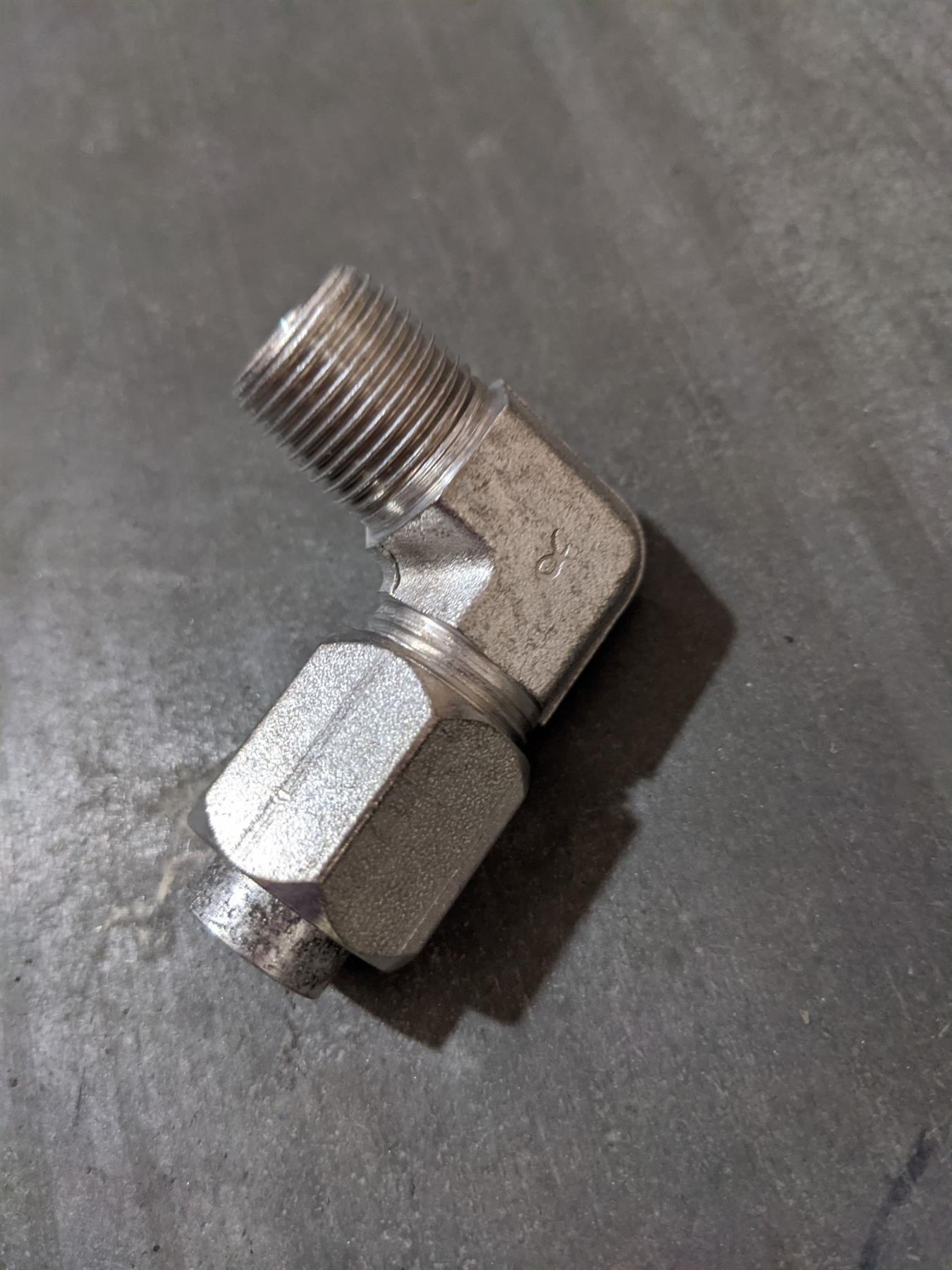

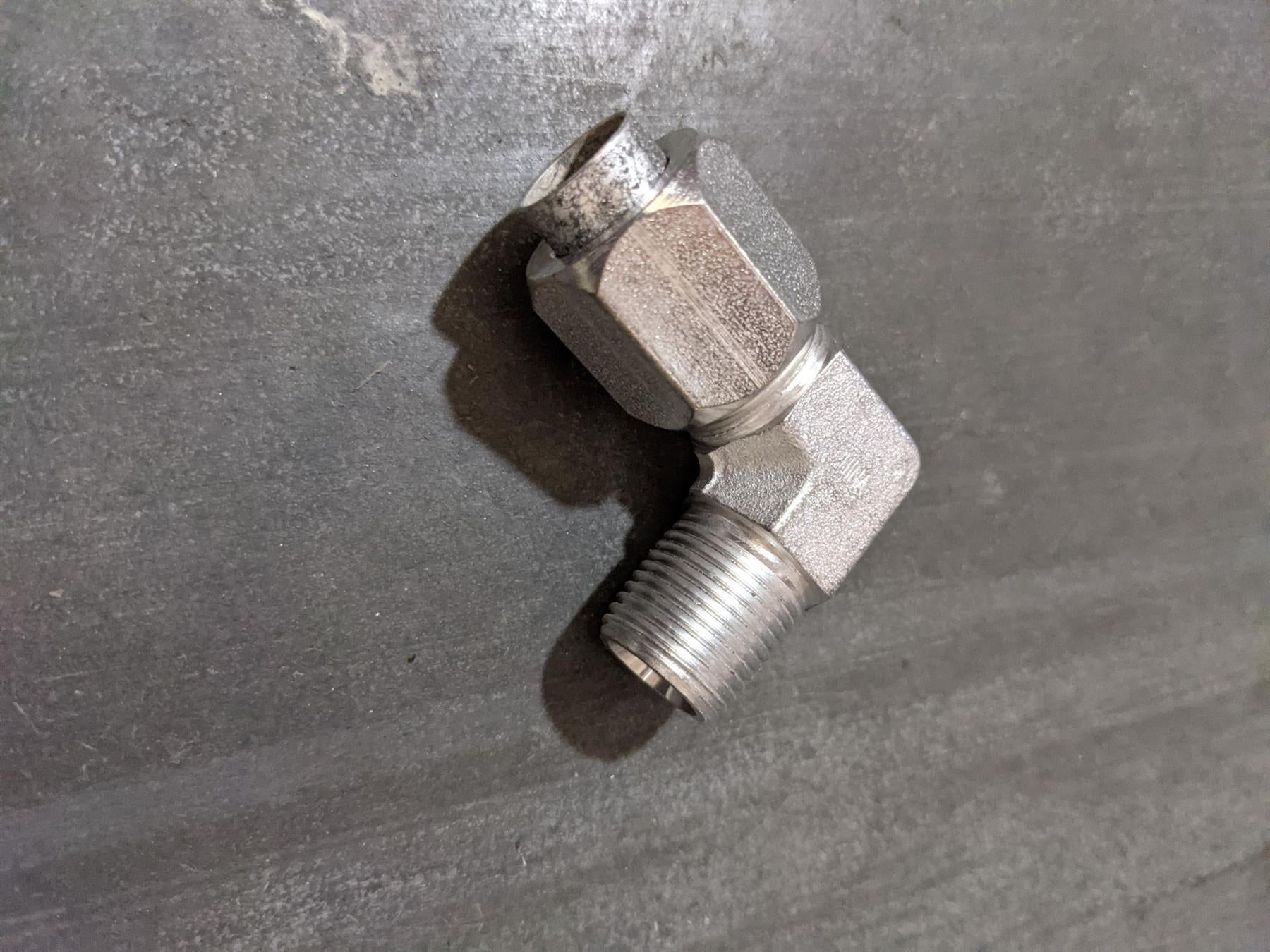

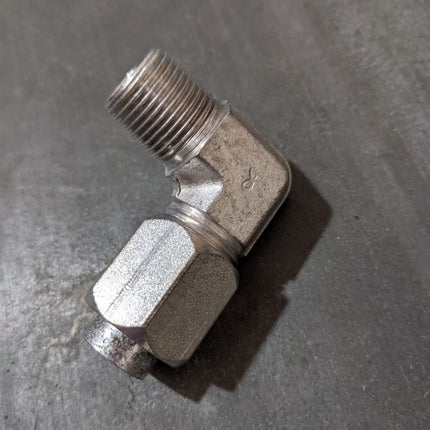

90 Elbow Fitting Pipe to Tube Hydraulic Hose Adapter MS51504A8 2024-6-8S 3/8-18 3/4-16
4730005551764WHAT IS IT:
90 Elbow Fitting Pipe to Tube Hydraulic Hose Adapter MS51504A8 2024-6-8S 3/8-18 3/4-16
****************************************
DETAILS - SPECS:
ITEM TYPE: NPTF Male/SAE 37° Male 90° Elbow Adapter
END SIZE 2: 3/4 IN
WORKING TEMPERATURE - MIN: -65 °F
WORKING PRESSURE: 4000 Psi
END SIZE 1: 3/8 IN
INSIDE DIAMETER (BORE HOLE SIZE): .395 in
HEX SIZE 1: .75 in
END GENDER 2: Male
DROP DIMENSION: 1.25
THREAD SIZE 1: 3/8-18
THREAD SIZE 2: 3/4-16
END TYPE 2: SAE 37
APPLICATION: Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
END GENDER 1: Male
END TYPE 1: NPTF
WORKING TEMPERATURE - MAX: 400 °F
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
LOCKHEED MARTIN
****************************************
MPN:
MS51504A8
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
MS51504A8, MS51504B8, A107A7, A107A-7, AC1356, AC-1-356, ADP757, BC10008471, C107A1, C107A-1, C5405X8, SF102568, SF1025-6-8, W5405X8, EE42238, LT1968, LT196-8, MILF18866, MIL-F-18866, MILF550, 1025388, 1025-3-8-8, 107A7, 11868, 11-8-6-8, 202468, 2024-6-8, 202468S, 2024-6-8S, 2032010, 210368, 2103-6-8, 5405X8, 5822X8, 624VLJ00049, 6MA8JMS, 770047, 77004-7, 8CBTXS, 8CBTX-S, 90725486, 907254-86, 9118791, 980058, 4730-00-555-1764, 00-555-1764, 4730005551764, 005551764
1025-3-8-8 98441 PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
107A7 03533 CRANE CARRIER COMPANY
11-8-6-8 04285 ATHEY PRODUCTS CORP
2024-6-8 63117 SICARD A DIVISION OF SMI-SNOWBLAST INC
2024-6-8 K4241 INDUSTRIAL POWER UNITS LTD
2024-6-8S 00624 EATON CORPORATION DBA AEROSPACE DIV
2024-6-8S 01276 EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
2024-6-8S Z0950 EATON FLUID POWER
2024-6-8S Z09P0 EATON FLUID POWER
2024-6-8S Z4470 EATON INDUSTRIES PTY LTD
2032010 14414 EATON CORP FORESTRY AND CONSTRUCTION EQUIPMENT DIV BATAVIA PLANT
2103-6-8 98441 PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
5405X8 79470 DANA CORP WEATHERHEAD DIV
5822X8 79470 DANA CORP WEATHERHEAD DIV
624VLJ00049 55207 ARROW-MASTER, INCORPORATED
6MA8JMS 63906 VEYANCE TECHNOLOGIES, INC. DIV VEYANCE NORTH AMERICA
77004-7 95097 LITTLE GIANT CRANE AND SHOVEL INC
8CBTX-S 30780 PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
8CBTX-S 98441 PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
907254-86 89413 SULLIVAN MACHINERY CO
9118791 63117 SICARD A DIVISION OF SMI-SNOWBLAST INC
980058 97907 TEREX CORP
A107A-7 03533 CRANE CARRIER COMPANY
AC-1-356 46717 PETTIBONE LLC
ADP757 93234 WORTHINGTON COMPRESSORS INC AIR POWER AND CONSTRUCTION EQUIP DIV
BC10008471 44185 NMC/WOLLARD, INC.
C107A-1 03533 CRANE CARRIER COMPANY
C5405X8 79470 DANA CORP WEATHERHEAD DIV
EE42238 45152 OSHKOSH CORPORATION
EE42238 75Q65 OSHKOSH DEFENSE, LLC
LT196-8 46717 PETTIBONE LLC
MIL-F-18866 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILF550 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51504A8 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51504B8 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SF1025-6-8 03925 PARKER-HANNIFIN, CORPORATION DBA PARKER SERVICE CENTER
W5405X8 79470 DANA CORP WEATHERHEAD DIV
****************************************
