Description
WHAT IS IT:

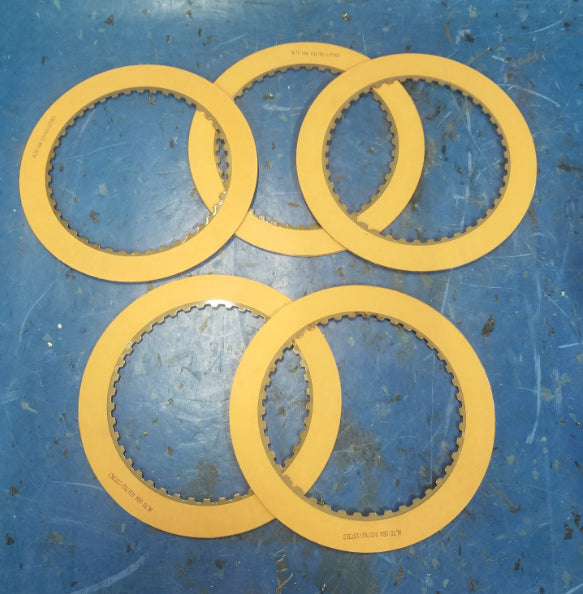

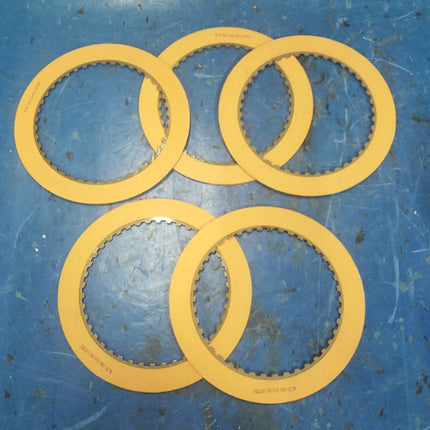

5-PACK 5.893” Friction Clutch Plate Forward Direct HMMWV GM TH400 3L80 4L80E
****************************************
DETAILS - SPECS:
Position: Forward Clutch and Direct Clutch Thickness: 0.080" (2.03 mm)
Outer Diameter: 5.893" (150.06 mm) Inner Diameter: 4.334" (110.08)
Tooth Count: 42 teeth Brand: Tri Component
Fits the following transmissions: TH-400 & TH-425, 1965-1998 (TH400, THM-400, THM400) 4L80E / 4L85, 1991-1995 3L80 & 3L80E, 1965-1998
DISK MATERIAL: STEEL COMP 1035
DESIGN TYPE: DRY
FLEXIBILITY: RIGID
DISK TYPE: INTERNAL TEETH
CONSTRUCTION: SOLID
OUTSIDE DIAMETER: 10.540 INCHES NOMINAL
TEETH QUANTITY PER DISK: 42
THICKNESS: 0.032 INCHES NOMINAL
MATERIAL THICKNESS: 0.026 INCHES NOMINAL
MATERIAL OUTSIDE DIAMETER: 5.895 INCHES NOMINAL
MATERIAL INSIDE DIAMETER: 4.325 INCHES NOMINAL
TEETH PITCH DIAMETER: 4.308 INCHES NOMINAL
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
ALTO USA
****************************************
MPN:

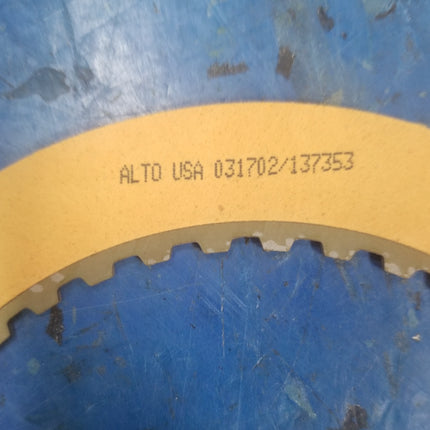

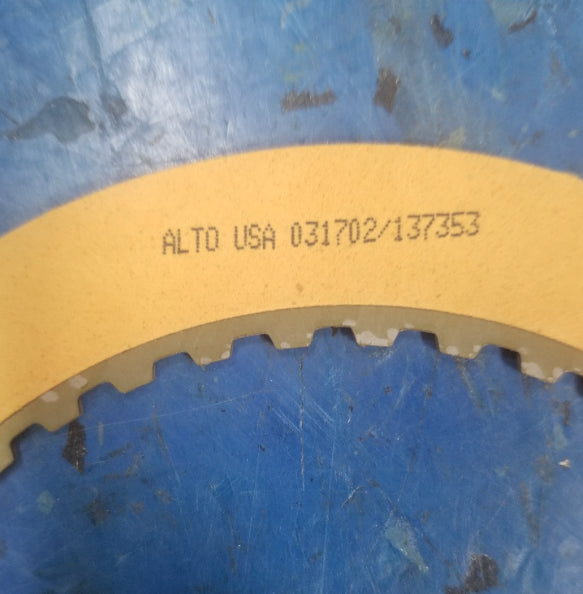

031702 137353
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
Industry Part ID: 16631AM, 332-1004, 16631, 34106, 8655619, 8624198, 8623483, B34304, A34106, R34106, 34304, 24202646, 6835151
C89821, C8982-1 , HI118282, HI1-1828-2 , HI1-1828A/883 , HI11828A2, HI1-1828A2 , HI1-1828A-2 , HI11828A8, HI1-1828A-8 , HI11828A883, 0141A0480 , 031702, 24202646, 83B012001, 83B012-001 , 83C012001, 83C012-001 , 8624198, 8626865, 8655619, 2520-01-150-3932, 01-150-3932, 2520011503932, 011503932
031702 1HQE5 ALTO PRODUCTS CORP.
24202646 11862 GENERAL MOTORS CORP CHEVROLET MOTOR DIV
24202646 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS
2520PL0740938 9009H INSPEKTORAT WSPARCIA SIL ZBROJNYCH
8624198 11862 GENERAL MOTORS CORP CHEVROLET MOTOR DIV
8626865 23862 MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
8655619 11862 GENERAL MOTORS CORP CHEVROLET MOTOR DIV
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
H1 Hummer
BENTLEY 1968-1982
BUICK 1965-1981
CADILLAC 1964-1989
CHEVROLET 1966-1990
GMC 1966-1990
JAGUAR 1977-1990
JEEP 1965-1979
OLDSMOBILE 1964-1980
PONTIAC 1966-1977
ROLLS-ROYCE 1971-1990
Fits the following transmissions:
TH-400 & TH-425, 1965-1998 (TH400, THM-400, THM400)
4L80E / 4L85, 1991-1995
3L80 & 3L80E, 1965-1998
GENERAL MOTORS CORP CHEVROLET MOTOR DIV SPECIAL PRODUCTS DEPT TRUCK, VEHICLE SYSTEM, 1 1/4-TON (HMMWV) TRACTOR, AIRCRAFT TOWING, MB-4 TRUCK, AMBULANCE, 2-LITTER, SOFT TOP, 1 TRUCK, UTILITIES, TOW CARRIER-W/SA, 1 1/
****************************************
