Description
WHAT IS IT:

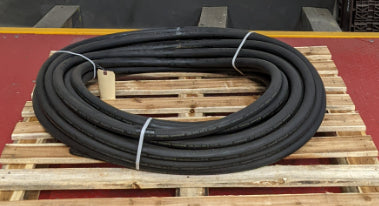

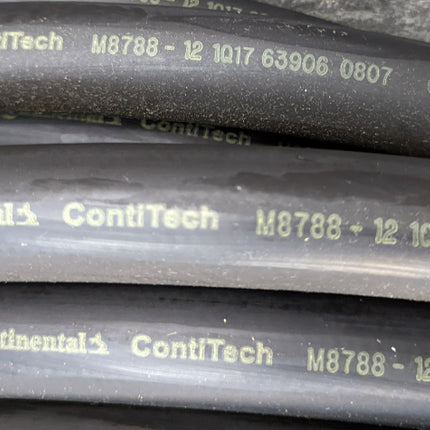

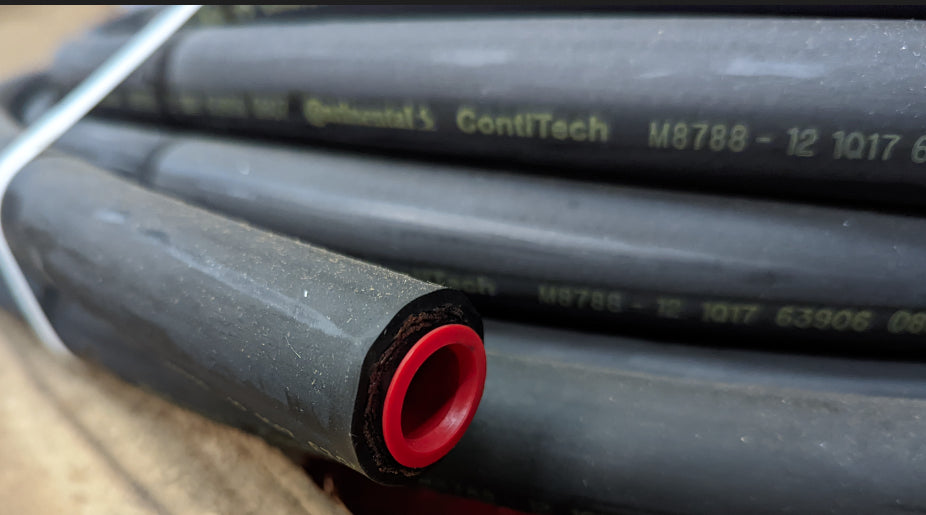

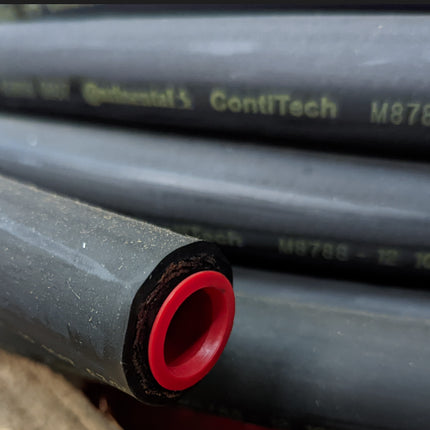

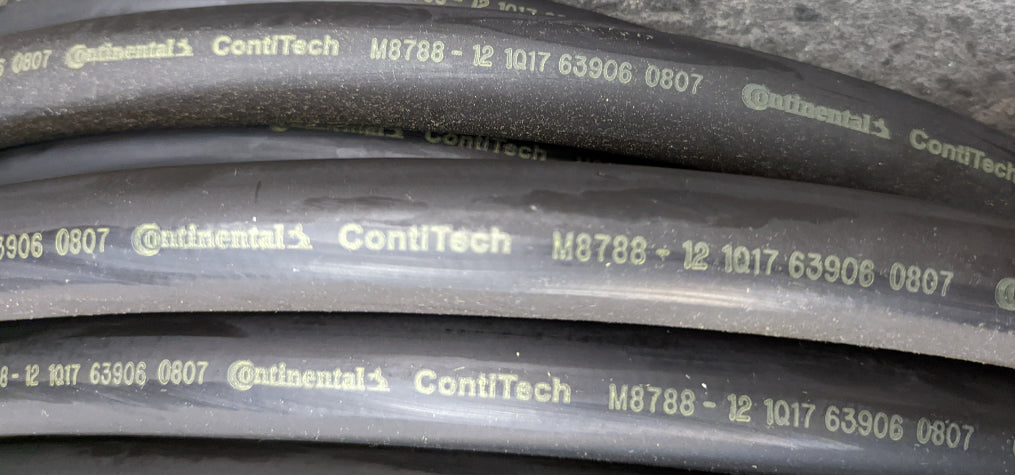

125' FEET Continental Contitech Hydraulic Oil Hose M8788-12 4720005548088
****************************************
CONDITION:
Brand New
****************************************
BRAND:
Continental
****************************************
MPN:
M8788-12B
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
4720005548088
M8788-12B
MIL-H-8788C
MIL-H-8788
****************************************
APPLICATION:
WEAPON SYSTEM
485L TACS
HELICOPTER, CH-53 D/E
MISSILE, MINUTEMAN III, LGM-30
SUPPORT EQUIPMENT, T-38 AIRCRAFT
AIRCRAFT, THUNDERBOLT II, A-10
VEHICLE, RECOVERY M-578
AIRCRAFT, PHANTOM F-4
CARGO SYSTEM, 463L
ADVANCED AIR TRAFFIC CONTR. & LAND. SYS (ATCALS) 4
AIRCRAFT, FREEDOM FIGHTER F-5
HELICOPTERS CH-53
AIRCRAFT, STRATOFORTRESS B-52
SUPPORT EQUIPMENT, T-37 AIRCRAFT
SIMULATOR, F-4
AIRCRAFT, EAGLE F-15
SUPPORT EQUIPMENT, C-5 AIRCRAFT
HELICOPTER, HH-60
AIRCRAFT, GALAXY C-5
HELICOPTER, H1 ALL VERSIONS
HELICOPTER, ADVANCE ATTACK, AH-1W
AIRCRAFT, F-16
AIRCRAFT, HERCULES C-130
AIRCRAFT, SOF (AC-130H, AC-130J, AC-130U, EC-130E,
SUPPORT EQUIPMENT, B-52 AIRCRAFT
AIRCRAFT, STRATOLIFTER C/KC-135
***************************************
COUNTRY OF ORIGIN:
Unknown
****************************************
OTHER:

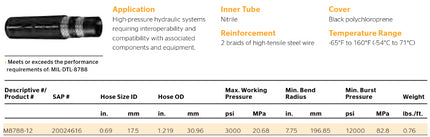

0.688" 17.48 mm I.D. INSIDE DIAMETER
1.219" 30.96 mm O.D. OUTSIDE DIAMETER
3,000 PSI, 20.68 mpa
7.75” 196.85 mm Min Bend Radius
48,000 psi, 330.95 mpa Min Burst Pressure
0.76 Lb per Ft
CROSS-SECTIONAL SHAPE STYLE: ROUND
INSIDE DIAMETER: 0.688 INCHES NOMINAL
TEMP RATING: -65.0 DEG FAHRENHEIT AND
TEMP RATING: 165.0 DEG FAHRENHEIT SINGLE RESPONSE
OUTSIDE DIAMETER: 1.219 INCHES NOMINAL
MINIMUM INSIDE BENDING RADIUS: 7.750 INCHES
EXTERIOR COLOR BLACK
END ITEM IDENTIFICATION GRUMMAN A10 AIRCRAFT
FEATURES PROVIDED ELECTROSTATIC DISCHARGE CAPABILITY
BURST TEST PRESSURE 12000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
LAYER COMPOSITION AND LOCATION 1ST LAYER BRAIDED STEEL WIRE
LAYER COMPOSITION AND LOCATION 2ND LAYER BRAIDED STEEL WIRE
LAYER COMPOSITION AND LOCATION OUTER LAYER MOLDED RUBBER
MAXIMUM OPERATING PRESSURE 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
HYDROSTATIC TEST PRESSURE 6000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
OUTER COVERING ENVIRONMENTAL PROTECTION ABRASION RESISTANT AND
OUTER COVERING ENVIRONMENTAL PROTECTION OIL RESISTANT
INSIDE SURFACE CONDITION SMOOTH
MATERIAL RUBBER SYNTHETIC TUBE
MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON SINGLE RESPONSE
SPEC/STD CONTROLLING DATA
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-H-8788
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M8788-12B
SPECIFICATION/STANDARD DATA 81349-MIL-H-8788 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA 12 SIZE
