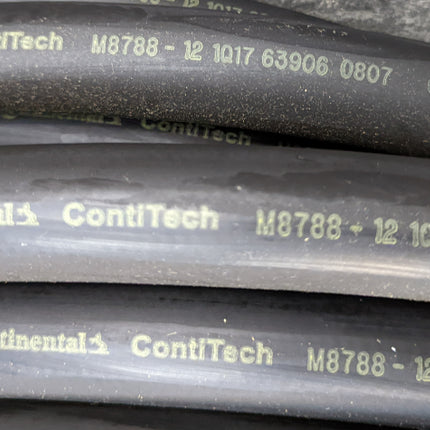

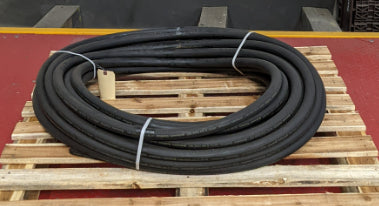

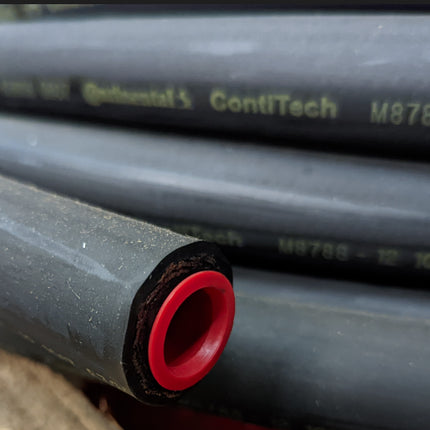

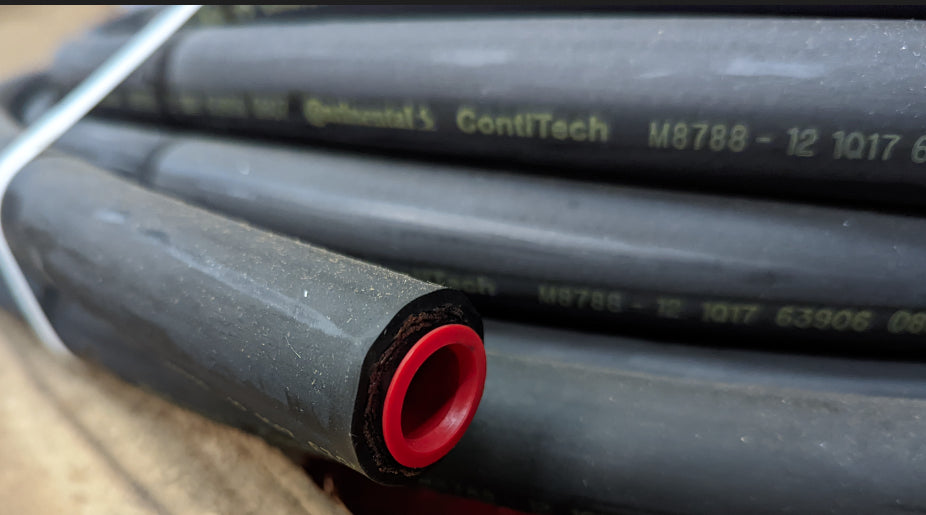

110' FEET Continental Contitech Hydraulic Oil Hose M8788-12 4720005548088

WHAT IS IT:

110' FEET Continental Contitech Hydraulic Oil Hose M8788-12 4720005548088

****************************************

CONDITION:

Brand New

****************************************

BRAND:

Continental

****************************************

MPN:

M8788-12B

****************************************

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

4720005548088

M8788-12B

MIL-H-8788C

MIL-H-8788

****************************************

APPLICATION:

WEAPON SYSTEM

485L TACS

HELICOPTER, CH-53 D/E

MISSILE, MINUTEMAN III, LGM-30

SUPPORT EQUIPMENT, T-38 AIRCRAFT

AIRCRAFT, THUNDERBOLT II, A-10

VEHICLE, RECOVERY M-578

AIRCRAFT, PHANTOM F-4

CARGO SYSTEM, 463L

ADVANCED AIR TRAFFIC CONTR. & LAND. SYS (ATCALS) 4

AIRCRAFT, FREEDOM FIGHTER F-5

HELICOPTERS CH-53

AIRCRAFT, STRATOFORTRESS B-52

SUPPORT EQUIPMENT, T-37 AIRCRAFT

SIMULATOR, F-4

AIRCRAFT, EAGLE F-15

SUPPORT EQUIPMENT, C-5 AIRCRAFT

HELICOPTER, HH-60

AIRCRAFT, GALAXY C-5

HELICOPTER, H1 ALL VERSIONS

HELICOPTER, ADVANCE ATTACK, AH-1W

AIRCRAFT, F-16

AIRCRAFT, HERCULES C-130

AIRCRAFT, SOF (AC-130H, AC-130J, AC-130U, EC-130E,

SUPPORT EQUIPMENT, B-52 AIRCRAFT

AIRCRAFT, STRATOLIFTER C/KC-135

***************************************

COUNTRY OF ORIGIN:

Unknown

****************************************

OTHER:

0.688" 17.48 mm I.D. INSIDE DIAMETER

1.219" 30.96 mm O.D. OUTSIDE DIAMETER

3,000 PSI, 20.68 mpa

7.75” 196.85 mm Min Bend Radius

48,000 psi, 330.95 mpa Min Burst Pressure

0.76 Lb per Ft

CROSS-SECTIONAL SHAPE STYLE: ROUND

INSIDE DIAMETER: 0.688 INCHES NOMINAL

TEMP RATING: -65.0 DEG FAHRENHEIT AND

TEMP RATING: 165.0 DEG FAHRENHEIT SINGLE RESPONSE

OUTSIDE DIAMETER: 1.219 INCHES NOMINAL

MINIMUM INSIDE BENDING RADIUS: 7.750 INCHES

EXTERIOR COLOR BLACK

END ITEM IDENTIFICATION GRUMMAN A10 AIRCRAFT

FEATURES PROVIDED ELECTROSTATIC DISCHARGE CAPABILITY

BURST TEST PRESSURE 12000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

LAYER COMPOSITION AND LOCATION 1ST LAYER BRAIDED STEEL WIRE

LAYER COMPOSITION AND LOCATION 2ND LAYER BRAIDED STEEL WIRE

LAYER COMPOSITION AND LOCATION OUTER LAYER MOLDED RUBBER

MAXIMUM OPERATING PRESSURE 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

HYDROSTATIC TEST PRESSURE 6000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

OUTER COVERING ENVIRONMENTAL PROTECTION ABRASION RESISTANT AND

OUTER COVERING ENVIRONMENTAL PROTECTION OIL RESISTANT

INSIDE SURFACE CONDITION SMOOTH

MATERIAL RUBBER SYNTHETIC TUBE

MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON SINGLE RESPONSE

SPEC/STD CONTROLLING DATA

MANUFACTURERS CODE 81349

NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-H-8788

MANUFACTURERS CODE 81349

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M8788-12B

SPECIFICATION/STANDARD DATA 81349-MIL-H-8788 GOVERNMENT SPECIFICATION

NONDEFINITIVE SPEC/STD DATA 12 SIZE
