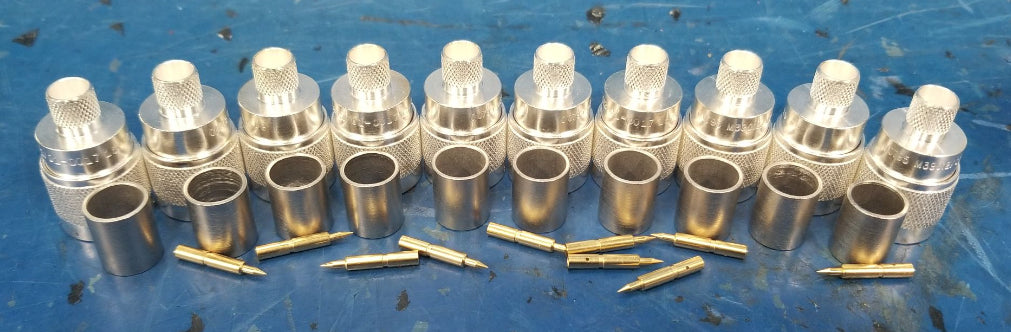

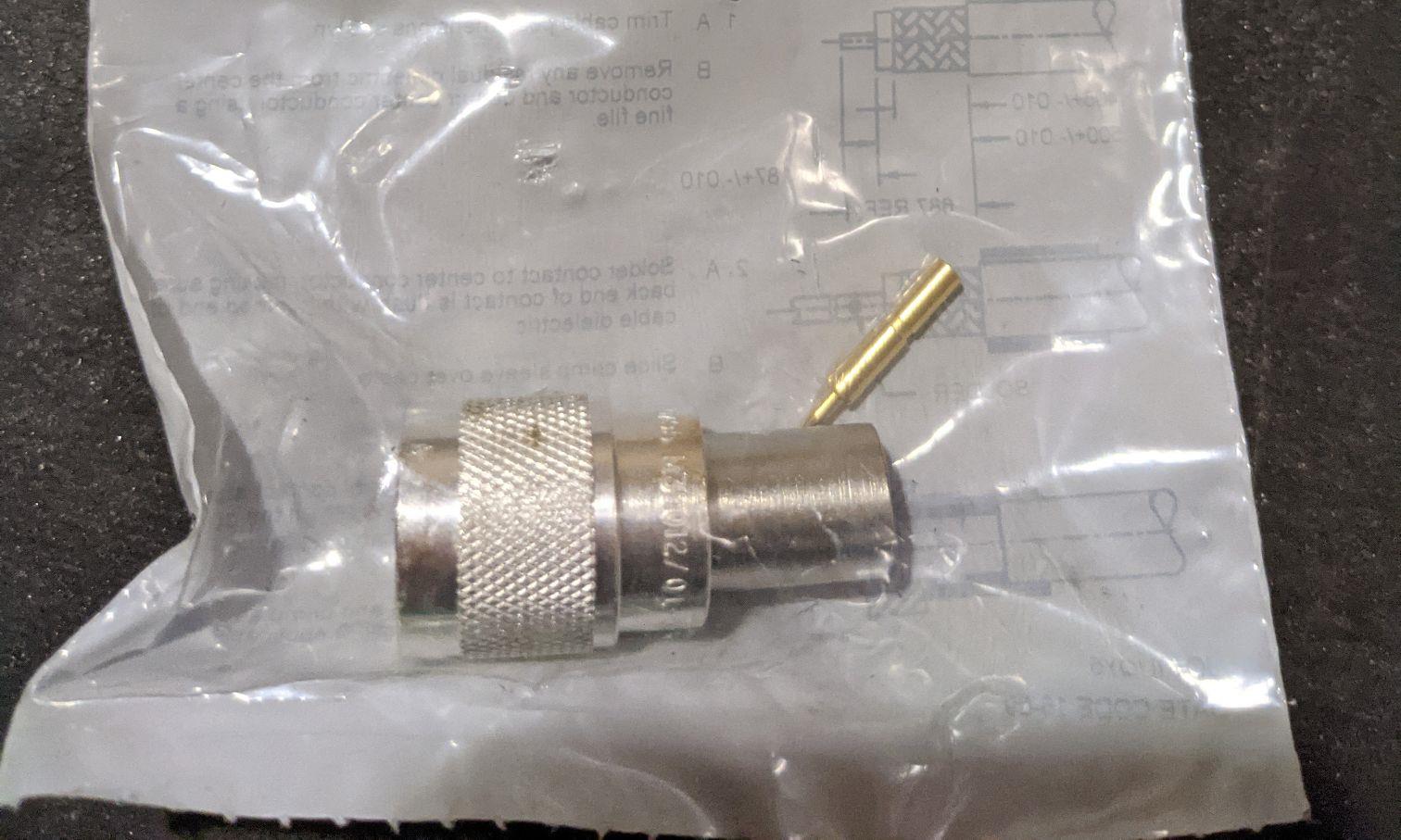

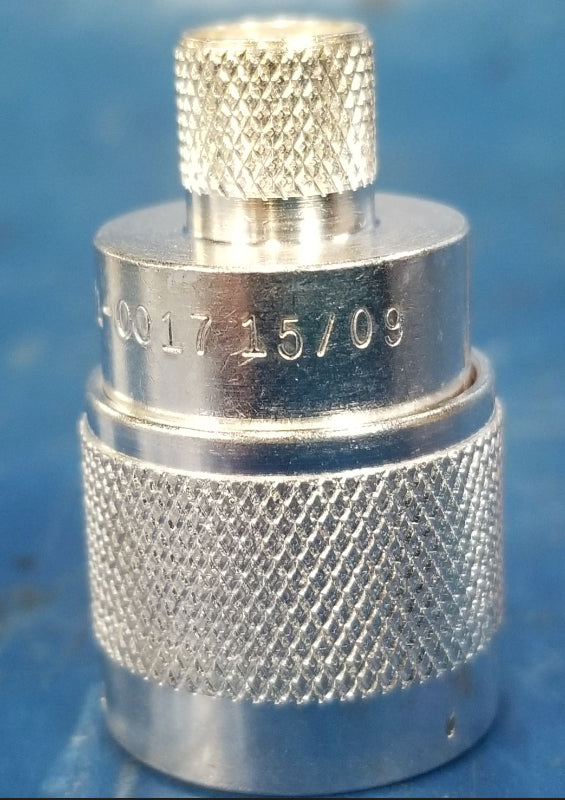

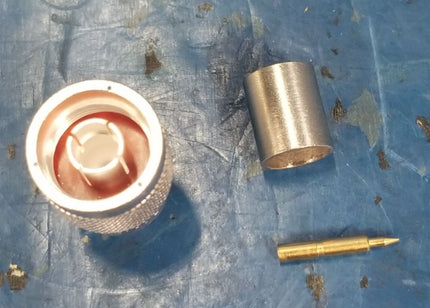

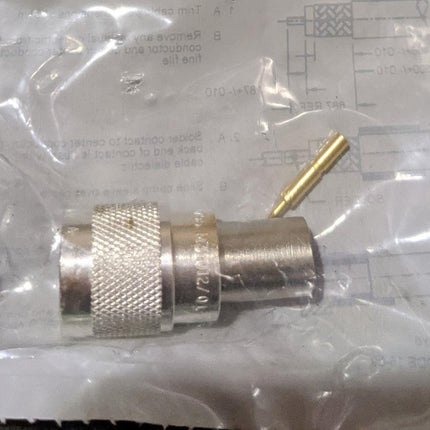

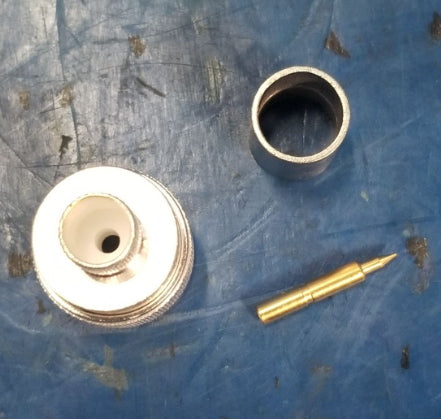

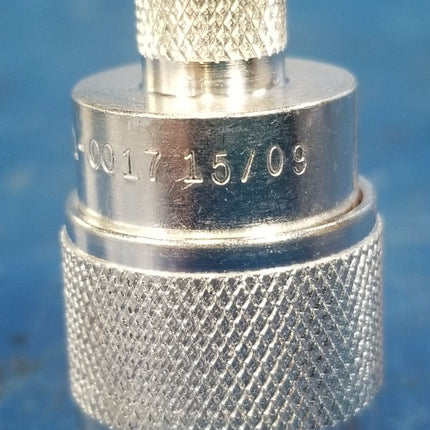

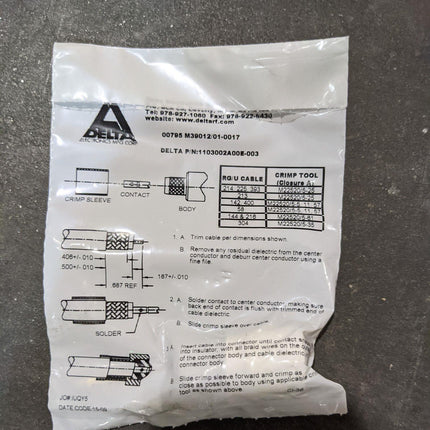

(10) PCS - N-Type Series RF Coaxial Connector Crimp Plug for RG-213/U M39012/01-0017

5935011124809

$48.99

WHAT IS IT:

****************************************

DETAILS - SPECS:

N Series Connectors

Delta Electronics Mfg Corp N Series Connectors offer 50Ω impedance and 5/8"-24 threaded coupling. These medium-size connectors are ideal for use with cables ranging from 0.350" to 0.450" in diameter and available for flexible and semi-rigid cables with diameters from 0.085" to more than 1". The N series is available with silver, nickel, or albaloy (tri-metal alloy) plating. Other features include DC to 11GHz frequency range, 1000VRMS voltage rating, 2500VRMS dielectric withstanding voltage, and 5000MΩ insulation resistance. Delta Electronics Mfg Corp N Series Connectors conform to MIL-PRF-39012 standards.

BODY STYLE 5D STRAIGHT SHAPE, INTERNAL COUPLING

OVERALL LENGTH 2.000 INCHES NOMINAL

OVERALL DIAMETER 0.827 INCHES NOMINAL

CONNECTOR LOCKING METHOD INTERNALLY THREADED COUPLING RING

SHELL TYPE SOLID

SHELL MATERIAL COPPER ALLOY

SHELL SURFACE TREATMENT SILVER AND COPPER

SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE

MATING END QUANTITY 1

CONTACT POSITION ARRANGEMENT STYLE ABCE N SINGLE MATING END

INSERT MATERIAL PLASTIC FLUORINATED ETHYLENE PROPYLENE OR PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END

INCLUDED CONTACT QUANTITY 1 SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT REMOVABILITY NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING

INCLUDED CONTACT TYPE COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING

RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS 50.0 SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT SURFACE TREATMENT GOLD SINGLE MATING END SINGLE CONTACT GROUPING

CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING

TERMINAL TYPE SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING

TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING

ENVIRONMENTAL PROTECTION CORROSION RESISTANT AND VIBRATION RESISTANT AND MOISTURE RESISTANT AND THERMAL SHOCK RESISTANT

TEST DATA DOCUMENT 81349-MIL-C-39012 SPECIFICATION

SPECIFICATION/STANDARD DATA 81349-MIL-C-39012/1 GOVERNMENT SPECIFICATION

III PRECIOUS MATERIAL SILVER AND GOLD

III PRECIOUS MATERIAL AND WEIGHT 0.100 SILVER GRAINS, TROY AND 0.005 GOLD GRAINS, TROY

III PRECIOUS MATERIAL AND LOCATION BODY SURFACE SILVER AND CONTACT SURFACE GOLD

MANUFACTURERS CODE 81349

NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-39012/01

MANUFACTURERS CODE 81349

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M39012/01-0017

****************************************

CONDITION:

BRAND NEW

****************************************

BRAND:

DELTA ELECTRONICS

****************************************

MPN:

1103002A00E-003

Mouser #: 160-1103002A00E-003

Part # Aliases: M39012/01-0017

****************************************

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

5935-01-112-4809, M39012/01-0017, M39012/01-502, M39012010017, M3901201502, MIL-C-39012/01, MILC3901201, 824340, 82-4340, 5935-01-112-4809, 01-112-4809, 5935011124809, 011124809

****************************************

APPLICATION - USED ON IN - WHAT IS IT FOR:

AMPHENOL CORP SPECTRA-STRIP/ITD B-52 ADVANCED AIR TRAFFIC CONTR. & LAND. SYS AIR COMBAT MANEUVERING INSTRUMENTATION ( AIRCRAFT, F-16

****************************************
