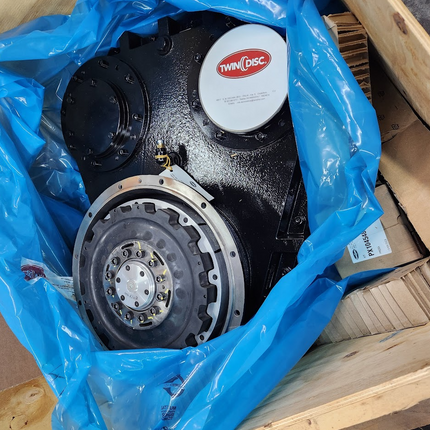

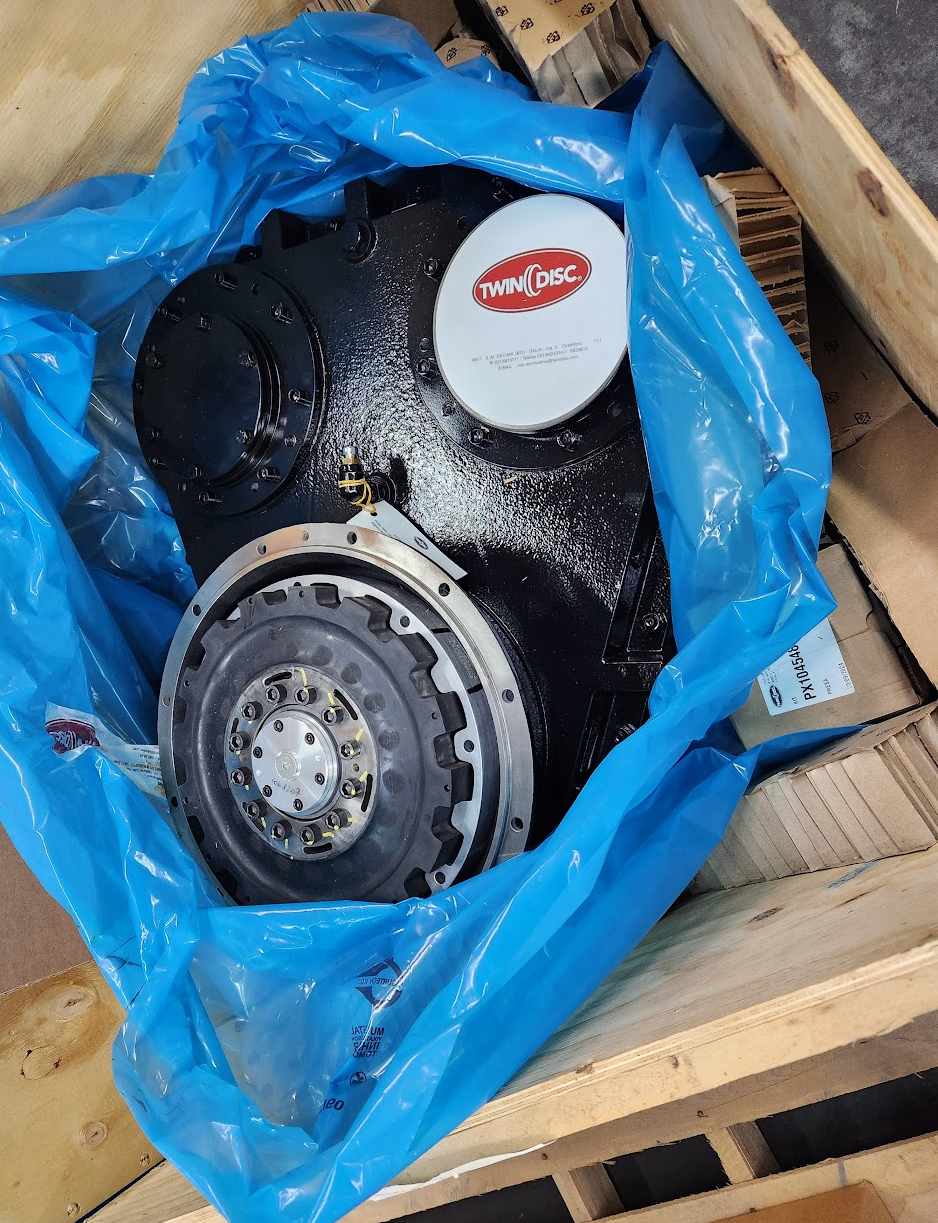

Twin Disc AM050D Pump Drive Rear Engine PTO (REPTO) Power Take Off
The Twin Disc AM050 is a rear-engine power take-off (REPTO) and has a maximum power rating of 600 horsepower at 2,200 RPM. It’s built for severe applications, including driving hydraulic pumps, grinders, crushers, dredgers, chippers, shredders and drills. It compliments a full system of Twin Disc products that work in conjunction with each other including power takeoffs, marine gears, and transmissions.
A key enhancement of the AM050 REPTO Drive is its high-power capabilities. Each pump tower has a 300-horsepower maximum capacity.
The drive is rotatable by 0°, 45°, 90°, either clockwise or counter-clockwise and 180° which makes it adaptable for clearance in any installation. The pads and splines are easily interchangeable in the field to accommodate varying pump sizes.
AM 050 Pump Drive
MAXIMUM THROUGH POWER 500 HP (373 KW)
FOR 1:1 RATIO @ 1800 RPM
FEATURES
• Compact design – 1:1 ratio throughput
• Pump tower ratios: 1.00:1, 0.87:1, & 0.77:1
• Up to 4 pump pads available
• SAE #3 through SAE #1 input/output housings
• SAE 11.5" through SAE 14" input/output flywheel connection
• SAE “A” through SAE “E” pump pads & splines
