WHAT IS IT:

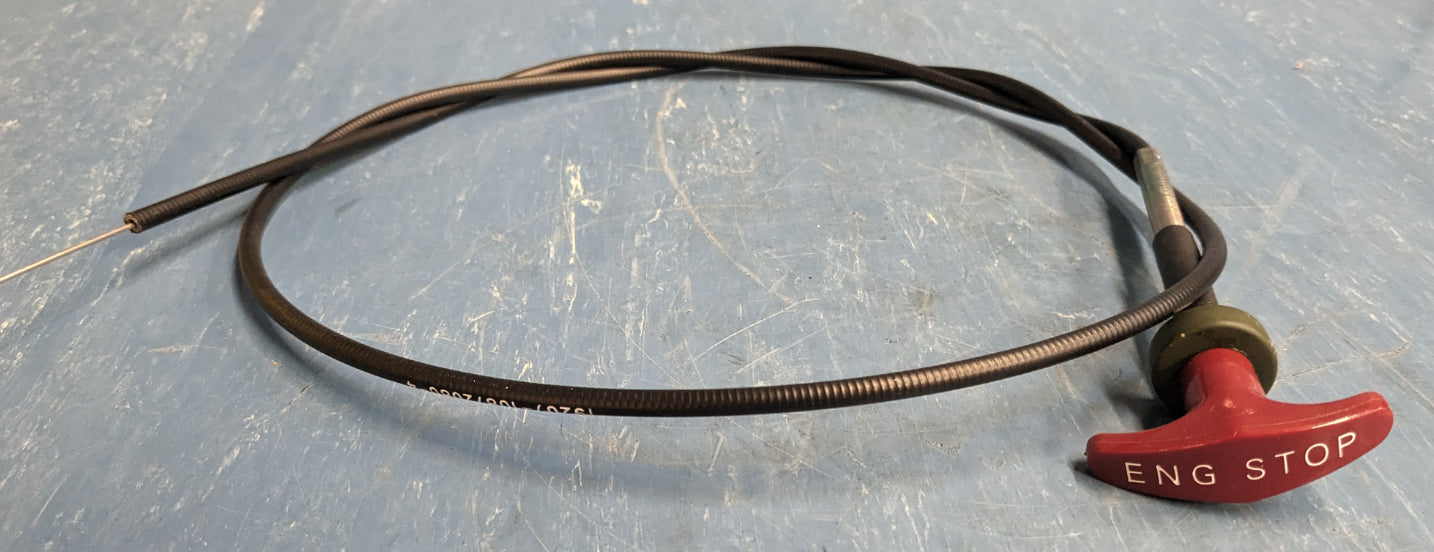

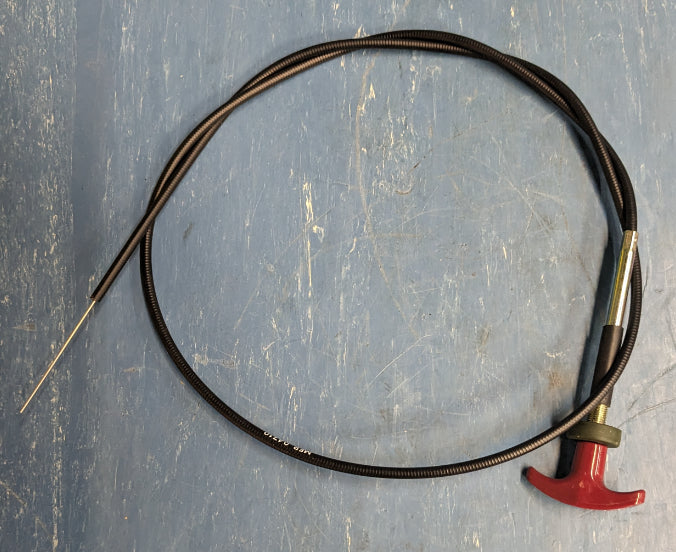

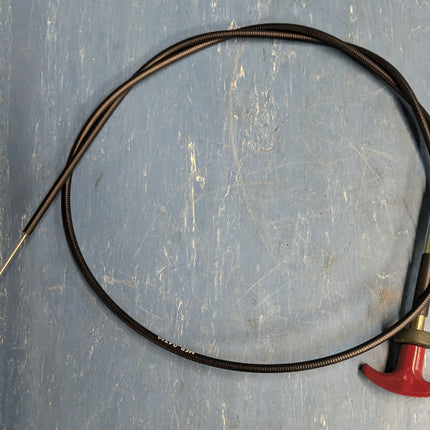

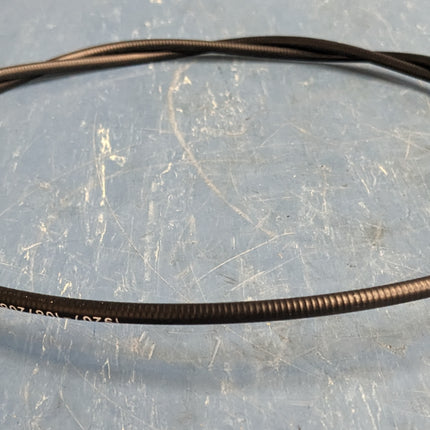

Engine Shutdown "Eng Stop" Cable Push Pull Control Assembly 49" M35 2590011635009 10872080-4
These cables assemblies are a total of 55" long when collapsed and 102" when the wire is fully extended from the casing. The official NSN Military spec say 102" nominal effective length and that is accurate.
102" FULLY EXTENDED (with cable pulled out of tube)

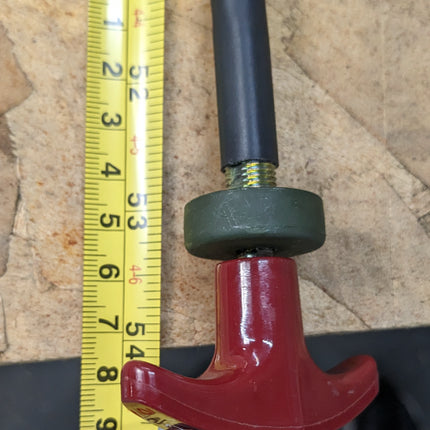

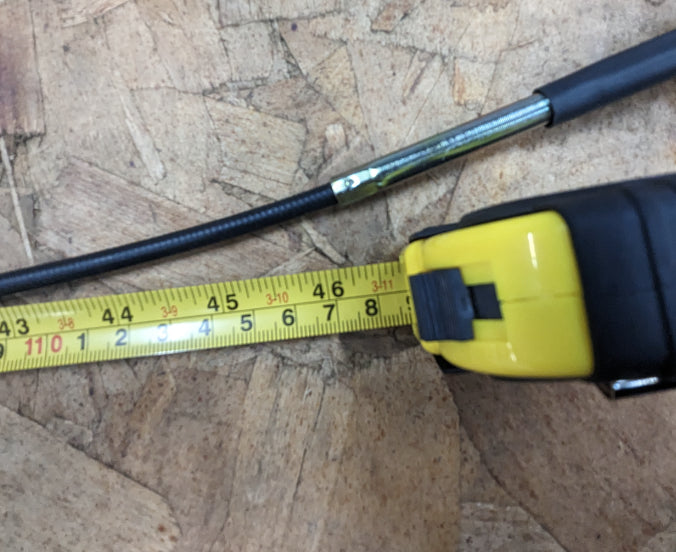

55" TOTAL LENGTH OF ASSY WHEN COLLAPSED
53" LENGTH MINUS HANDLE

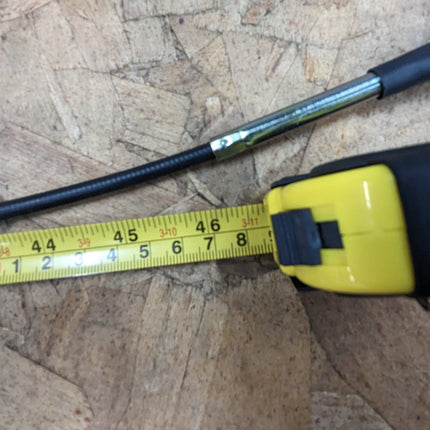

49" BLACK TUBE LENGTH
****************************************
DETAILS - SPECS:
CORE MATERIAL: STEEL
CORE CONSTRUCTION: SINGLE WIRE
CORE DIAMETER: 0.054 INCHES NOMINAL
FLEXIBLE CONDUIT MATERIAL: PLASTIC
FLEXIBLE CONDUIT OUTSIDE DIAMETER: 0.125 INCHES NOMINAL
EFFECTIVE LENGTH: 102.000 INCHES NOMINAL
TRAVEL DISTANCE: 3.000 INCHES NOMINAL

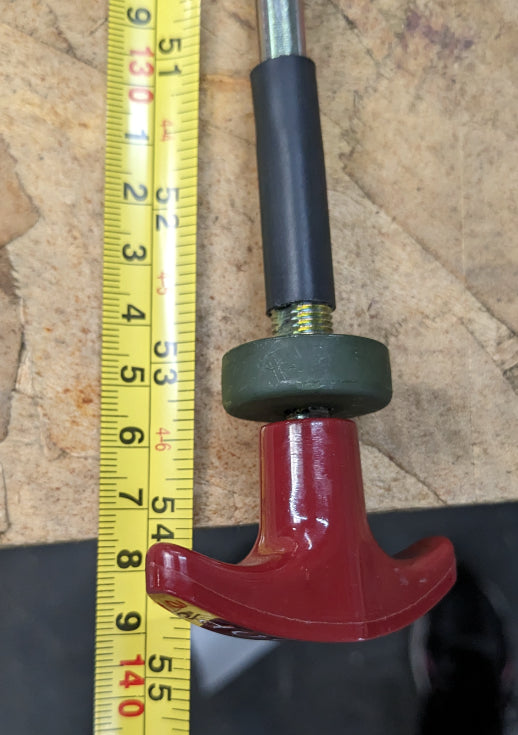

FEATURES PROVIDED: T-HANDLE AND ROTARY ADJUSTMENT PROVISION
****************************************
CONDITION:
BRAND NEW
****************************************
BRAND:
LOCKHEED MARTIN
****************************************
MPN:

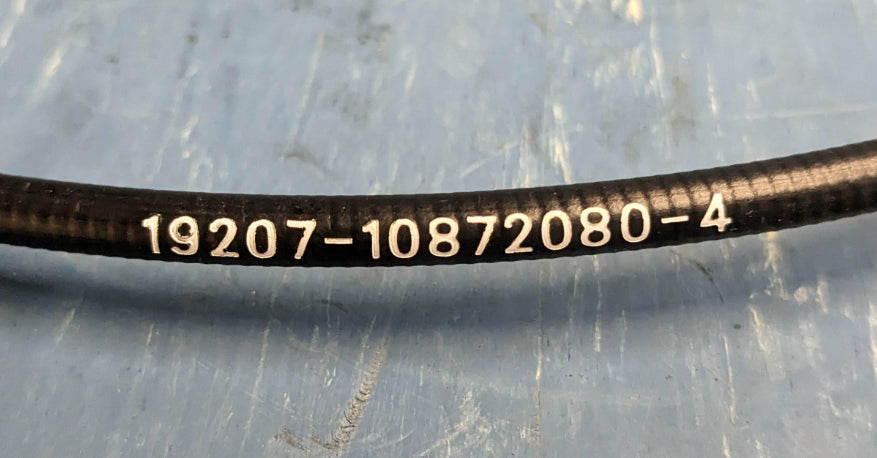

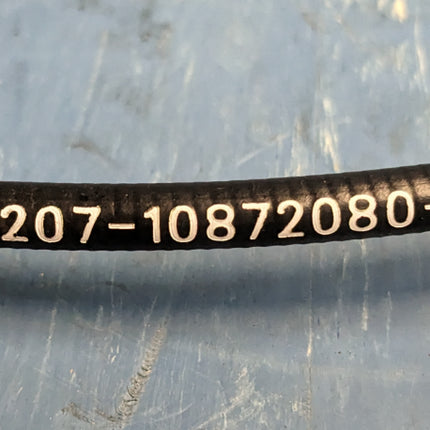

19207-10872080-4
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
10872080-4, 2590-01-163-5009, 01-163-5009, 2590011635009, 108720804, 011635009
2590-01-163-5009
2590011635009
10872080-2
DSG-010239
10872080-4
001635009
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM TRUCK, CARGO, DROPSIDE 2 1/2-TON 6X6 W/E TRUCK, CARGO, DROPSIDE 2 1/2-TON 6X6 W/E
