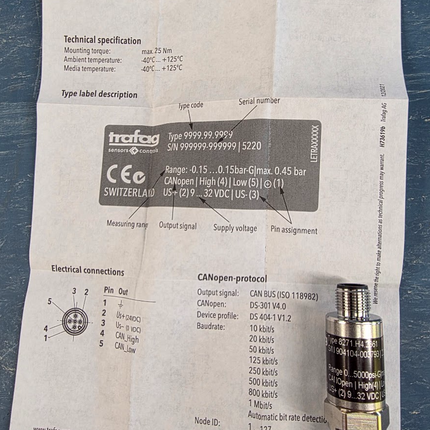

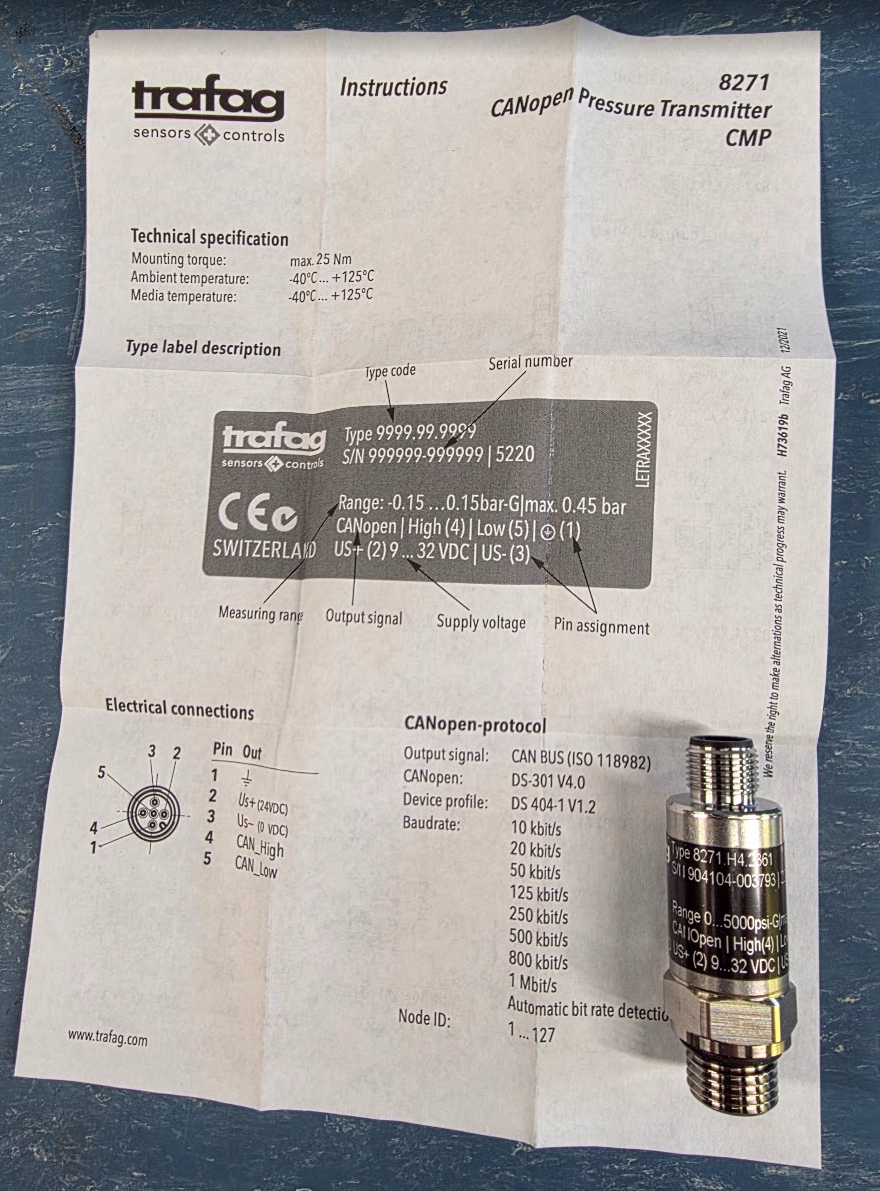

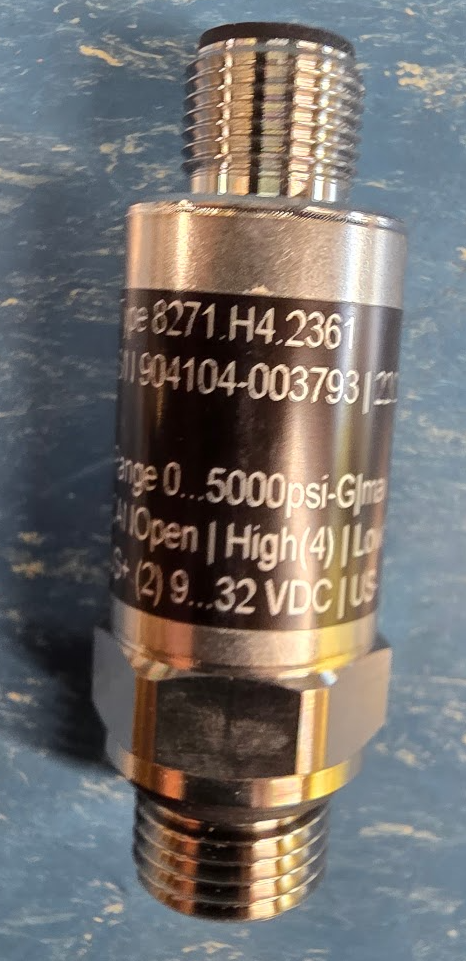

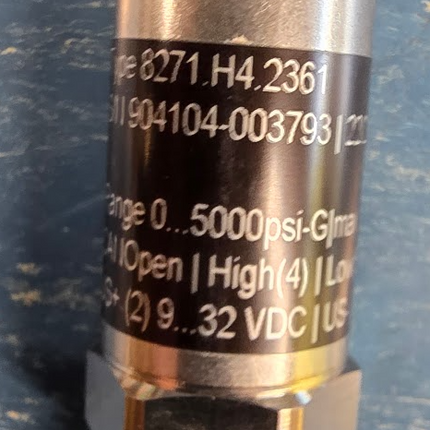

CMP 8271 CANopen Miniature Pressure Transmitter 5,000 psi Manitowoc 80139799
Small and rugged construction
CANopen bus protocol DS301/DS404 supports CAN 2.0A/B
LSS (DS 305 V2.0)
Optional: 5-fold overpressure resistance
The CANopen miniature pressure transmitter CMP 8271 is designed for harsh environments in demanding applications like mobile hydraulics. The compact and well-proven design and the wide range of options makes it the preferred choice for cost-effective OEM solutions.
Technical Data
More Information
Product code 8271
Name CMP
Designation CANopen Miniature Pressure Transmitter
Product category
Pressure transmitters
Measuring range 0 ... 2.5 to 0 ... 700 bar
0 ... 30 to 0 ... 10000 psi
Measuring principle Thin-film-on-steel
Applications
Hydraulics
Machine tools
Process technology
Engine manufacturing
Accuracy @ 25°C typ. ± 0.5 % FS typ.
± 0.3 % FS typ.
Output signal Bus protocol CANopen DS404

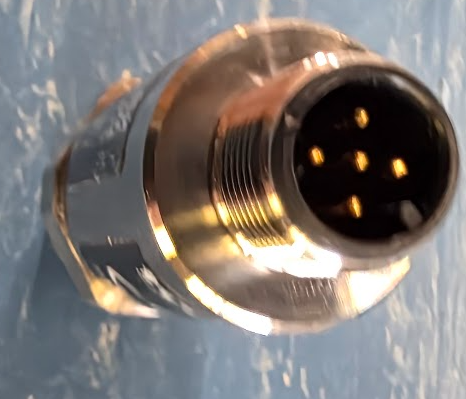

Electrical connections M12x1
Pressure connections
G1/4 m; G1/4 m (Manometer);
G1/4 m with integrated damping;
G1/8 m, DIN3852-E;
1/4NPT m; 1/8NPT m;
3/8-24UNF m, SAE J1926-2;
7/16-20UNF f, SAE J512 with valve opener;
7/16-20UNF f, SAE J512 without valve opener;
7/16-
Media temperature -40°C ... +125°C
Ambient temperature max. -40°C ... + 125°C
(UL-rated ambient temperature: -20°C ... +80°C)
Details see section Electrical Connection
Special features
Compact design
Measuring range adjustable
