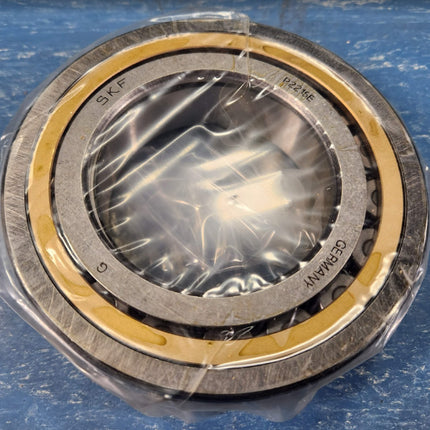

SKF NU 2215 ECML/C3 Cylindrical Roller Bearing Single Row 75x130x31 mm

Descripción

NU 2215 ECML/C3
Single row cylindrical roller bearing, NU design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Dimensions
Bore diameter 2.953 in
Outside diameter 5.118 in
Width 1.22 in

ABEC
ABEC 1
Bore Type
Cylindrical
Number Of Rows
1
Bore Diameter
75 mm
Outside Diameter
130 mm
Overall Width
31 mm
Ring Separation
O/R assembly separable I/R
Internal Clearance
C3
Flanges
(2) Flanges on outer Ring, Flangeless Inner Ring
Operating Temperature Range
Maximum 302 °F
Lubrication Type
Non-Lubricated
Max Rpm
9500 rpm
Bearing Material
Steel
Cage Material
Brass
Cage Type
Machined metal
Finish Coating
None
Closure Type
Open
Series
22
Weight
3.92 lbs
Manufacturer Upc Number
7316577028464
Material Element
Bearing steel
Locating
None
Product Type
Cylindrical Roller Bearings

SKF NU 2215 ECML/C3 Cylindrical Roller Bearing Single Row 75x130x31 mm

Forma del producto
Recogida gratuita en nuestra(s) tienda(s)

80 en stock ships next business day  Weekdays
Monday through Friday we ship out all orders placed prior to 8 am.
Weekends
We are not open and do not ship any orders over the weekend (or during holidays).
International
Depending on where you’re located, we offer many shipping options. Please contact us for more details.

$349.99

    • Guaranteed secure & safe checkout.

      shop pay

      Descripción

      NU 2215 ECML/C3
      Single row cylindrical roller bearing, NU design
      Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
      High radial load carrying capacity
      Low friction
      Long service life
      Accommodate axial displacement in both directions
      Separable design

      Dimensions
      Bore diameter 2.953 in
      Outside diameter 5.118 in
      Width 1.22 in

      ABEC
      ABEC 1
      Bore Type
      Cylindrical
      Number Of Rows
      1
      Bore Diameter
      75 mm
      Outside Diameter
      130 mm
      Overall Width
      31 mm
      Ring Separation
      O/R assembly separable I/R
      Internal Clearance
      C3
      Flanges
      (2) Flanges on outer Ring, Flangeless Inner Ring
      Operating Temperature Range
      Maximum 302 °F
      Lubrication Type
      Non-Lubricated
      Max Rpm
      9500 rpm
      Bearing Material
      Steel
      Cage Material
      Brass
      Cage Type
      Machined metal
      Finish Coating
      None
      Closure Type
      Open
      Series
      22
      Weight
      3.92 lbs
      Manufacturer Upc Number
      7316577028464
      Material Element
      Bearing steel
      Locating
      None
      Product Type
      Cylindrical Roller Bearings
