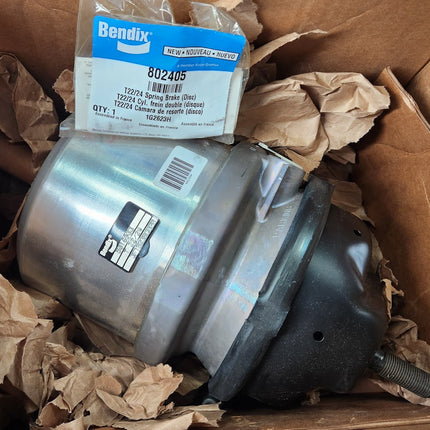

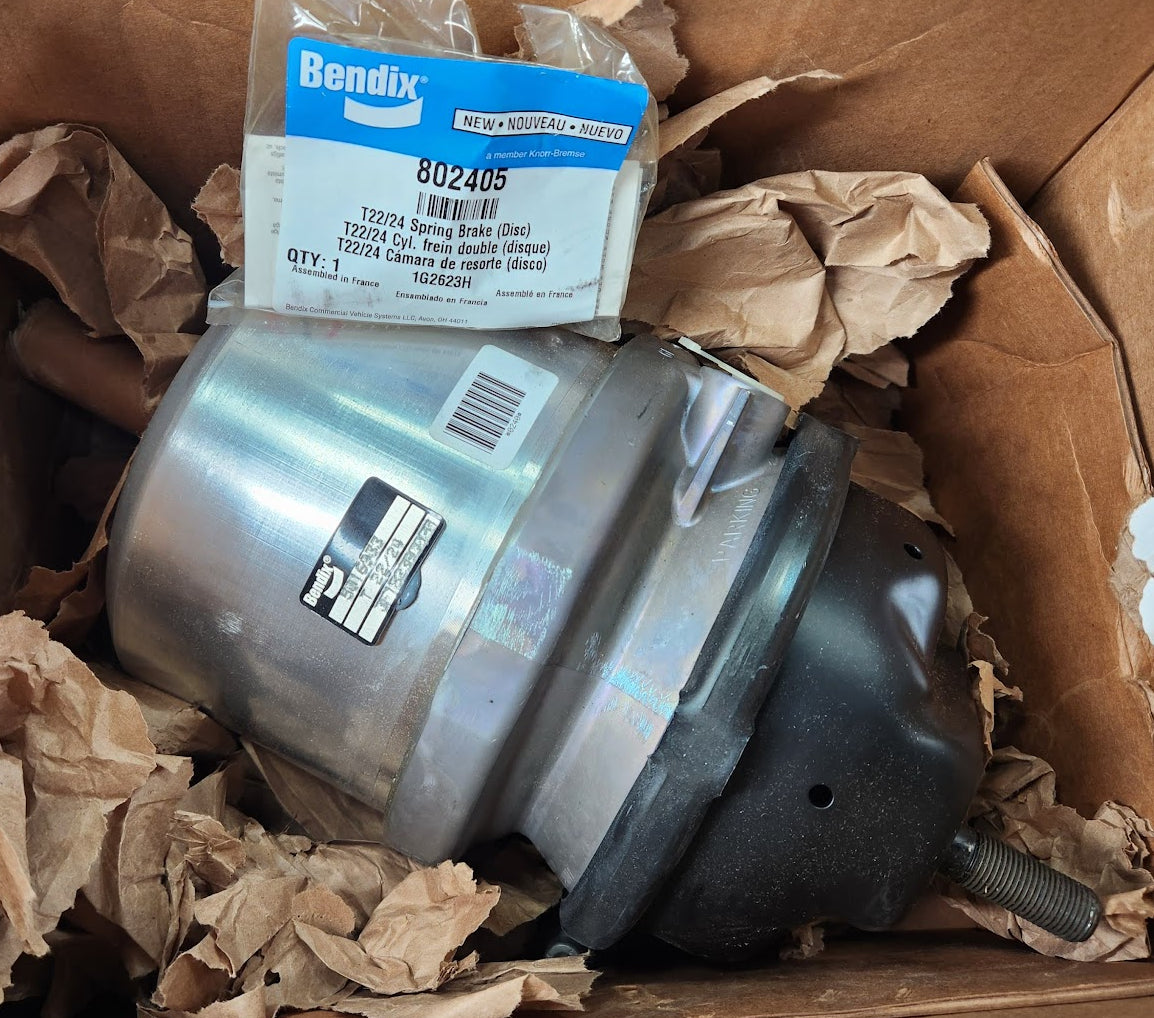

Bendix 802405 Air Disc Brake Spring Chamber T22 24

Description

745-802405, BAN802405, BEN802405, BW 802405, BX802405, TWDBEN802405, ZAC802405

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-013-048: Chamber Assembly - Spring Brake, Air Disc Brake
Mounting Stud Length
1.70 IN (43.2 MM)
Push Rod Length [MM]
15
Maximum Operating Temperature
176 °F (80 °C)
Width
191.0 mm (7.52 in)
Stroke
2.50 IN (63.5 MM)
Height
213.0 mm (8.39 in)
Port Angle
270°
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Length
381.0 mm (15.0 in)
Stud Spacing
4.75 IN (120.7 MM)
Harmonized System (HS) Code
841231
Clamp Angle
90°
Service Chamber Vent Holes
All Open
Cautionary Note(s)
All vent holes must be open
Country of Origin
France
Stud Thread Size
M16 x 1.5-6g
Parking Chamber Sealed
No
Chamber Style
Piston
Service Chamber Joint Type
Single Clamp Band
Push Rod Thread / Style
Spherical End
Chamber Type / Size
T22/24
Weight
17.74 lb

Bendix 802405 Air Disc Brake Spring Chamber T22 24

Product form
Free pickup in our shop(s)

1 in stock ships next business day  Weekdays
Monday through Friday we ship out all orders placed prior to 8 am.
Weekends
We are not open and do not ship any orders over the weekend (or during holidays).
International
Depending on where you’re located, we offer many shipping options. Please contact us for more details.

$708.00
