Description
WHAT IS IT:

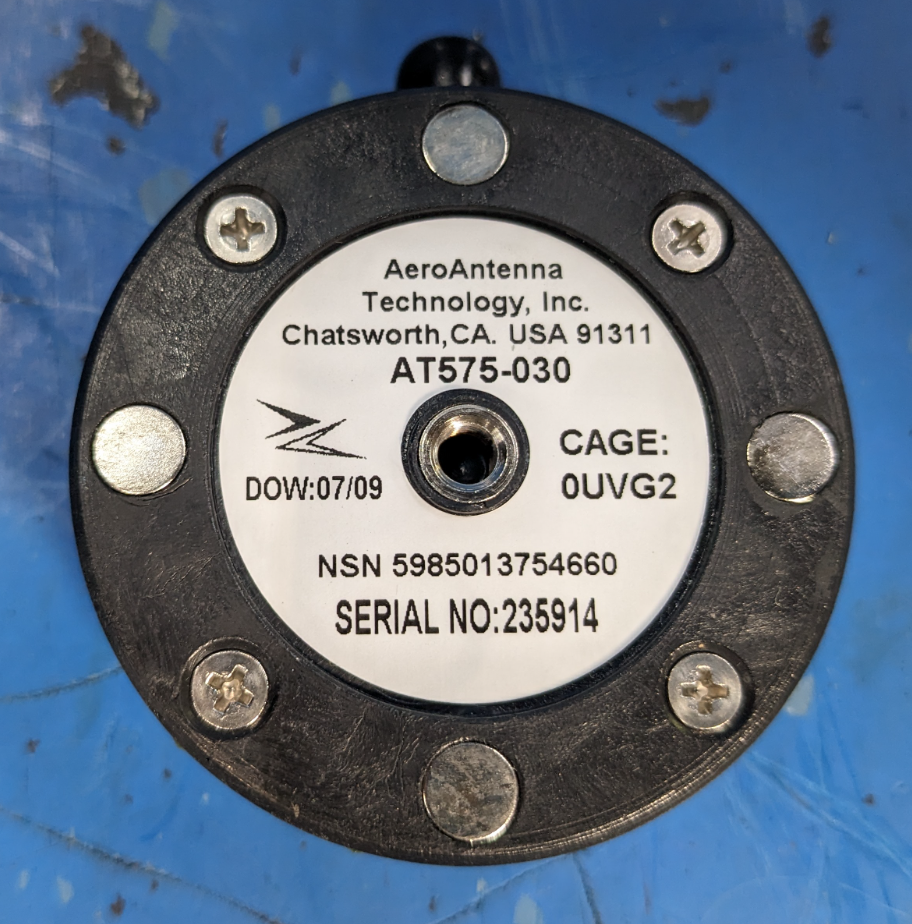

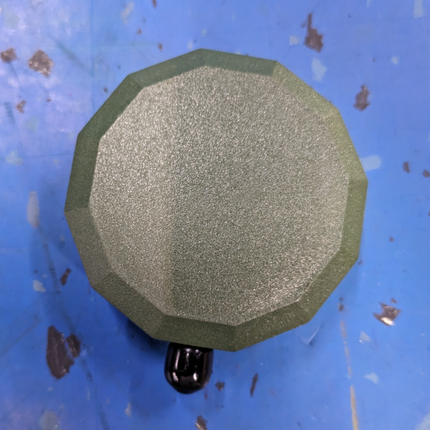

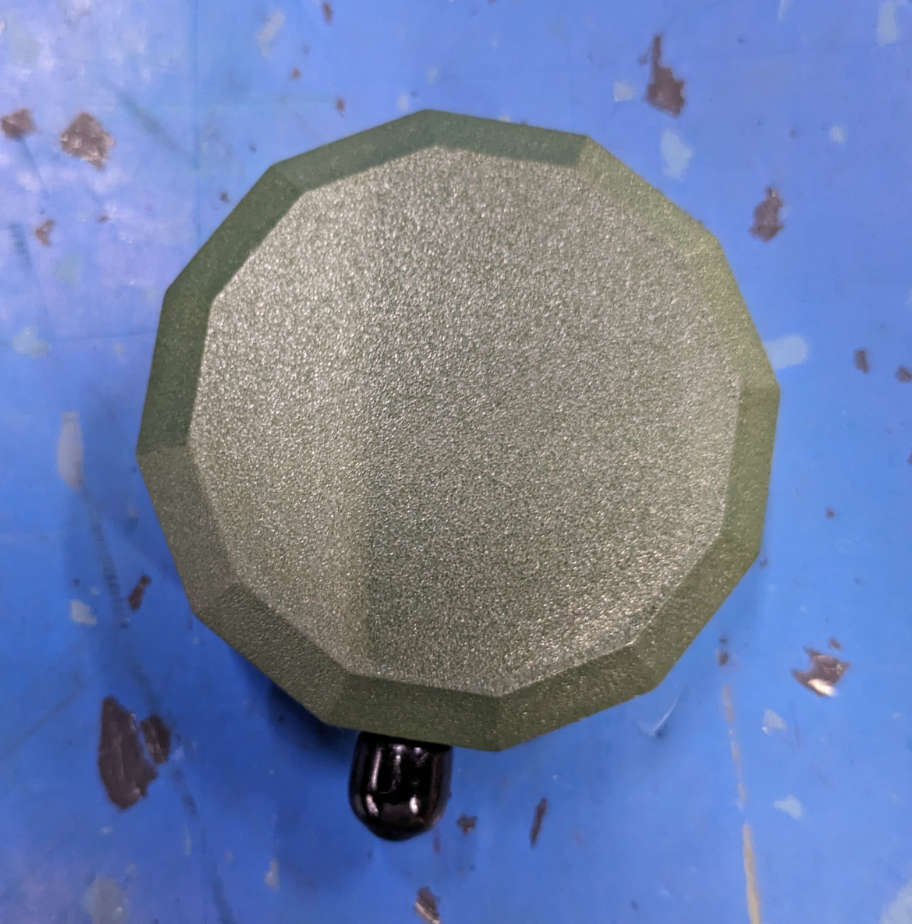

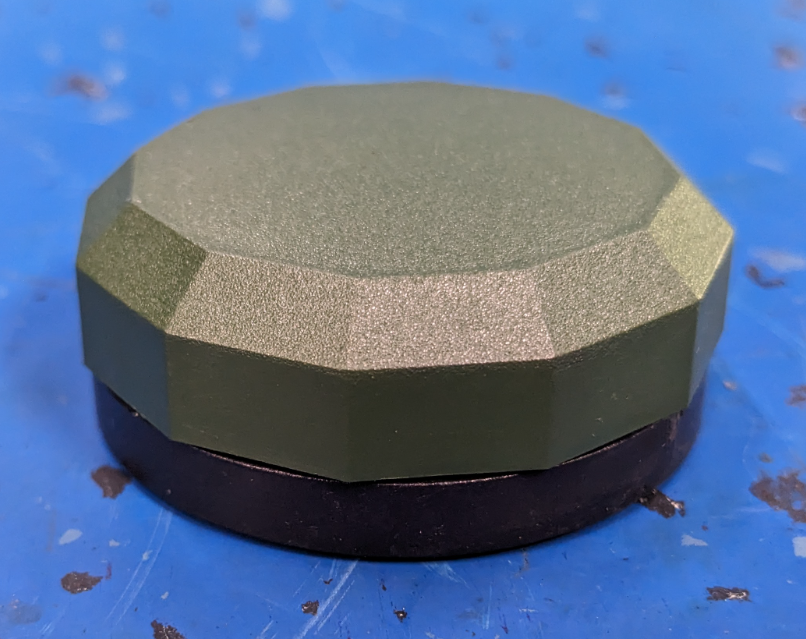

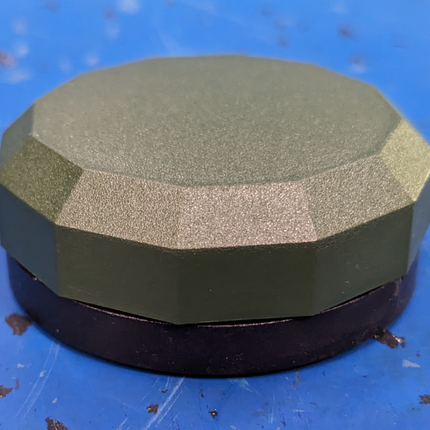

AeroAntenna AT575-030 high performance GPS L1 Antenna Receiver Magnetic SMA 5985-01-4660 Military Aerospace Marine
1. Tactical & Military Field Equipment
AN/PSN-11 PLGR Remote Antenna: Its military military designation (AS-4333/V) is the official external/remote antenna for the PLGR (Precision Lightweight GPS Receiver) used by the U.S. Armed Forces and NATO allies.
Vehicular Mounts (Ground Transport): Equipped with an integrated magnetic mount and bolt pattern, it attaches to military vehicles (such as Humvees, light tactical vehicles, and armored personnel carriers) to provide remote GPS signal feeding to onboard navigation computers or tactical radios.
2. Aviation & Flight Navigation
Avionics Ground & Air Testing: Used in civil and military aviation as an active receiver antenna for GPS systems complying with DO-160D / ARINC 743 environmental and form-factor standards.
General Aviation & Rotorcraft: Used as a low-profile external antenna for helicopters, fixed-wing light aircraft, and UAVs (drones) requiring active, high-gain L1 band reception.
3. Precision Surveying & Field Geomatics
Mobile Surveying Gear: Used as a rugged, weather-sealed external antenna for mobile mapping, land surveying, and GIS mapping equipment.
4. Marine & Maritime Navigation
Deck-Mounted GPS Receivers: Sealed inside a polyurethane enamel enclosure to resist environmental exposure, making it suitable for marine surface vessels, speedboats, and naval navigation platforms.
****************************************
SPECS:
OVERALL HEIGHT: 0.840 INCHES NOMINAL
FREQUENCY RATING: 1575.420 MEGAHERTZ NOMINAL SINGLE ANTENNA ELEMENT
OVERALL DIAMETER: 2.200 INCHES NOMINAL
ENVIRONMENTAL PROTECTION: DUST RESISTANT AND SALT SPRAY RESISTANT AND SAND RESISTANT AND SUBMERSIBLE AND FUNGUS RESISTANT

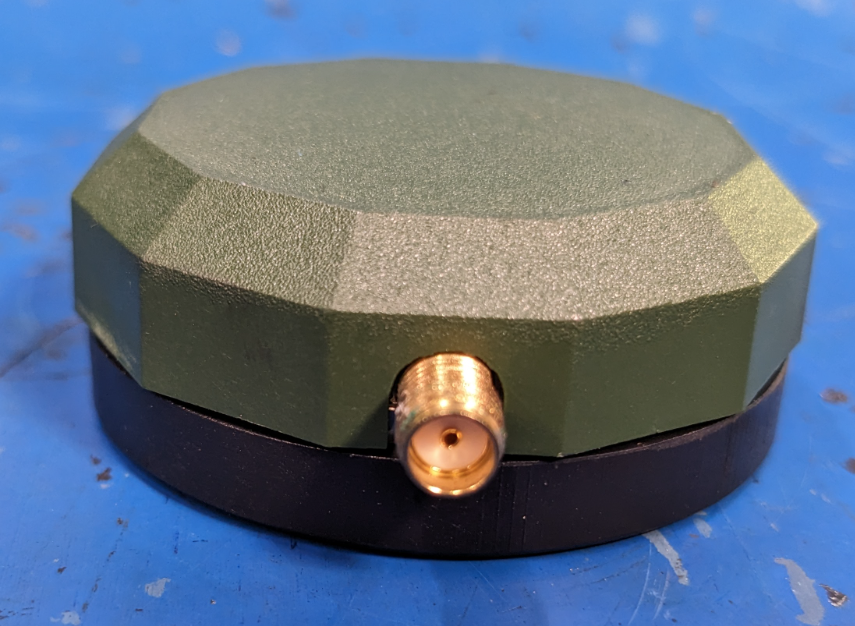

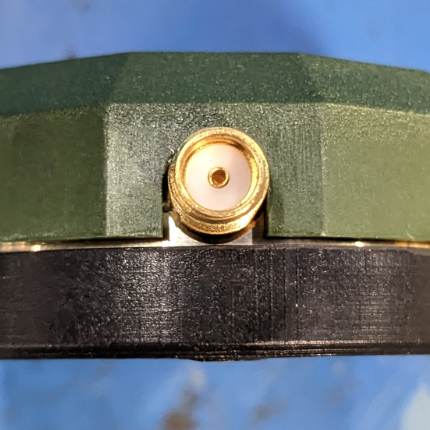

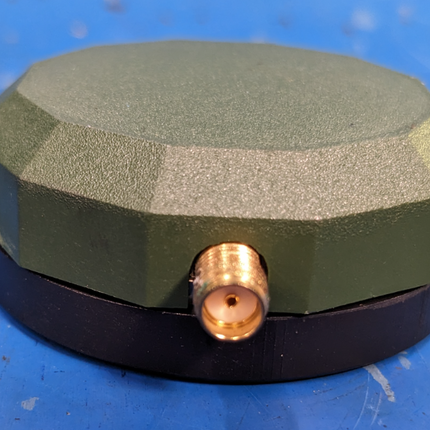

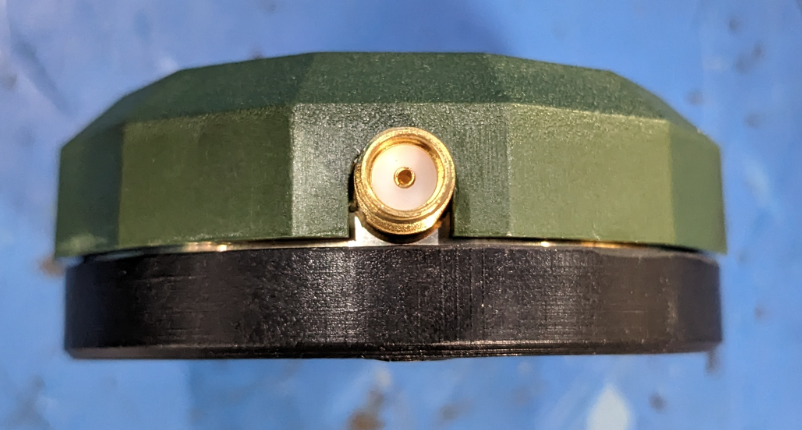

COAXIAL CONNECTOR SERIES DESIGNATION: SMA SINGLE ANTENNA ELEMENT
CONNECTOR END DESIGN: SOCKET SINGLE ANTENNA ELEMENT
ELECTROMAGNETIC POLARIZATION TYPE: RIGHT CIRCULAR SINGLE ANTENNA ELEMENT
RADIATION PATTERN: OMNIDIRECTIONAL SINGLE ANTENNA ELEMENT
CHARACTERISTIC IMPEDANCE IN OHMS: 50.0 SINGLE ANTENNA ELEMENT
BEAM SCANNING METHOD: FIXED SINGLE ANTENNA ELEMENT
DESIGN TYPE: CIRCULAR ARRAY SINGLE ANTENNA ELEMENT

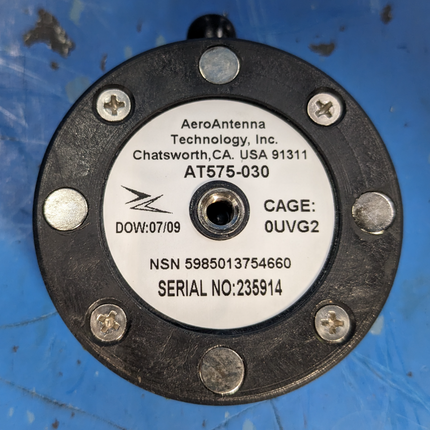

MOUNTING METHOD: MAGNETIC
TERMINAL TYPE: RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT
POWER GAIN IN DECIBELS: 3.00 SINGLE ANTENNA ELEMENT
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
- AS-4333/V, AS4333V, AT575030, AT575-030, 654413241210 , 66 452-004, 66452004, 87543001, 302779 , 339580010004, 3395-8001-0004, 339580150044, 3395-8015-0044, 0131925030, 013-1925-030, 5985-01-375-4660, 01-375-4660, 5985013754660, 013754660
- 013-1925-030, ANDREW CORP ANDREW MICRO PULSE INC DIV
- 013-1925-030, ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS DIV COLLINS AEROSPACE - MISSION SYSTEMS
- 013-1925-030, SPECTRA SYSTEMS INC
- 302779, WIBA ZEVENAAR B.V.
- 3395-8001-0004, TE CONNECTIVITY CORPORATION
- 3395-8001-0004, M/A-COM INC
- 3395-8001-0004, COBHAM ADVANCED ELECTRONIC SOLUTIONS INC.
- 3395-8001-0004, SEMIC RF ELECTRONIC GMBH
- 3395-8015-0044, SPECTRA SYSTEMS INC
- 654413241210, NCB HUNGARY (HONVEDSEGI EGYSEGES TERMEKKOD)
- 66 452-004, ROCKWELL COLLINS DEUTSCHLAND GMBH DIV ROCKWELL COLLINS INTERNATIONAL & SE
- 87543001, GMV AEROSPACE AND DEFENCE SA
- AS-4333/V, JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
- AT575-030, AEROANTENNA TECHNOLOGY, INC. DIV HEICO CORPORATI
****************************************
USED IN:
- FIGHTING VEHICLE SYSTEMS, BRADLEY (BFVS)
- AN/TSQ-158, NET CONTROL STATION, ENHANCED PLRS
- TANK, ABRAMS M-1
- HOWITZER, M-109 SERIES
- TARGET ACQUISITION,AN/TSQ-179 (CURRENT VERSIONS),O
- AN/TSC-147, JTIDS MODULE
- NAVY COMMAND CONTROL & COMMUNICATIONS
- AIRCRAFT, STRATOLIFTER C/KC-135
- ASSAULT AMPHIBIOUS VEHICLE, RECOVERY AAVR7A1
- ARLEIGH BURKE CLASS DDG
- HELICOPTER, BLACK HAWK UH-60A, UH-60L, HH/UH-60M,
- ASSAULT AMPHIBIOUS VEHICLE, PERSONNEL AAVP7A1
- TICONDEROGA CLASS CG (47)
- AN/FSQ-215 LAUNCH AND EARLY ORBIT, (LADO) GPS OFFL
- AVENGER CLASS MCM
- BLUE RIDGE CLASS LCC-19
- OHIO CLASS SSBN (TRIDENT)
- COMPUTER, BALLISTICS
- NAVY EXPEDITIONARY PROGRAMS
- SENTINEL RADAR SYSTEM
- RADAR, FIREFINDER, AN/TPQ-36 AND AN/TPQ-37
- WHIDBEY ISLAND CLASS LSD
- PC CLASS/COASTAL PATROL BOATS
- RADIO AN/GRC-206(V)3
- AN/TRC-214 RRSVS RADIO UNIT
- LANDING CRAFT AIR CUSHION (LCAC)
- MT WHITNEY LCC-20 CLASS
- LOS ANGELES CLASS SSN (688)
- MORTAR BALLISTIC COMPUTER (NSN:7021-01-521-1611)
- ASSAULT AMPHIBIOUS VEHICLE, COMMAND (AAVC7A1)
- GLOBAL POSITIONING SYSTEM - GPS NAVSTAR
- RADIO AN/GRC-171B(V)4
- WASP CLASS LHD
- RADAR SET, FIREFINDER (AN/TPQ-36)
- RECOVERY VEHICLE, FU
- TACTICAL NAVIGATION
***************************************
