Description
WHAT IS IT:

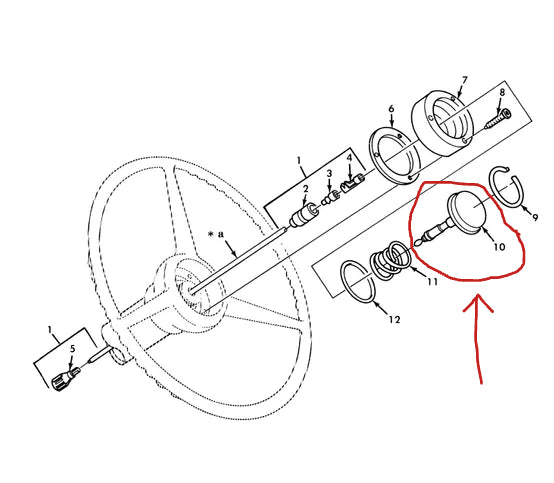

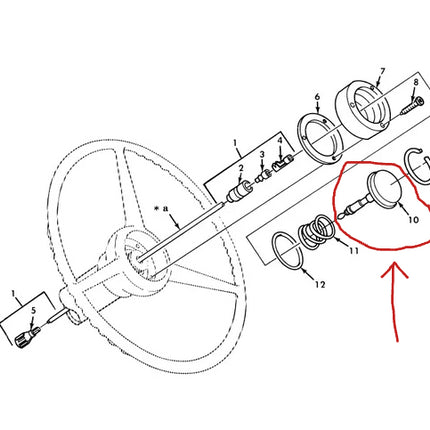

Vehicle Horn Button Switch Cover M800 2.5 5 Ton Military Truck 2530011361098 10921898-1

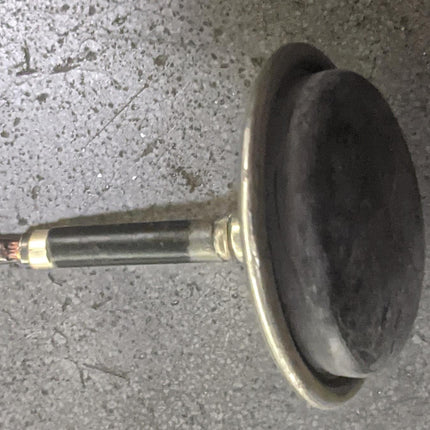

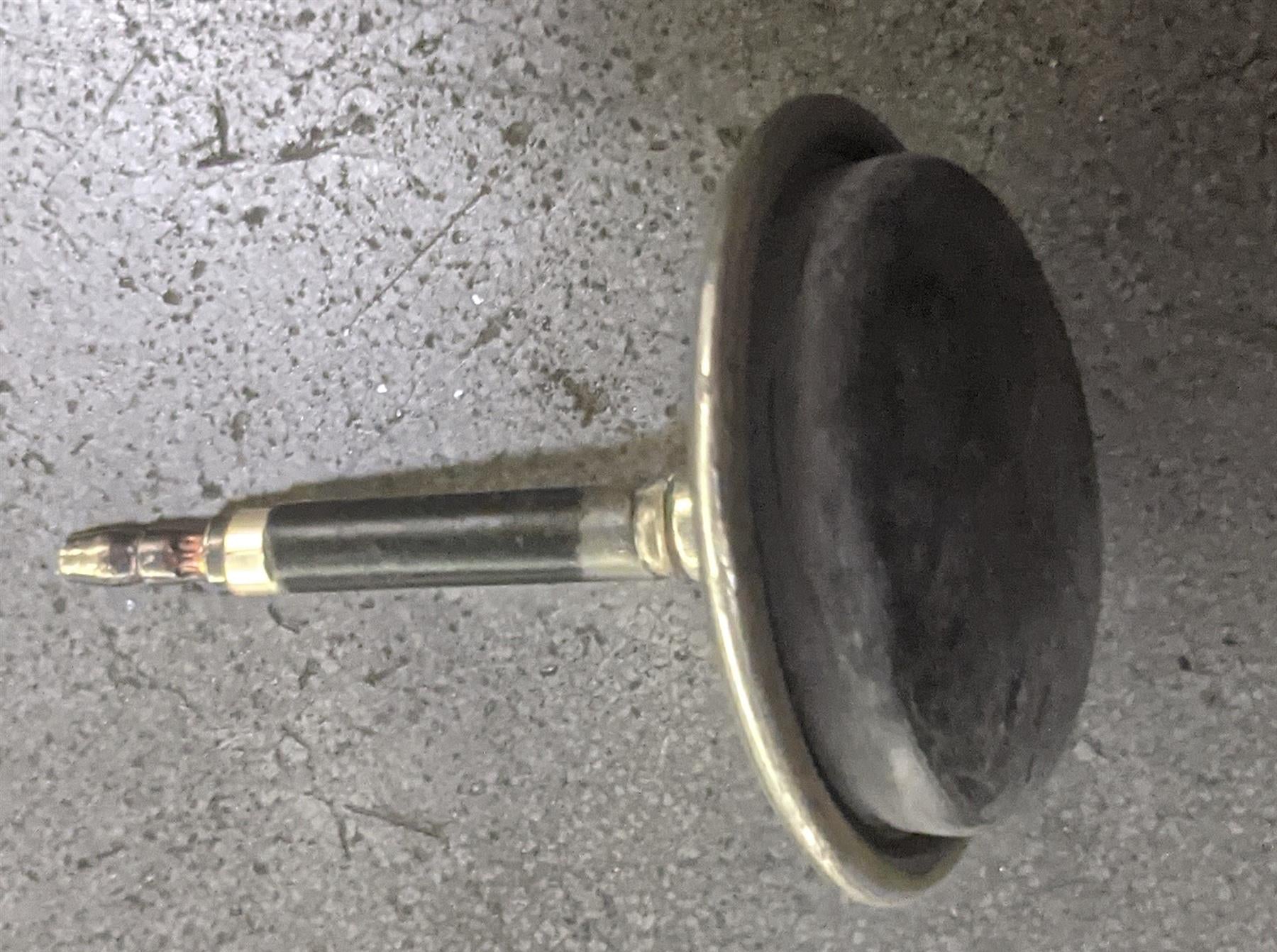

Horn button switch. P/N 10921898-1. NSN 2530011361098. Made in USA. Meets specification MIL-S-13625. For various vehicles such as M35A2, M35A3, M809, M939 series. This is the horn button switch only.
NEW OLD STOCK HORN BUTTON FOR USE IN MOST 5 TON TRUCKS AND 2.5 TON TRUCKS THAT HAVE HAD THE HORN BUTTON UPGRADED TO THE NEW STYLE.
THIS BUTTON IS HELD IN PLACE BY A SNAP RING.
****************************************
DETAILS - SPECS:
ASSEMBLY CONSISTING OF THE FOLLOWING PARTS;
1 EA PLATE, CAGE 19207 P/N 11613707;
1 EA CONTACT, CAGE 19207, P/N 11613708;
1 EA BUTTON, CAGE 19207, P/N 8754118;
1 EA SPRING, CAGE 19207, P/N 10921900;
1 EA HOUSING, CAGE 19207, P/N 8754117;
1 EA HOLDER, CAGE 19207, P/N 8754122;
1 EA CONTACT, CAGE 96906, P/N MS27148-2;
1 EA CABLE, CAGE 81349, P/N M13486/1-6
****************************************
CONDITION:
BRAND NEW
****************************************
MPN:
10921898-1
****************************************
CROSSOVER - INTERCHANGE - COMPATIBLE WITH:
10921898
10921898-1
2530-01-136-1098
01-136-1098
2530011361098
011361098
109218981
****************************************
APPLICATION - USED ON IN - WHAT IS IT FOR:
U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM CARGO SYSTEM, 463L CARGO SYSTEM, 463L SHIPBOARD MATERIAL HANDLING EQUIPMENT (M TRUCK, 5-TON M939 SERIES NAVY EXPEDITIONARY PROGRAMS TRUCK, CARGO, 5-TON, 6X6, XLWB W/E CARGO SYSTEM, 463L MISSILE, PATRIOT TRUCK, CARGO, DROPSIDE 2 1/2-TON 6X6 W/E TRUCK, 5-TON M939 SERIES
****************************************
