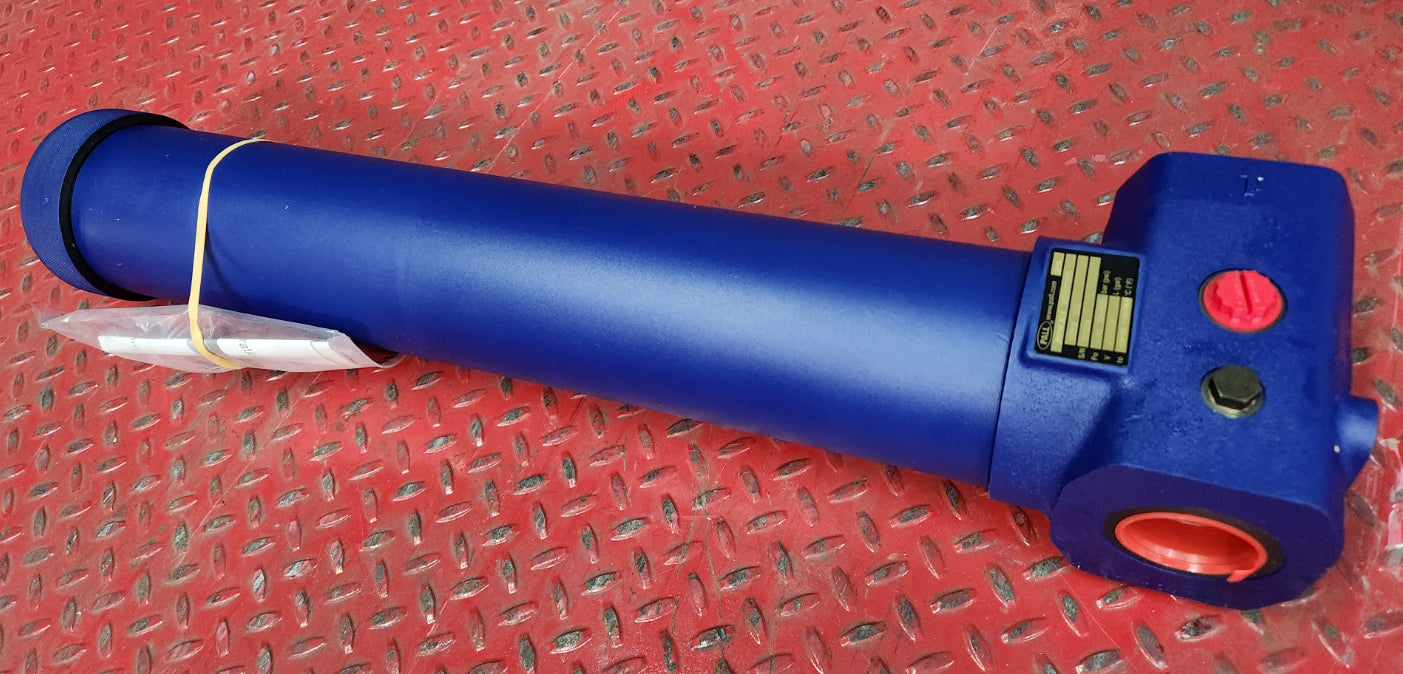

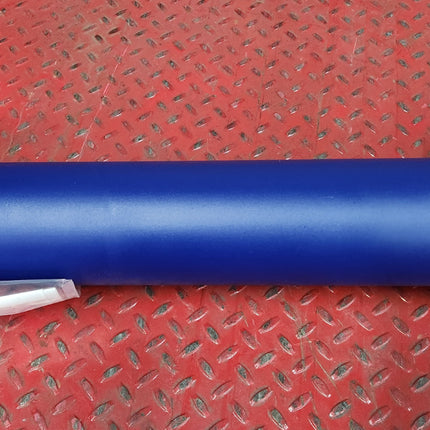

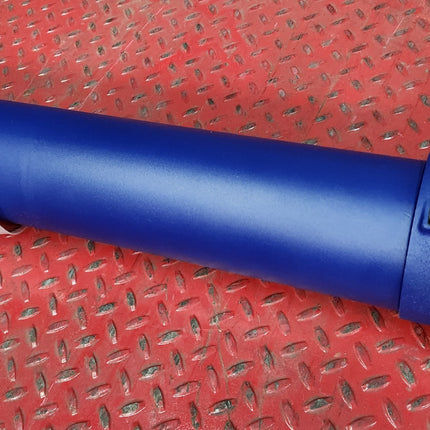

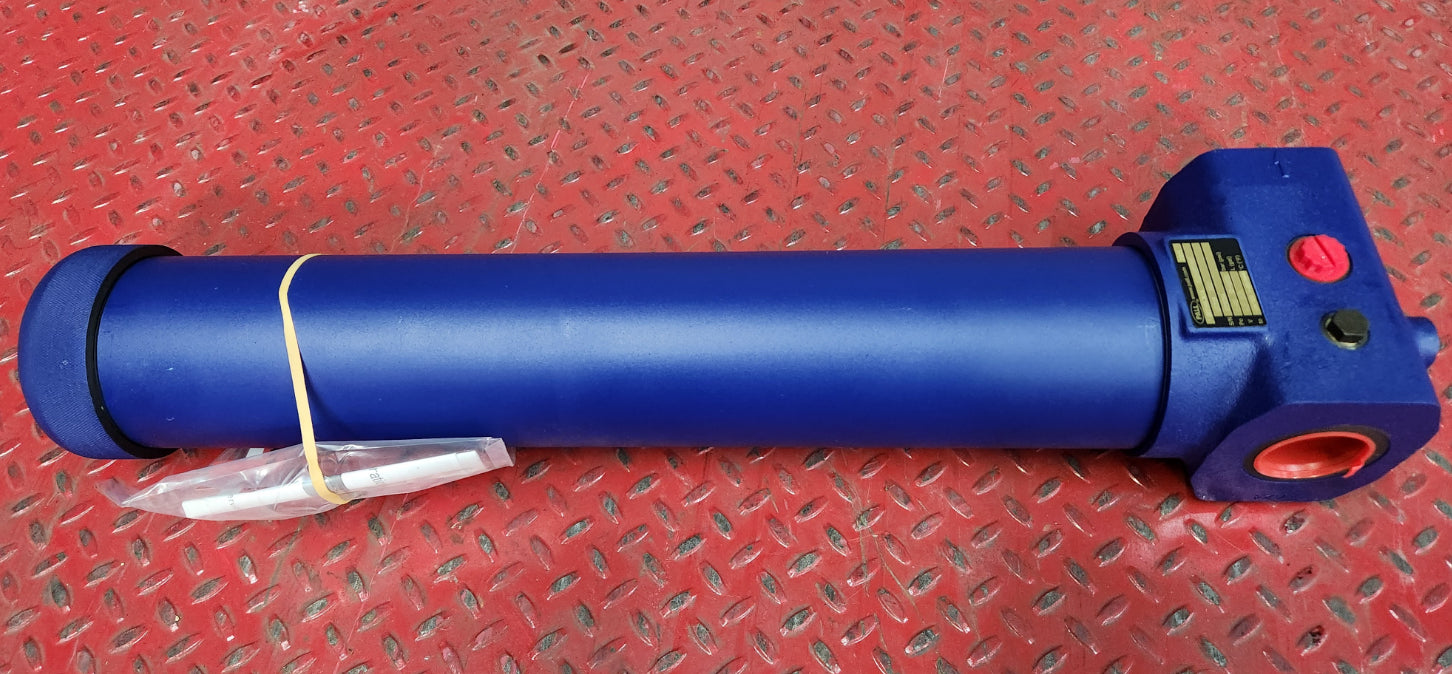

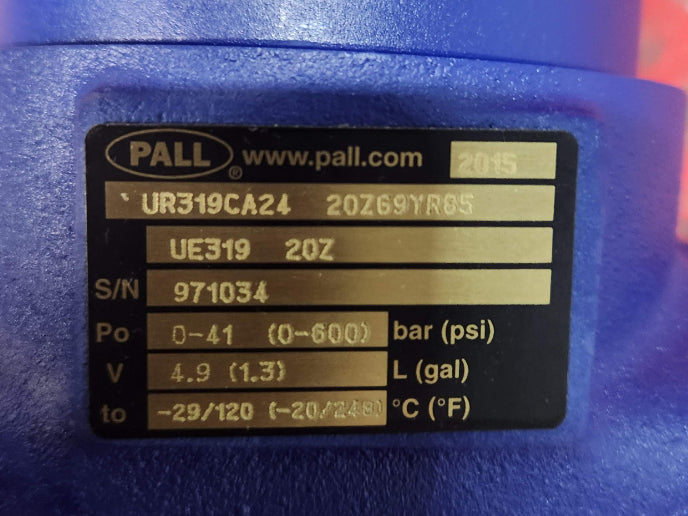

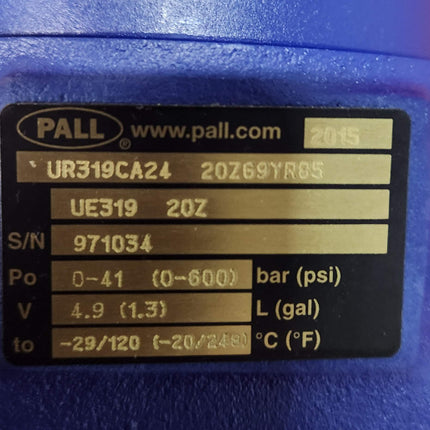

Pall UR319 Series Ultipleat SRT Return Line FIlter UR319CA24 20ZG9YR85
UR319CA24PALL UR319CA24 20ZG9YR85
- Flows to 760 L/min (200 US gpm)
- Pressures to 41 bard (600 psid)
- Port size 11⁄2", 2" and 21⁄2"
- Unique Ultipleat (laid-over pleat) filter medium pack
- Coreless, cageless element configuration
- Pall Stress-Resistant Technology (SRT) Media
- In-to-out filter element flow path
Filter Housing
Maximum Allowable Working Pressure:
41 bard (600 psid)
Rated Fatigue Pressure:
41 bard (600 psid) 106 cycles per NFPA T2.06.01R2-2001
Typical Burst Pressure:
145 bard (2100 psid)
Fluid Compatibility:
Compatible with all petroleum oils, water glycols, water-oil emulsions and most synthetic hydraulic and lubrication fluids
Temperature Range:
Fluorocarbon Seals: -29 °C to 120 °C (-20 °F to 250 °F) 60 °C (140 °F) maximum in HWCF or water glycol fluids
Materials of Construction:
Tube: Carbon steel
Head and Cover: Ductile Cast Iron
Filter Element
Filter Element Burst Pressure:
10 bard (150 psid)
Ultipleat SRT Element Construction:
Inorganic fibers impregnated and bonded with epoxy resins. Polymer endcaps. Anti-static media design
