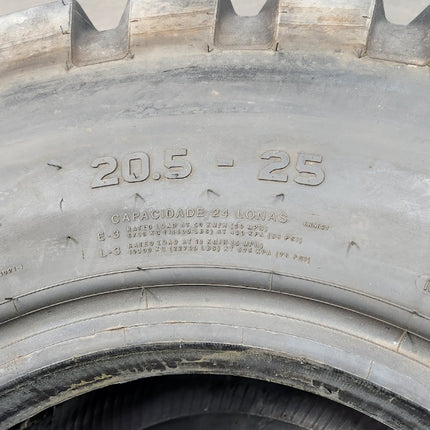

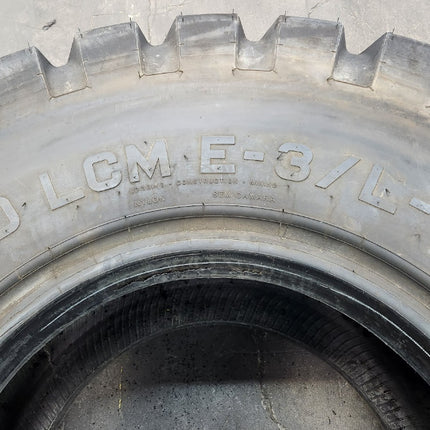

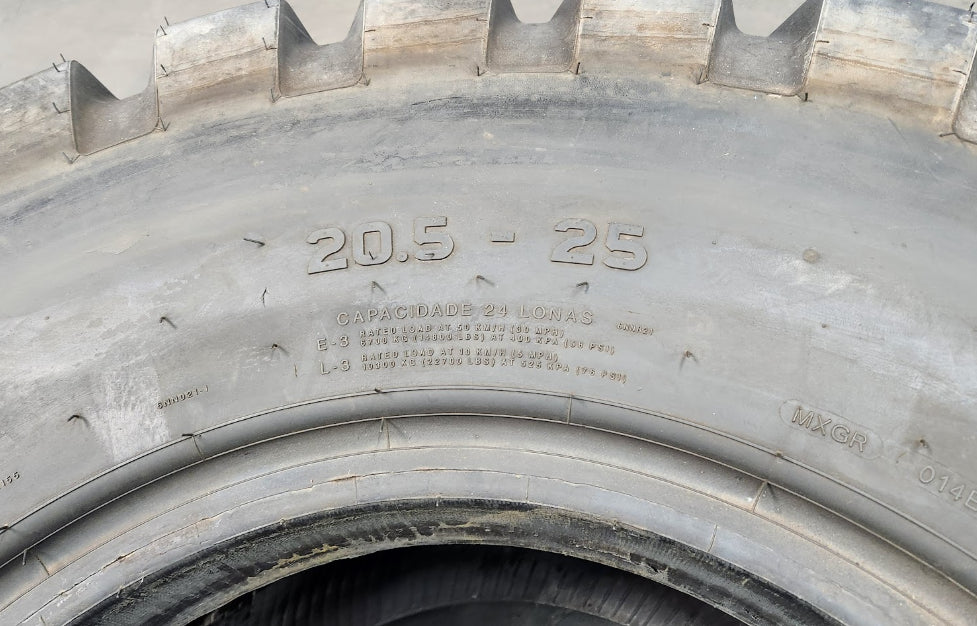

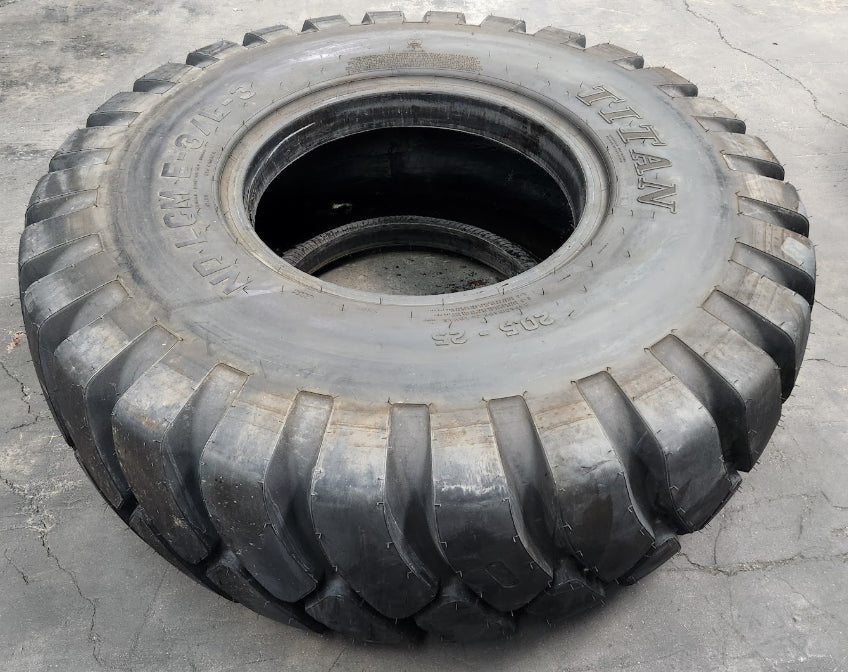

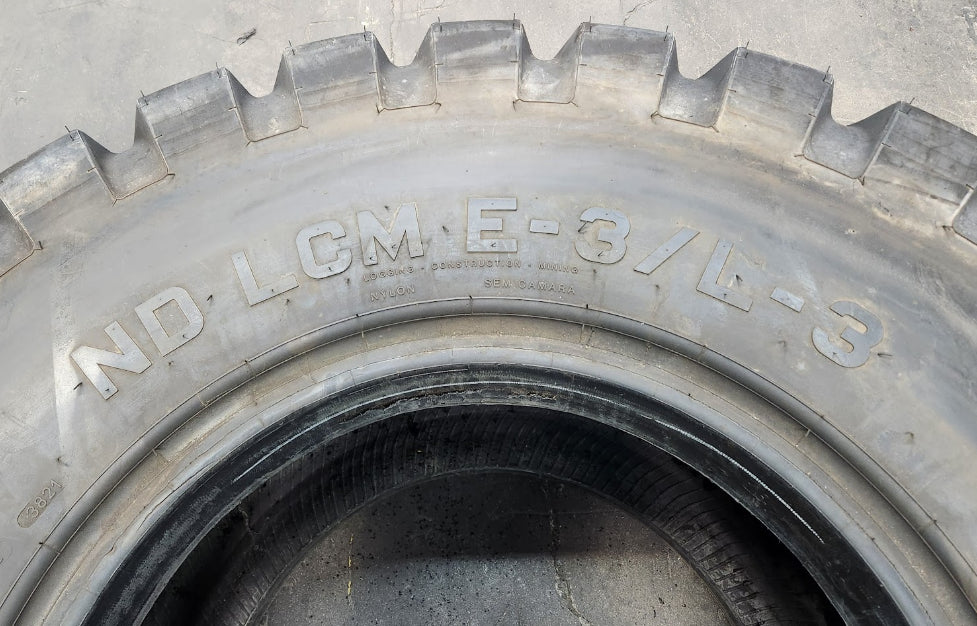

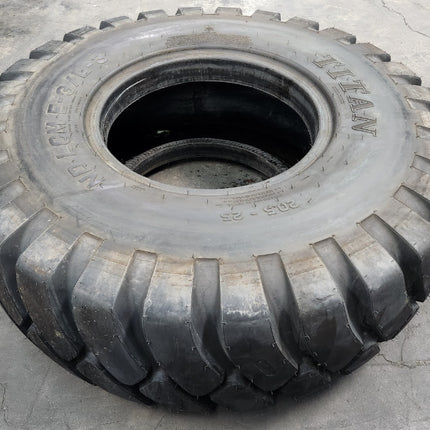

TITAN 20.5-25 Tire ND LCM E3/L3 TL Catalog 6NNR21 20.5x25
20.5X25TITAN 20.5-25 TIRE ND LCM E3/L3 TL 6NNR21

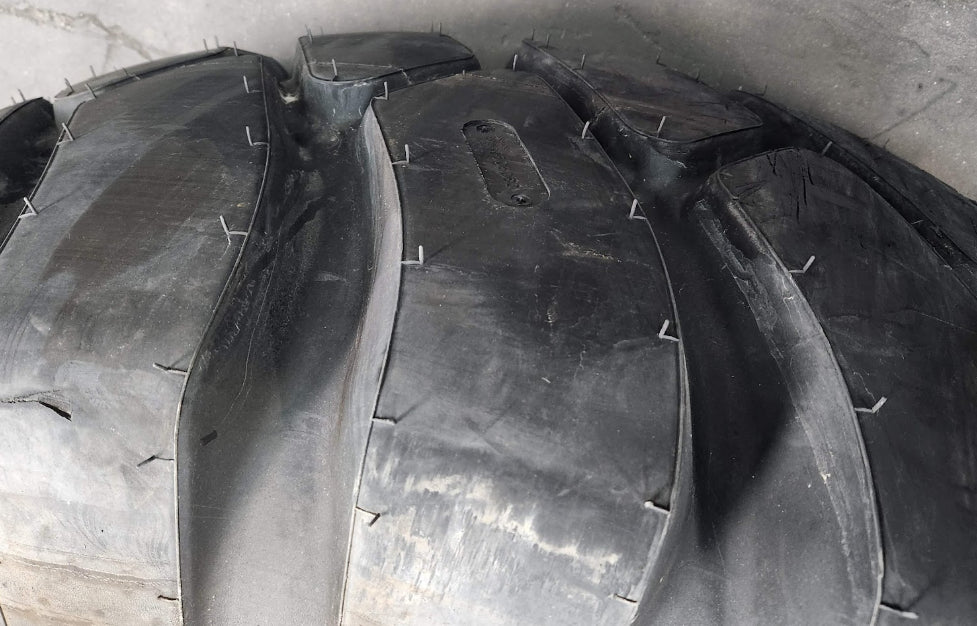

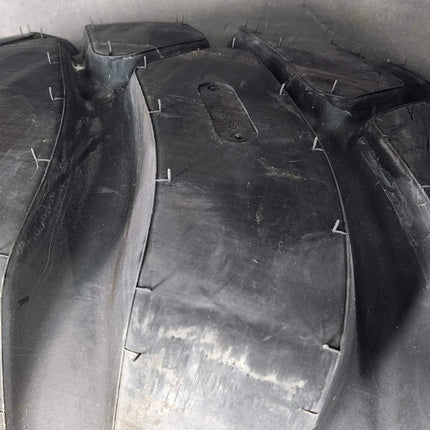

- Non-directional tread design with center riding rib provides excellent all around traction and lateral stability
- Rock service tread design provides resistance to rock damage and long tread life
- CRB - Features Aralon Cut Resistant Breaker construction, which provides increased strength and durability without sacrificing heat resistance
| Name | Tire Size | Catalog Number | Industry Code | Load/ Speed Index | Load Rating | Recom'd Rim Code | Outside Diameter (in) | Overall Width (in) | Static Loaded Width (in) | Static Loaded Radius (in) | Flat Plate Area (in2) | Rated Load @ Inflation (lbs @ Psi) | Industry Code 2 | Load/ Speed Index 2 | Load Rating 2 | Outside Diameter 2 (in) | Overall Width 2 (in) | Static Loaded Width 2 (in) | Flat Plate Area 2 (in2) | Static Loaded Radius 2 (in) | Rated Load @ Inflation 2 (lbs @ Psi) | Tread Depth (32nd in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20.5-25 ND LCM 24PR E3/L3 TL | 20.5-25 | 6NNR21 | E-3 | 174B | 24 | 17.00 / 2.0 | 58.00 | 21.20 | 22.30 | 26.30 | 254.00 | 14800 @ 58 | L-3 | 189A2 | 58.30 | 21.40 | 22.70 | 302.00 | 25.90 | 22700 @ 76 | 35 |
Brand: TITAN
Construction: BIAS
Country of Origin: USA
Diameter: 20.5
Industry Code: E3/L3
Load Index: 174
Load/Speed Index: 174B
Max Load Capacity (Lbs): 14800
Max PSI: 58
Mounted Diameter (Inch): 58
Pattern/Position: E3/L3
Ply/Load Index/Star Rating: 24
Rim Diameter: 25
Rim Size: 25X17
Rim Width: 17
Rolling Circumference: 171.5
Section Width: 21.7
Short Code: 20.5-25 24
Size: 20.5-25
Speed Rating/Speed (MPH): B/30
Static Loaded Radius (inch): 25.5
Style: ND LCM TL
Tread Depth (32nds): 35/32
Tube Type / Tubeless: TUBELESS
Type: E3/L3
Weight (Lbs.): 482.000000
