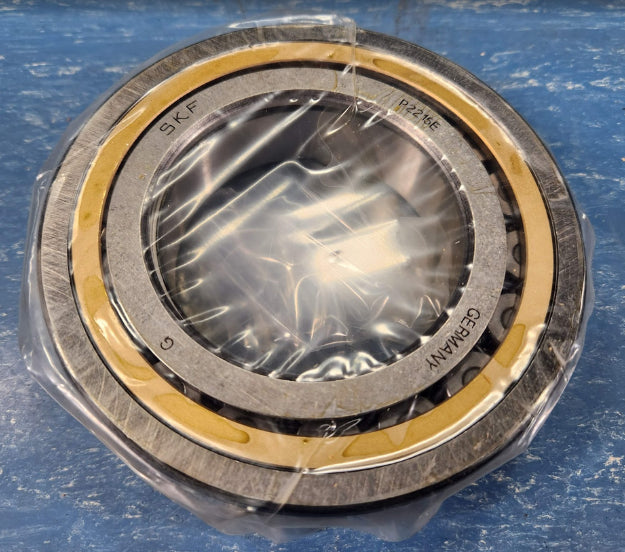

SKF NU 2215 ECML/C3 Cylindrical Roller Bearing Single Row 75x130x31 mm

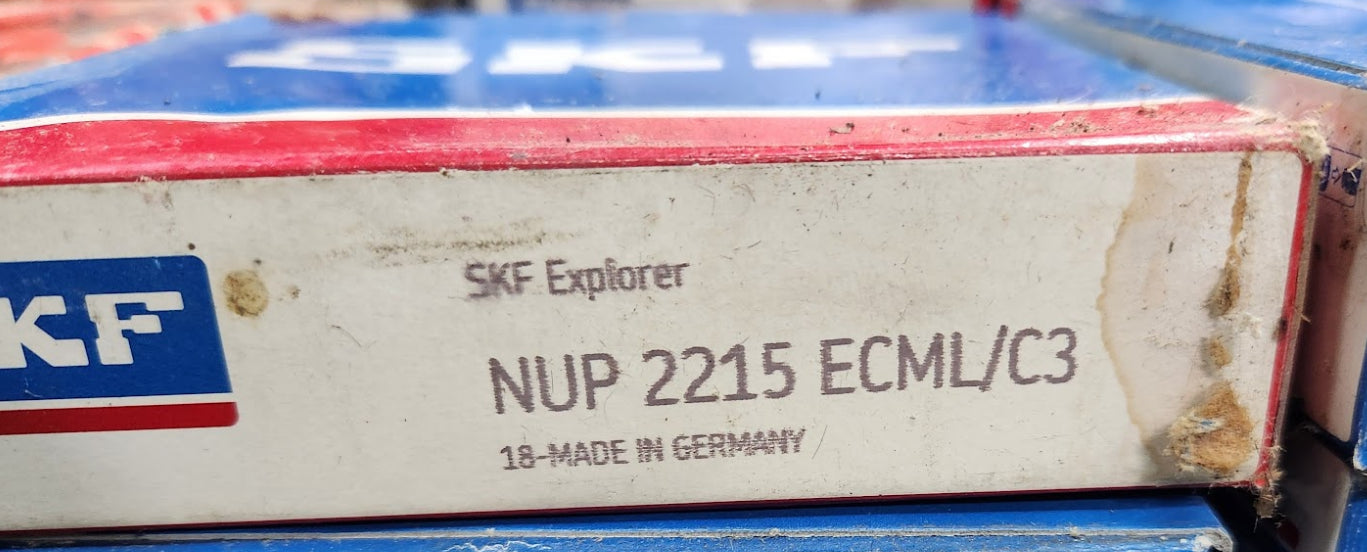

NUP2215 ECML/C3NU 2215 ECML/C3
Single row cylindrical roller bearing, NU design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
Dimensions
Bore diameter 2.953 in
Outside diameter 5.118 in
Width 1.22 in
ABEC
ABEC 1
Bore Type
Cylindrical
Number Of Rows
1
Bore Diameter
75 mm
Outside Diameter
130 mm
Overall Width
31 mm
Ring Separation
O/R assembly separable I/R
Internal Clearance
C3
Flanges
(2) Flanges on outer Ring, Flangeless Inner Ring
Operating Temperature Range
Maximum 302 °F
Lubrication Type
Non-Lubricated
Max Rpm
9500 rpm
Bearing Material
Steel
Cage Material
Brass
Cage Type
Machined metal
Finish Coating
None
Closure Type
Open
Series
22
Weight
3.92 lbs
Manufacturer Upc Number
7316577028464
Material Element
Bearing steel
Locating
None
Product Type
Cylindrical Roller Bearings
